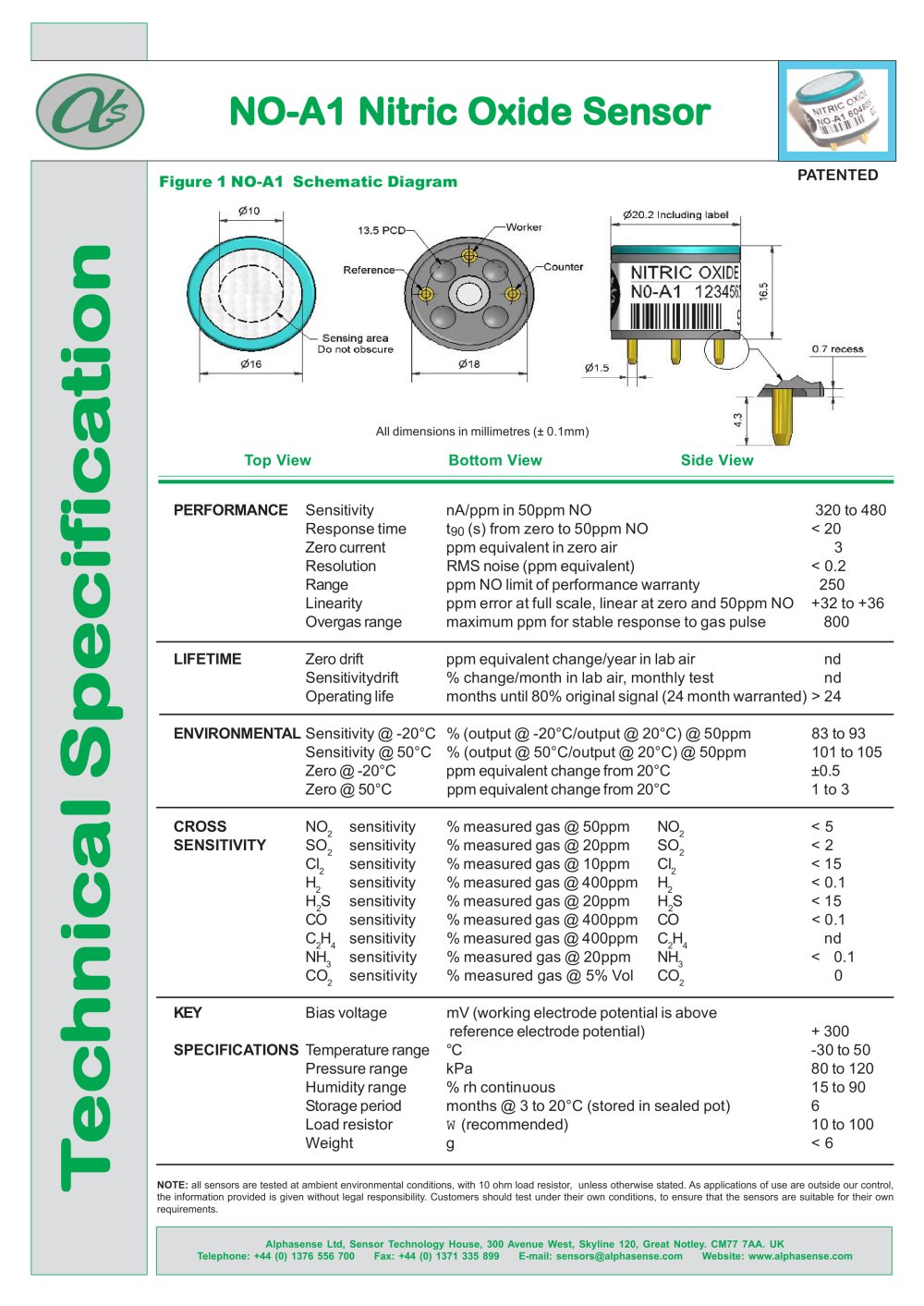

NO-A1 Nitric

Sensor

PATENTED

Figure 1 NO-A1 Schematic Diagram

010

020.2 Including label

Worker

13.5 PCD-

Counter

NITRIC OXIDE N0-A1 123456!

Reference

Sensing area Do noi obscure

0.7 recess

All dimensions in millimetres (± 0.1mm) Bottom View

Top View

Side View


PERFORMANCE	Sensitivity	nA/ppm in 50ppm NO	320 to 480
	Response time	t90 (s) from zero to 50ppm NO	< 20
	Zero current	ppm equivalent in zero air	3
	Resolution	RMS noise (ppm equivalent)	< 0.2
	Range	ppm NO limit of performance warranty	250
	Linearity	ppm error at full scale, linear at zero and 50ppm NO	+32 to +36
	Overgas range	maximum ppm for stable response to gas pulse	800
LIFETIME	Zero drift	ppm equivalent change/year in lab air	nd
	Sensitivitydrift	% change/month in lab air, monthly test	nd
	Operating life	months until 80% original signal (24 month warranted) > 24
ENVIRONMENTAL Sensitivity @ -20°C		% (output @ -20°C/output @ 20°C) @ 50ppm	83 to 93
	Sensitivity @ 50°C	% (output @ 50°C/output @ 20°C) @ 50ppm	101 to 105
	Zero @ -20°C	ppm equivalent change from 20°C	±0.5
	Zero @ 50°C	ppm equivalent change from 20°C	1 to 3
CROSS	NO₂ sensitivity	% measured gas @ 50ppm NO₂	< 5
SENSITIVITY	SO₂ sensitivity	% measured gas @ 20ppm SO₂	< 2
	Cl₂ sensitivity	% measured gas @ 10ppm Cl₂	< 15
	H₂ sensitivity	% measured gas @ 400ppm H₂	< 0.1
	H₂S sensitivity	% measured gas @ 20ppm H₂S	<15
	CO sensitivity	% measured gas @ 400ppm CO	< 0.1
	C₂H₄ sensitivity	% measured gas @ 400ppm C₂H₄	nd
	NH₃ sensitivity	% measured gas @ 20ppm NH₃	< 0.1
	CO₂ sensitivity	% measured gas @ 5% Vol CO₂	0
KEY	Bias voltage	mV (working electrode potential is above
		reference electrode potential)	+ 300
SPECIFICATIONS Temperature range		°C	-30 to 50
	Pressure range	kPa	80 to 120
	Humidity range	% rh continuous	15 to 90
	Storage period	months @ 3 to 20°C (stored in sealed pot)	6
	Load resistor	W (recommended)	10 to 100
	Weight	^g	< 6

NOTE: all sensors are tested at ambient environmental conditions, with 10 ohm load resistor, unless otherwise stated. As applications of use are outside our control, the information provided is given without legal responsibility. Customers should test under their own conditions, to ensure that the sensors are suitable for their own requirements.

Alphasense Ltd, Sensor Technology House, 300 Avenue West, Skyline 120, Great Notley. CM77 7AA. UK Telephone: +44 (0) 1376 556 700 Fax: +44 (0) 1371 335 899 E-mail: sensors@alphasense.com Website: www.alphasense.com
