NDIR CO2 Sensor - 16860 NDIR-A PNDIR-A PNDIR-A PNDIR-A PNDIR-A Perferferferferformance Daormance Daormance Daormance Daormance Datatatatata

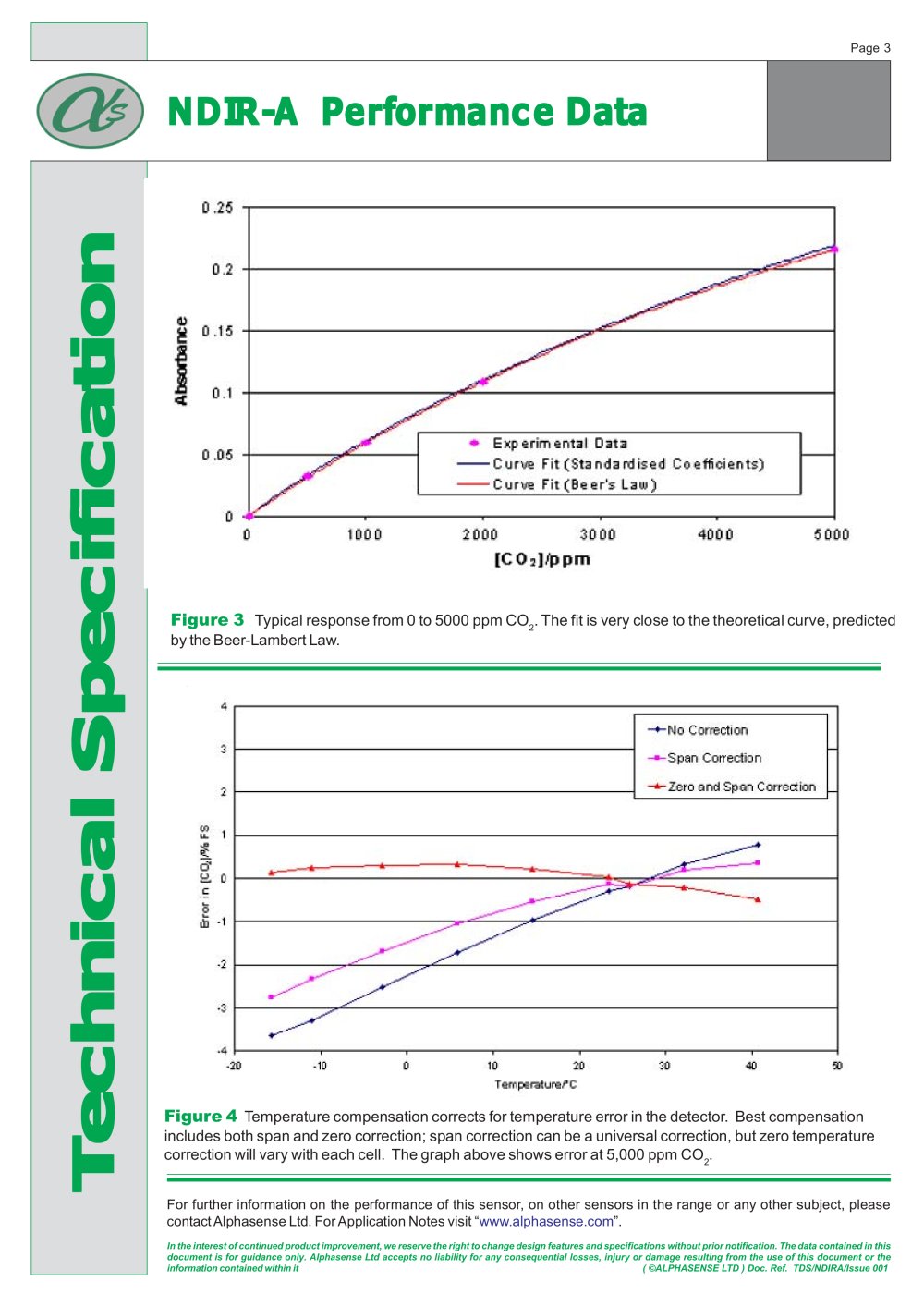

Figure 3

Typical response from 0 to 5000 ppm CO
2 . The fit is very close to the theoretical curve, predictedby the Beer-Lambert Law.

Figure 4

Temperature compensation corrects for temperature error in the detector. Best compensationincludes both span and zero correction; span correction can be a universal correction, but zero temperaturecorrection will vary with each cell. The graph above shows error at 5,000 ppm CO
2 .
TTTTTececececechnical Specifhnical Specifhnical Specifhnical Specifhnical Specificaicaicaicaicationtiontiontiontion For further information on the performance of this sensor, on other sensors in the range or any other subject, pleasecontact Alphasense Ltd. For Application Notes visit “www.alphasense.com”. In the interest of continued product improvement, we reserve the right to change design features and specifications without prior notification. The data contained in thisdocument is for guidance only. Alphasense Ltd accepts no liability for any consequential losses, injury or damage resulting from the use of this document or theinformation contained within it ( ©ALPHASENSE LTD ) Doc. Ref. TDS/NDIRA/Issue 001
