4 to 20 mA Transmitter Boards for

Alphasense "B" Type Toxic & O2-A2 Oxygen Sensors

PATENTED

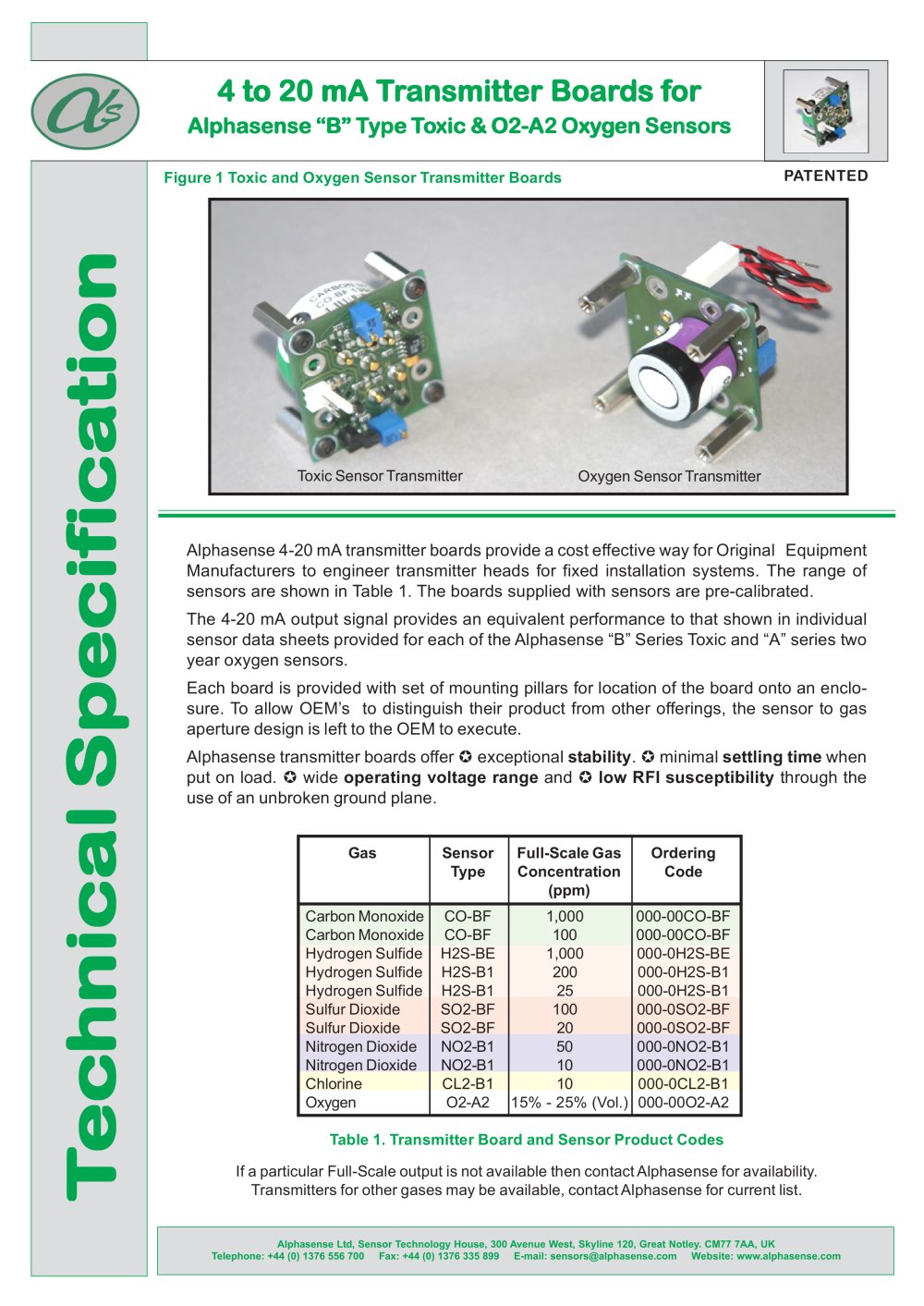

Figure 1 Toxic and Oxygen Sensor Transmitter Boards

Alphasense 4-20 mA transmitter boards provide a cost effective way for Original Equipment Manufacturers to engineer transmitter heads for fixed installation systems. The range of sensors are shown in Table 1. The boards supplied with sensors are pre-calibrated.

The 4-20 mA output signal provides an equivalent performance to that shown in individual sensor data sheets provided for each of the Alphasense "B" Series Toxic and "A" series two year oxygen sensors.

Each board is provided with set of mounting pillars for location of the board onto an enclosure. To allow OEM's to distinguish their product from other offerings, the sensor to gas aperture design is left to the OEM to execute.

Alphasense transmitter boards offer © exceptional stability. © minimal settling time when put on load. © wide operating voltage range and © low RFI susceptibility through the use of an unbroken ground plane.


Gas	Sensor	Full-Scale Gas	Ordering
	Type	Concentration	Code
		(ppm)
Carbon Monoxide	CO-BF	1,000	000-00CO-BF
Carbon Monoxide	CO-BF	100	000-00CO-BF
Hydrogen Sulfide	H2S-BE	1,000	000-0H2S-BE
Hydrogen Sulfide	H2S-B1	200	000-0H2S-B1
Hydrogen Sulfide	H2S-B1	25	000-0H2S-B1
Sulfur Dioxide	SO2-BF	100	000-0SO2-BF
Sulfur Dioxide	SO2-BF	20	000-0SO2-BF
Nitrogen Dioxide	NO2-B1	50	000-0NO2-B1
Nitrogen Dioxide	NO2-B1	10	000-0NO2-B1
Chlorine	CL2-B1	10	000-0CL2-B1
Oxygen	O2-A2	15% - 25% (Vol.)	000-00O2-A2

Table 1. Transmitter Board and Sensor Product Codes

If a particular Full-Scale output is not available then contact Alphasense for availability. Transmitters for other gases may be available, contact Alphasense for current list.

Alphasense Ltd, Sensor Technology House, 300 Avenue West, Skyline 120, Great Notley. CM77 7AA, UK Telephone: +44 (0) 1376 556 700 Fax: +44 (0) 1376 335 899 E-mail: sensors@alphasense.com Website: www.alphasense.com
