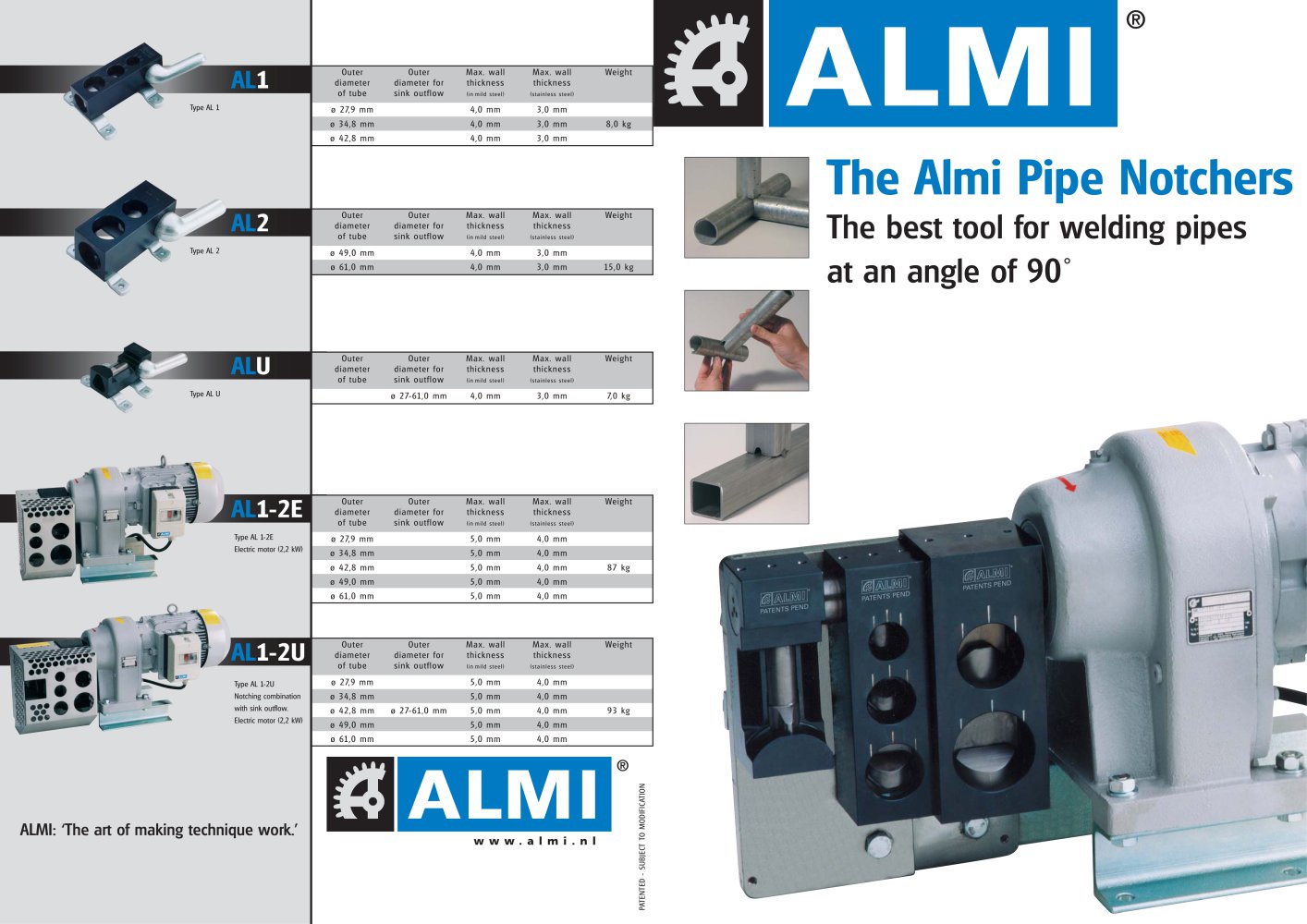

The Almi Pipe Notchers The best tool for welding pipes at an angle of 90° Type AL 1 Type AL 2 Type AL U Type AL 1-2E Electric motor (2,2 kW) Type AL 1-2U Notching combination with sink outflow. Electric motor (2,2 kW) PATENTED - SUBJECT TO MODIFICATION AL1 AL2 ALU AL1-2E AL1-2U ALMI: ‘The art of making technique work.’ Outer diameter of tube ø 27,9 mm ø 34,8 mm ø 42,8 mm Outer diameter for sink outflow Max. wall thickness (in mild steel) 4,0 mm 4,0 mm 4,0 mm Max. wall thickness (stainless steel) 3,0 mm 3,0 mm 3,0 mm Weight 8,0 kg Outer diameter of tube ø 49,0 mm ø 61,0 mm Outer diameter for sink outflow Max. wall thickness (in mild steel) 4,0 mm 4,0 mm Max. wall thickness (stainless steel) 3,0 mm 3,0 mm Weight 15,0 kg Outer diameter of tube Outer diameter for sink outflow ø 27-61,0 mm Max. wall thickness (in mild steel) 4,0 mm Max. wall thickness (stainless steel) 3,0 mm Weight 7,0 kg Outer diameter of tube ø 27,9 mm ø 34,8 mm ø 42,8 mm ø 49,0 mm ø 61,0 mm Outer diameter for sink outflow Max. wall thickness (in mild steel) 5,0 mm 5,0 mm 5,0 mm 5,0 mm 5,0 mm Max. wall thickness (stainless steel) 4,0 mm 4,0 mm 4,0 mm 4,0 mm 4,0 mm Weight 87 kg Outer diameter of tube ø 27,9 mm ø 34,8 mm ø 42,8 mm ø 49,0 mm ø 61,0 mm Outer diameter for sink outflow ø 27-61,0 mm Max. wall thickness (in mild steel) 5,0 mm 5,0 mm 5,0 mm 5,0 mm 5,0 mm Max. wall thickness (stainless steel) 4,0 mm 4,0 mm 4,0 mm 4,0 mm 4,0 mm Weight 93 kg
