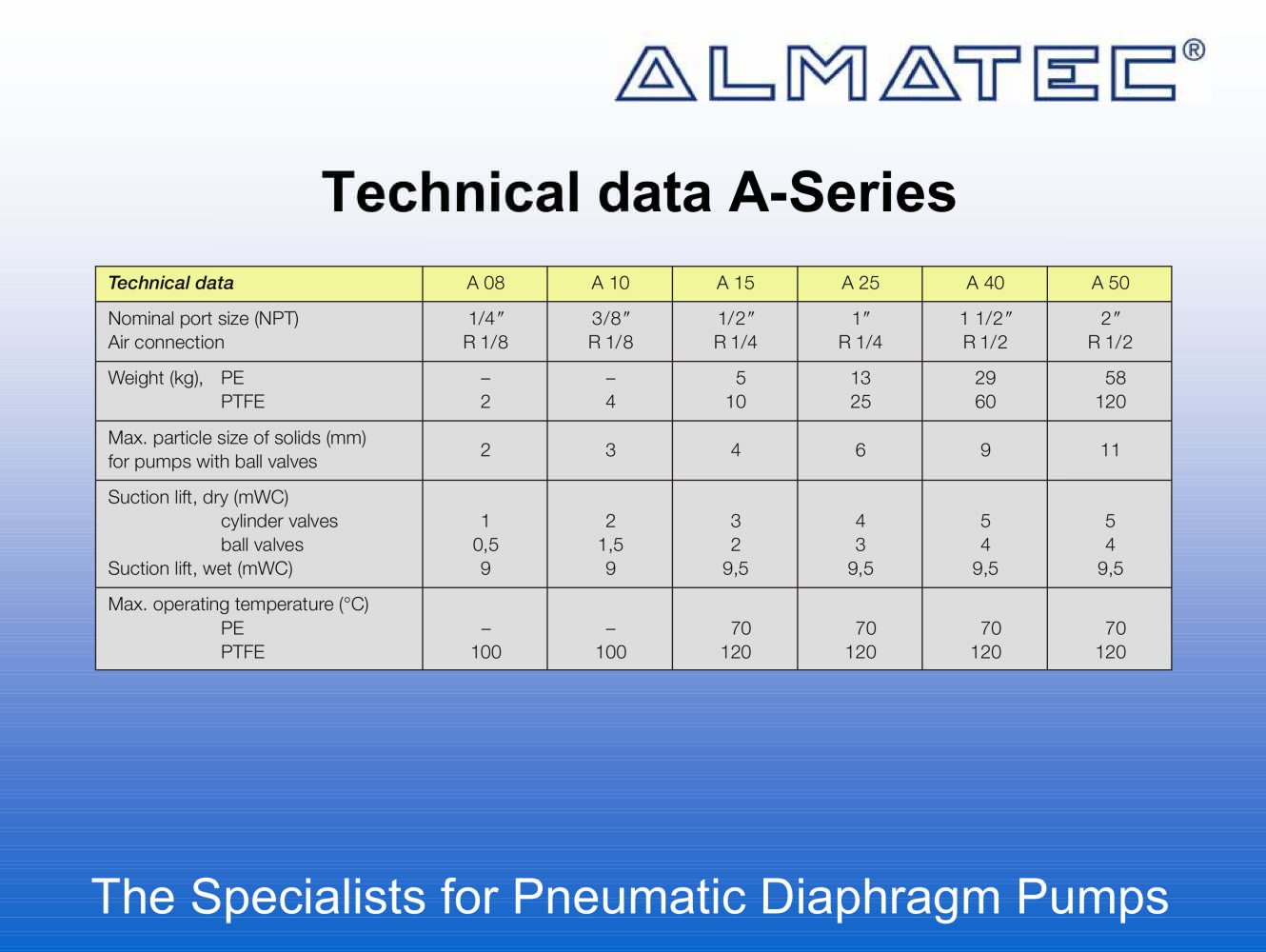

Technical data A-Series
Technical data
A 08
A 10
A 15
A 25
A 40
A 50
Nominal port size (NPT) Air connection
1/4" R1/8
3/8"
R 1/8
1/2 " R 1/4
1"
R 1/4
1 1/2"
R 1/2
2"
R 1/2
Weight (kg), PE
PTFE
2
4
5 10
13 25
29 60
58 120
Max. particle size of solids (mm)
for pumps with ball valves
2
3
4
6
9
11
Suction lift, dry (mWC)
cylinder valves
ball valves Suction lift, wet (mWC)
1
0,5 9
2
1,5
9
3 2
9,5
4 3
9,5
5 4
9,5
5 4
9,5
Max. operating temperature (°C) PE PTFE
100
100
70
120
70 120
70 120
70 120
Specialists for Pneumatic Diaphragm Pump
