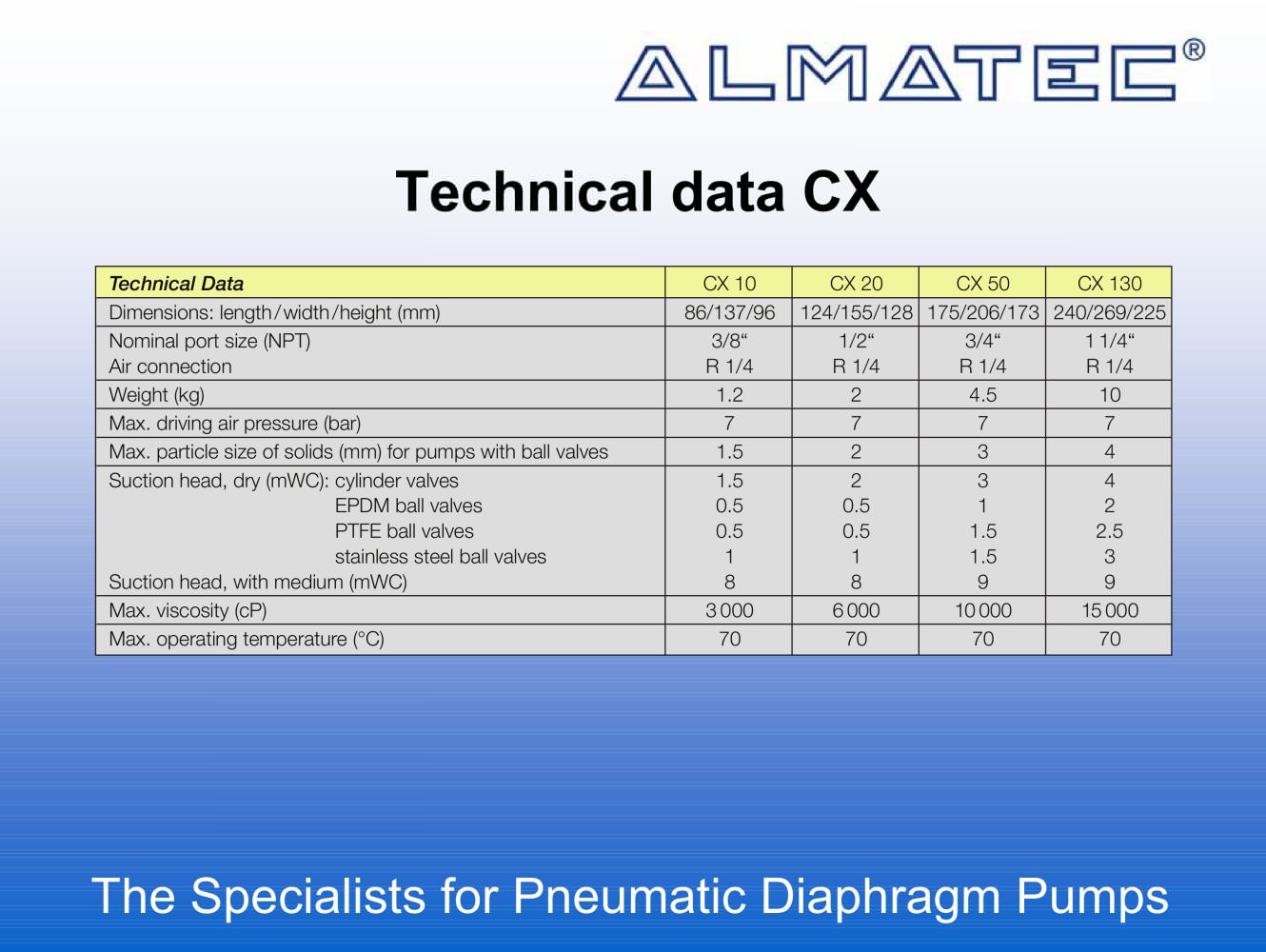

Technical data CX


	*Technical Data*	CX 10	CX 20	CX 50	CX 130
	Dimensions: length/width/height (mm)	86/137/96	124/155/128	175/206/173	240/269/225
	Nominal port size (NPT) Air connection	3/8" R 1/4	1/2" R 1/4	3/4" R 1/4	1 1/4" R 1/4
	Weight (kg)	1.2	2	4.5	10
	Max. driving air pressure (bar)	7	7	7	7
	Max. particle size of solids (mm) for pumps with ball valves	1.5	2	3	4
	Suction head, dry (mWC): cylinder valves EPDM ball valves PTFE ball valves stainless steel ball valves Suction head, with medium (mWC)	1.5 0.5 0.5 1 8	2 0.5 0.5 1 8	3 1 1.5 1.5 9	4 2 2.5 3 9
	Max. viscosity (cP)	3 000	6000	10000	15 000
	Max. operating temperature (°C)	70	70	70	70

The

Specialists for Pneumatic Diaphragm Pump
