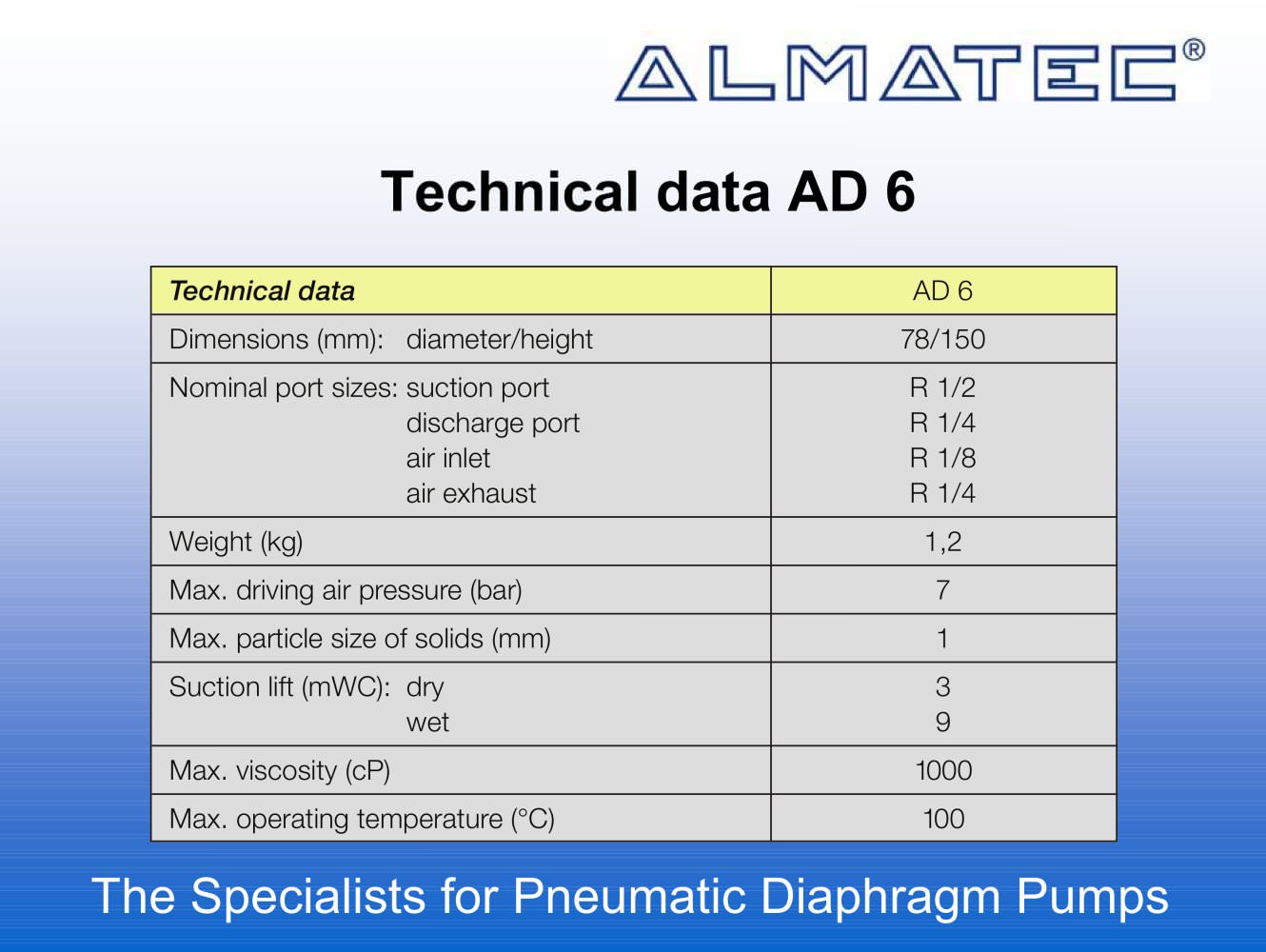

Technical data AD 6

Technical data AD 6 Dimensions (mm):diameter/height78/150Nominal port sizes: suction portR 1/2discharge portR 1/4 air inletR 1/8 air exhaustR 1/4 Weight (kg)1,2 Max. driving air pressure (bar)7 Max. particle size of solids (mm)1Suction lift (mWC):dry3 wet9 Max. viscosity (cP)1000 Max. operating temperature (°C)100

The Specialists for Pneumatic Diaphragm Pumps
