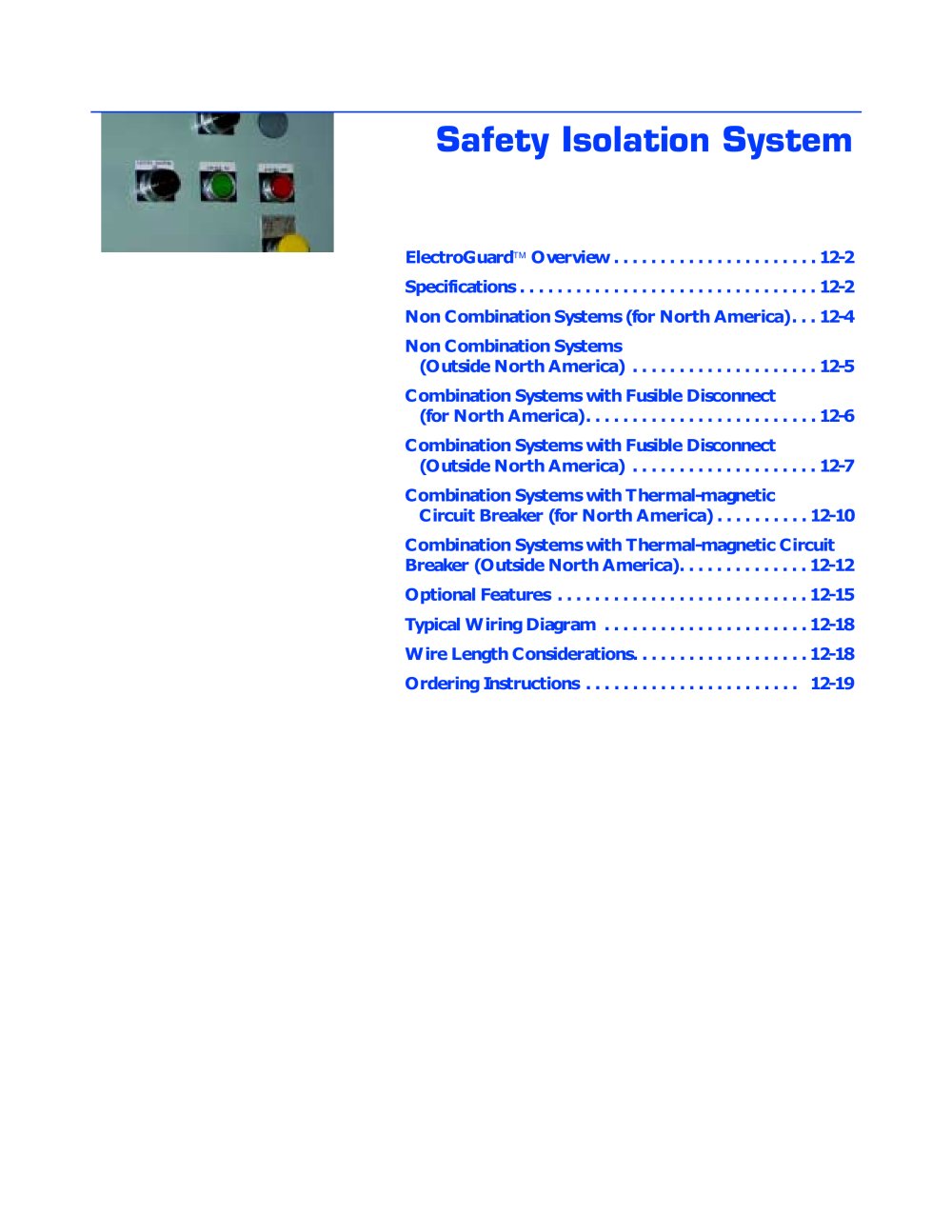

ElectroGuard Overview . . . . . . . . . . . . . . . . . . . . . .12-2Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-2Non Combination Systems (for North America). . .12-4Non Combination Systems (Outside North America) . . . . . . . . . . . . . . . . . . . .12-5Combination Systems with Fusible Disconnect (for North America). . . . . . . . . . . . . . . . . . . . . . . . .12-6Combination Systems with Fusible Disconnect (Outside North America) . . . . . . . . . . . . . . . . . . . .12-7Combination Systems with Thermal-magnetic Circuit Breaker (for North America) . . . . . . . . . .12-10Combination Systems with Thermal-magnetic Circuit Breaker (Outside North America). . . . . . . . . . . . . .12-12Optional Features . . . . . . . . . . . . . . . . . . . . . . . . . . .12-15Typical Wiring Diagram . . . . . . . . . . . . . . . . . . . . . .12-18Wire Length Considerations. . . . . . . . . . . . . . . . . . .12-18 Ordering Instructions . . . . . . . . . . . . . . . . . . . . . . . 12-19 >
Open the catalog to page 1Status Communication Capability to a Remote PLC ?Optional Remote I/O via Flex modules. Communication can be via the DeviceNet communication platform or the Remote I/O communication platform. Available from 23-1200 Amperes. > Approvals C UL US Listed Industrial Control Panel; TUV Rheinland certified; CE marked for all applicable directivesStandardsIEC/EN 60204-1; IEC/EN 60439-1; Category 4 to International Standard EN 954-1/ISO 13849-1; 98/37/EC Machinery Directive; 89/336/EC EMC Directive; 73/23/EC Low Voltage Directive; Fulfils the function of an energy isolating device in accordance with...
Open the catalog to page 22IC1IC To Loads Trans.GrdVoltage Decay Relays (VDR)To Motor Controllers GCIncoming3 PhasePowerH2H1X2X1 > Control Power Disconnecting Means/Branch Circuit Protection Remote Lockout StationOffOnMechanically Interlocked I CGC I C1 VDR 2IC1IC 1IC, 2IC, & GC are mechanically and electrically interlockedSystem Isolated (*)(*) = OnӔ when the Remote Lockout Station switch is OffӔ GCGC GC2 2IC1IC > Available factory installed within the ElectroGuard as an option. Optional Pneumatic Isolation Module >
Open the catalog to page 3Optional Time Delay Feature. The Safety Isolation System may be ordered with a factory set time delay feature (30 seconds) in order to allow time for the machine operator to shut-down drives or other equipment that requires a controlled stop, after the operating handle on a Remote Lockout Station has been moved to the OffӔ position. Consult your local Rockwell Automation sales office for other time settings. Bus Type: Copper with tin plating. Consult factory for other types of bussing. >
Open the catalog to page 4Power fuses are not included with the disconnect switch. Select power fuses in accordance with applicable local codes. Optional Time Delay Feature. The Safety Isolation System may be ordered with a factory set time delay feature (30 seconds) in order to allow time for the machine operator to shut-down drives or other equipment that requires a controlled stop, after the operating handle on a Remote Lockout Station has been moved to the OffӔ position. Consult your local Rockwell Automation sales office for other time settings. >
Open the catalog to page 62032*-C0630P ⊗ -30B2032*-C0630H ⊗ -30B2032- 0630H ⊗ -30B2032*-C0630W ⊗ -30B Power fuses are not included with the disconnect switch. Select power fuses in accordance with applicable local codes. Optional Time Delay Feature. The Safety Isolation System may be ordered with a factory set time delay feature (30 seconds) in order to allow time for the machine operator to shut-down drives or other equipment that requires a controlled stop, after the operating handle on a Remote Lockout Station has been moved to the OffӔ position. See next page for instructions on how to order the optional time...
Open the catalog to page 8Power fuses are not included with the disconnect switch. Select power fuses in accordance with applicable local codes. Optional Time Delay Feature. The Safety Isolation System may be ordered with a factory set time delay feature (30 seconds) in order to allow time for the machine operator to shut-down drives or other equipment that requires a controlled stop, after the operating handle on a Remote Lockout Station has been moved to the OffӔ position. Consult your local Rockwell Automation sales office for other time settings. Bus Type: Copper with tin plating. Consult factory for other types...
Open the catalog to page 92033-A0300A ⊗ -512033-A0300J ⊗ -512033- 0300J ⊗ -512033-A0300F ⊗ -512033-A0300C ⊗ -51 Optional Time Delay Feature. The Safety Isolation System may be ordered with a factory set time delay feature (30 seconds) in order to allow time for the machine operator to shut-down drives or other equipment that requires a controlled stop, after the operating handle on a Remote Lockout Station has been moved to the OffӔ position. See next page for instructions on how to order the optional time delay feature. Consult your local Rockwell Automation sales office for other time settings. >
Open the catalog to page 10Optional Time Delay Feature. The Safety Isolation System may be ordered with a factory set time delay feature (30 seconds) in order to allow time for the machine operator to shut-down drives or other equipment that requires a controlled stop, after the operating handle on a Remote Lockout Station has been moved to the OffӔ position. Consult your local Rockwell Automation sales office for other time settings. >
Open the catalog to page 11Ampere Rating (AC-3)3-Phase Max. kW Rating (50Hz)Catalogue Number 230V400V500V600VIP 30 EnclosureIP 54 EnclosureIP 54 Motor Control Centre Type Enclosure (w/bussing)IP 65 Enclosure 2033-C0110P > ⊗ -53K2033-C0110H > ⊗ -53K2033- 0110H > ⊗ -53K2033-C0110W > ⊗ -53K 110---75 ---100 2033-C0110P > ⊗ -55K2033-C0110H > ⊗ -55K2033- 0110H > ⊗ -55K2033-C0110W > ⊗ -55K 2033-C0180P > ⊗ -49K2033-C0180H > ⊗ -49K2033- 0180H > ⊗ -49K2033-C0180W > ⊗ -49K 45--- 2033-C0180P > ⊗ -50K2033-C0180H > ⊗ -50K2033- 0180H > ⊗ -50K2033-C0180W > ⊗ -50K 55--- 2033-C0180P > ⊗ -51K2033-C0180H > ⊗ -51K2033- 0180H > ⊗...
