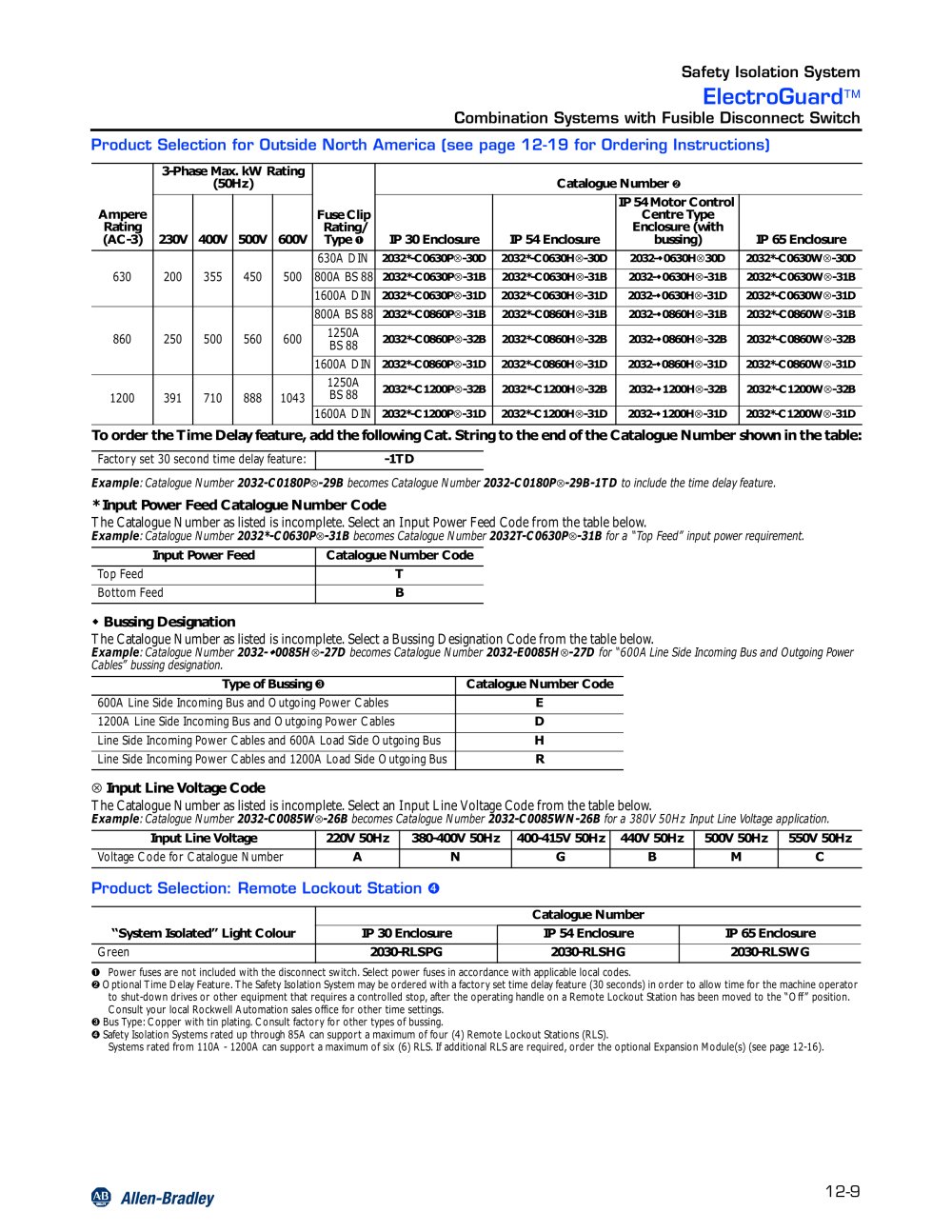

Safety Isolation System

Safety Isolation System - 5071 ElectroGuard

Combination Systems with Fusible Disconnect SwitchProduct Selection for Outside North America (see page 12-19 for Ordering Instructions)

Catalogue Number Ampere Rating (AC-3)3-Phase Max. kW Rating (50Hz)Fuse Clip Rating/Type 230V400V500V600VIP 30 EnclosureIP 54 EnclosureIP 54 Motor Control Centre Type Enclosure (with bussing)IP 65 Enclosure

2032*-C0630P ⊗ -30D2032*-C0630H ⊗ -30D2032- 0630H ⊗ 30D2032*-C0630W ⊗ -30D

630200355450500630A DIN 800A BS 88

2032*-C0630P ⊗ -31B2032*-C0630H ⊗ -31B2032- 0630H ⊗ -31B2032*-C0630W ⊗ -31B

1600A DIN

2032*-C0630P ⊗ -31D2032*-C0630H ⊗ -31D2032- 0630H ⊗ -31D2032*-C0630W ⊗ -31D 2032*-C0860P ⊗ -31B2032*-C0860H ⊗ -31B2032- 0860H ⊗ -31B2032*-C0860W ⊗ -31B

860250500560600800A BS 88 1250ABS 88

2032*-C0860P ⊗ -32B2032*-C0860H ⊗ -32B2032- 0860H ⊗ -32B2032*-C0860W ⊗ -32B

1600A DIN

2032*-C0860P ⊗ -31D2032*-C0860H ⊗ -31D2032- 0860H ⊗ -31D2032*-C0860W ⊗ -31D 2032*-C1200P ⊗ -32B2032*-C1200H ⊗ -32B2032- 1200H ⊗ -32B2032*-C1200W ⊗ -32B

120039171088810431250ABS 88 1600A DIN

2032*-C1200P ⊗ -31D2032*-C1200H ⊗ -31D2032- 1200H ⊗ -31D2032*-C1200W ⊗ -31D

To order the Time Delay feature, add the following Cat. String to the end of the Catalogue Number shown in the table:

Factory set 30 second time delay feature: -1TDInput Power FeedCatalogue Number Code Example : Catalogue Number 2032-C0180P

⊗

-29B becomes Catalogue Number 2032-C0180P

⊗

-29B-1TD to include the time delay feature.

* Input Power Feed Catalogue Number Code The Catalogue Number as listed is incomplete. Select an Input Power Feed Code from the table below.

Example : Catalogue Number 2032*-C0630P

⊗

-31B becomes Catalogue Number 2032T-C0630P

⊗

-31B for a “Top Feed” input power requirement. Top Feed T Bottom Feed BType of Bussing

Bussing Designation The Catalogue Number as listed is incomplete. Select a Bussing Designation Code from the table below.

Example : Catalogue Number 2032- 0085H

⊗

-27D becomes Catalogue Number 2032-E0085H

⊗

-27D for “600A Line Side Incoming Bus and Outgoing Power Cables” bussing designation. Catalogue Number Code 600A Line Side Incoming Bus and Outgoing Power Cables E 1200A Line Side Incoming Bus and Outgoing Power Cables D Line Side Incoming Power Cables and 600A Load Side Outgoing Bus H Line Side Incoming Power Cables and 1200A Load Side Outgoing Bus RInput Line Voltage220V 50Hz380-400V 50Hz400-415V 50Hz440V 50Hz500V 50Hz550V 50Hz

⊗ Input Line Voltage Code The Catalogue Number as listed is incomplete. Select an Input Line Voltage Code from the table below.

Example : Catalogue Number 2032-C0085W

⊗

-26B becomes Catalogue Number 2032-C0085WN-26B for a 380V 50Hz Input Line Voltage application. Voltage Code for Catalogue Number ANGBMC“System Isolated” Light ColourCatalogue NumberIP 30 EnclosureIP 54 EnclosureIP 65 Enclosure

Product Selection: Remote Lockout Station

Green 2030-RLSPG2030-RLSHG2030-RLSWG

Power fuses are not included with the disconnect switch. Select power fuses in accordance with applicable local codes. Optional Time Delay Feature. The Safety Isolation System may be ordered with a factory set time delay feature (30 seconds) in order to allow time for the machine operator to shut-down drives or other equipment that requires a controlled stop, after the operating handle on a Remote Lockout Station has been moved to the “Off” position. Consult your local Rockwell Automation sales office for other time settings. Bus Type: Copper with tin plating. Consult factory for other types of bussing. Safety Isolation Systems rated up through 85A can support a maximum of four (4) Remote Lockout Stations (RLS).Systems rated from 110A - 1200A can support a maximum of six (6) RLS. If additional RLS are required, order the optional Expansion Module(s) (see page 12-16).
