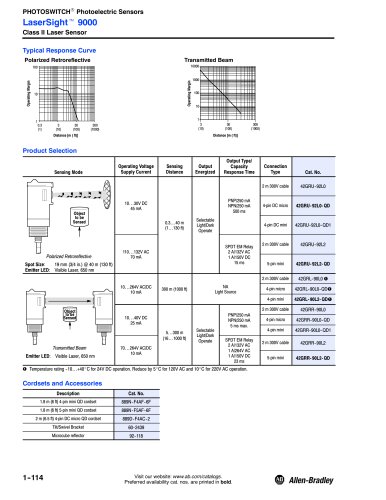

Photoelectric Sensors - 124 / 334 Pages

PHOTOSWITCH® Photoelectric Sensors

LaserSight 9000

Class II Laser Sensor

Typical Response Curve

Polarized Retroreflective

0.3 3 30 300

(1) (10) (100) (1000)

Distance [m (ft)]

Transmitted Beam

10000f

Distance [m (ft)]

Product Selection

Sensing Mode

Operating Voltage

Supply Current

Sensing

Distance

Output

Energized

Output Type/

Capacity

Response Time

Connection

Type

Cat. No.

2 m 300V cable

42GRU-92L0

H H H

10...30V DC

45 mA

Object

to be

Sensed

Polarized Retroreflective

Spot Size: 19 mm (3/4 in.) @ 40 m (130 ft)

Emitter LED: Visible Laser, 650 nm

PNP/250 mA

NPN/250 mA

500 ms

4-pin DC micro

42GRU-92L0-QD

0.3...40 m

(1...130 ft)

Selectable

Light/Dark

Operate

4-pin DC mini

42GRU-92L0-QD1

110...132V AC

70 mA

SPDT EM Relay

2 A/132V AC

1 A/150V DC

15 ms

2 m 300V cable

42GRU-92L2

5-pin mini

42GRU-92L2-QD

2 m 300V cable

42GRL-90L0 O

Object

to'be

Sensed

10...264V AC/DC

10 mA

300 m (1000 ft)

NA

Light Source

4-pin micro

42GRL-90L0-QDO

4-pin mini

42GRL-90L2-QDO

10...40V DC

25 mA

5...300 m

(16... 1000 ft)

Selectable

Light/Dark

Operate

Transmitted Beam

Emitter LED: Visible Laser, 650 nm

70...264V AC/DC

10 mA

2 m 300V cable

42GRR-90L0

PNP/250 mA

NPN/250 mA

5 ms max.

4-pin micro

42GRR-90L0-QD

4-pin mini

42GRR-90L0-QD1

SPDT EM Relay

2 A/132V AC

1 A/264VAC

1 A/150V DC

23 ms

2 m 300V cable

42GRR-90L2

5-pin mini

42GRR-90L2-QD

O Temperature rating -10...+40°C for 24V DC operation. Reduce by 5°C for 120V AC and 10°C for 220V AC operation.

Cordsets and Accessories

Description

Cat. No.

1.8 m (6 ft) 4-pin mini QD cordset

889N-F4AF-6F

1.8 m (6 ft) 5-pin mini QD cordset

889N-F5AF-6F

2 m (6.5 ft) 4-pin DC micro QD cordset

889D-F4AC-2

Tilt/Swivel Bracket

60-2439

Microcube reflector

92-118

1-114

Visit our website: www.ab.com/catalogs.

Preferred availability cat. nos. are printed in bold.

@ Allen-Bradley
