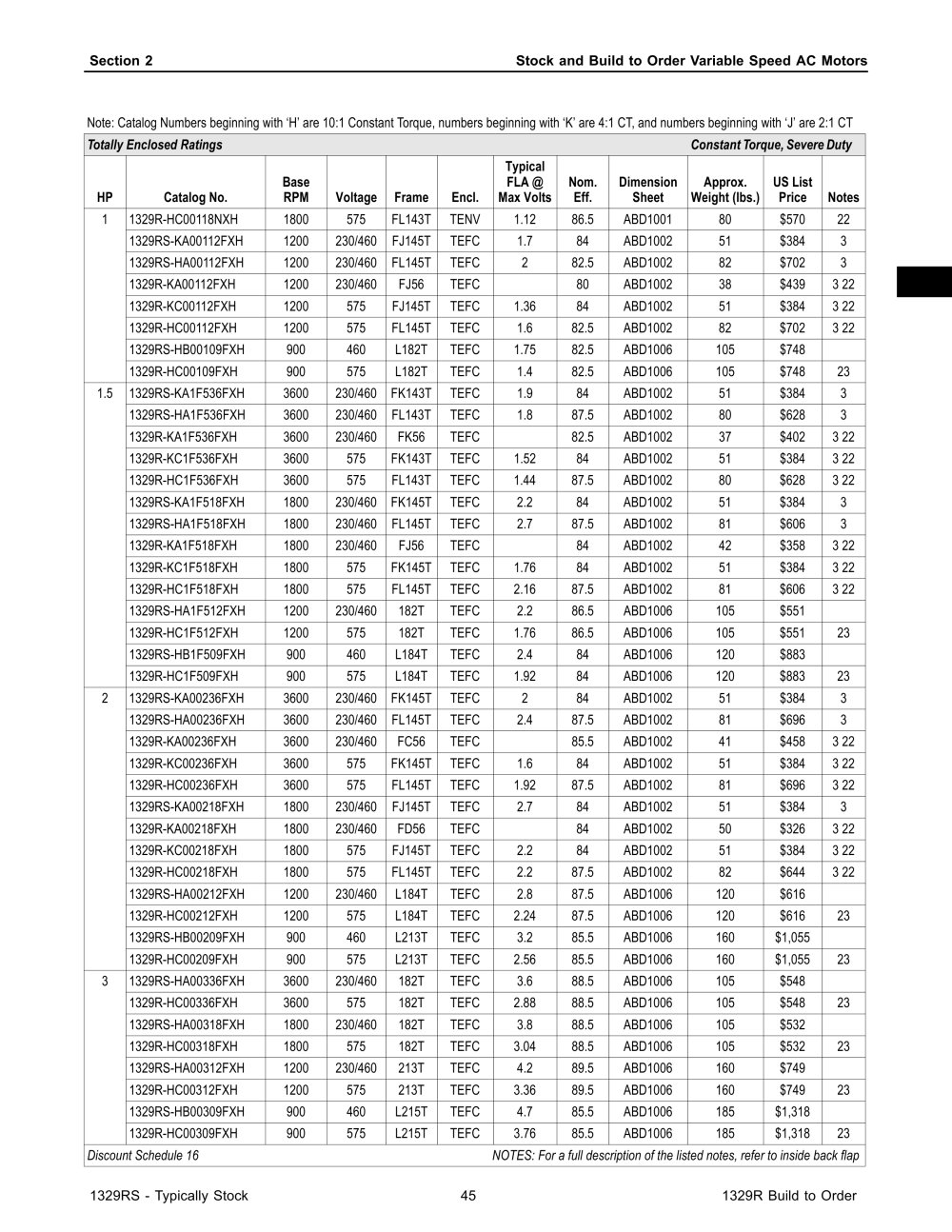

Section 2

Stock and Build to Order Variable Speed AC Motors

Note: Catalog Numbers beginning with 'H' are 10:1 Constant Torque, numbers beginning with 'K' are 4:1 CT, and numbers beginning with 'J' are 2:1 CT Totally Enclosed Ratings Constant Torque, Severe Duty


HP	Catalog No.	Base RPM	Voltage	Frame	End.	Typical FLA@ Max Volts	Nom. Eff.	Dimension Sheet	Approx. Weight (lbs.)	US List Price	Notes
1	1329R-HC00118NXH	1800	575	FL143T	TENV	1.12	86 5	ABD1001	80	$570	22
	1329RS-KA00112FXH	1200	230/460	FJ145T	TEFC	1.7	84	ABD1002	51	$384	3
	1329RS-HA00112FXH	1200	230/460	FL145T	TEFC	2	82 5	ABD1002	82	$702	3
	1329R-KA00112FXH	1200	230/460	FJ56	TEFC		80	ABD1002	38	$439	3 22
	1329R-KC00112FXH	1200	575	FJ145T	TEFC	1.36	84	ABD1002	51	$384	3 22
	1329R-HC00112FXH	1200	575	FL145T	TEFC	1.6	82 5	ABD1002	82	$702	3 22
	1329RS-HB00109FXH	900	460	L182T	TEFC	1.75	82 5	ABD1006	105	$748
	1329R-HC00109FXH	900	575	L182T	TEFC	1.4	82 5	ABD1006	105	$748	23
1.5	1329RS-KA1F536FXH	3600	230/460	FK143T	TEFC	1.9	84	ABD1002	51	$384	3
	1329RS-HA1F536FXH	3600	230/460	FL143T	TEFC	1.8	87 5	ABD1002	80	$628	3
	1329R-KA1F536FXH	3600	230/460	FK56	TEFC		82 5	ABD1002	37	$402	3 22
	1329R-KC1F536FXH	3600	575	FK143T	TEFC	1.52	84	ABD1002	51	$384	3 22
	1329R-HC1F536FXH	3600	575	FL143T	TEFC	1.44	87 5	ABD1002	80	$628	3 22
	1329RS-KA1F518FXH	1800	230/460	FK145T	TEFC	2.2	84	ABD1002	51	$384	3
	1329RS-HA1F518FXH	1800	230/460	FL145T	TEFC	2.7	87 5	ABD1002	81	$606	3
	1329R-KA1F518FXH	1800	230/460	FJ56	TEFC		84	ABD1002	42	$358	3 22
	1329R-KC1F518FXH	1800	575	FK145T	TEFC	1.76	84	ABD1002	51	$384	3 22
	1329R-HC1F518FXH	1800	575	FL145T	TEFC	2.16	87 5	ABD1002	81	$606	3 22
	1329RS-HA1F512FXH	1200	230/460	182T	TEFC	2.2	86 5	ABD1006	105	$551
	1329R-HC1F512FXH	1200	575	182T	TEFC	1.76	86 5	ABD1006	105	$551	23
	1329RS-HB1F509FXH	900	460	L184T	TEFC	2.4	84	ABD1006	120	$883
	1329R-HC1F509FXH	900	575	L184T	TEFC	1.92	84	ABD1006	120	$883	23
2	1329RS-KA00236FXH	3600	230/460	FK145T	TEFC	2	84	ABD1002	51	$384	3
	1329RS-HA00236FXH	3600	230/460	FL145T	TEFC	2.4	87 5	ABD1002	81	$696	3
	1329R-KA00236FXH	3600	230/460	FC56	TEFC		85 5	ABD1002	41	$458	3 22
	1329R-KC00236FXH	3600	575	FK145T	TEFC	1.6	84	ABD1002	51	$384	3 22
	1329R-HC00236FXH	3600	575	FL145T	TEFC	1.92	87 5	ABD1002	81	$696	3 22
	1329RS-KA00218FXH	1800	230/460	FJ145T	TEFC	2.7	84	ABD1002	51	$384	3
	1329R-KA00218FXH	1800	230/460	FD56	TEFC		84	ABD1002	50	$326	3 22
	1329R-KC00218FXH	1800	575	FJ145T	TEFC	2.2	84	ABD1002	51	$384	3 22
	1329R-HC00218FXH	1800	575	FL145T	TEFC	2.2	87 5	ABD1002	82	$644	3 22
	1329RS-HA00212FXH	1200	230/460	L184T	TEFC	2.8	87 5	ABD1006	120	$616
	1329R-HC00212FXH	1200	575	L184T	TEFC	2.24	87 5	ABD1006	120	$616	23
	1329RS-HB00209FXH	900	460	L213T	TEFC	3.2	85 5	ABD1006	160	$1,055
	1329R-HC00209FXH	900	575	L213T	TEFC	2.56	85 5	ABD1006	160	$1,055	23
3	1329RS-HA00336FXH	3600	230/460	182T	TEFC	3.6	88 5	ABD1006	105	$548
	1329R-HC00336FXH	3600	575	182T	TEFC	2.88	88 5	ABD1006	105	$548	23
	1329RS-HA00318FXH	1800	230/460	182T	TEFC	3.8	88 5	ABD1006	105	$532
	1329R-HC00318FXH	1800	575	182T	TEFC	3.04	88 5	ABD1006	105	$532	23
	1329RS-HA00312FXH	1200	230/460	213T	TEFC	4.2	89 5	ABD1006	160	$749
	1329R-HC00312FXH	1200	575	213T	TEFC	3.36	89 5	ABD1006	160	$749	23
	1329RS-HB00309FXH	900	460	L215T	TEFC	4.7	85 5	ABD1006	185	$1,318
	1329R-HC00309FXH	900	575	L215T	TEFC	3.76	85 5	ABD1006	185	$1,318	23
Discount Schedule 16 NOTES: For a full description of the listed notes, refer to inside back flap

1329RS - Typically Stock

1329R Build to Order
