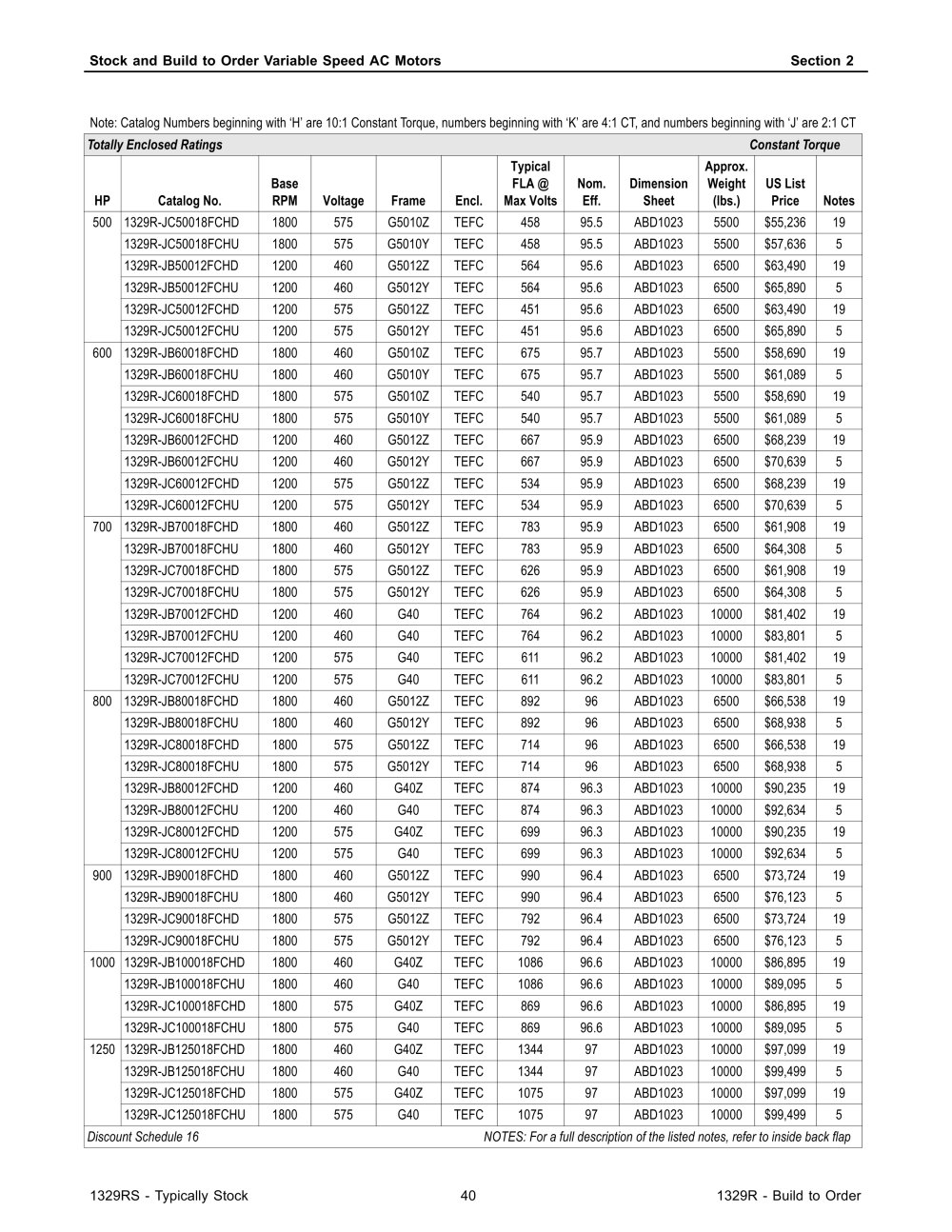

Stock and Build to Order Variable Speed AC Motors

Section 2

Note: Catalog Numbers beginning with 'H' are 10:1 Constant Torque, numbers beginning with 'K' are 4:1 CT, and numbers beginning with 'J' are 2:1 CT

Totally Enclosed Ratings Constant Torque


HP	Catalog No.	Base RPM	Voltage	Frame	End.	Typical FLA@ Max Volts	Nom. Eff.	Dimension Sheet	Approx. Weight (lbs.)	US List Price	Notes
500	1329R-JC50018FCHD	1800	575	G5010Z	TEFC	458	95 5	ABD1023	5500	$55,236	19
	1329R-JC50018FCHU	1800	575	G5010Y	TEFC	458	95 5	ABD1023	5500	$57,636	5
	1329R-JB50012FCHD	1200	460	G5012Z	TEFC	564	95 6	ABD1023	6500	$63,490	19
	1329R-JB50012FCHU	1200	460	G5012Y	TEFC	564	95 6	ABD1023	6500	$65,890	5
	1329R-JC50012FCHD	1200	575	G5012Z	TEFC	451	95 6	ABD1023	6500	$63,490	19
	1329R-JC50012FCHU	1200	575	G5012Y	TEFC	451	95 6	ABD1023	6500	$65,890	5
600	1329R-JB60018FCHD	1800	460	G5010Z	TEFC	675	95 7	ABD1023	5500	$58,690	19
	1329R-JB60018FCHU	1800	460	G5010Y	TEFC	675	95 7	ABD1023	5500	$61,089	5
	1329R-JC60018FCHD	1800	575	G5010Z	TEFC	540	95 7	ABD1023	5500	$58,690	19
	1329R-JC60018FCHU	1800	575	G5010Y	TEFC	540	95 7	ABD1023	5500	$61,089	5
	1329R-JB60012FCHD	1200	460	G5012Z	TEFC	667	95 9	ABD1023	6500	$68,239	19
	1329R-JB60012FCHU	1200	460	G5012Y	TEFC	667	95 9	ABD1023	6500	$70,639	5
	1329R-JC60012FCHD	1200	575	G5012Z	TEFC	534	95 9	ABD1023	6500	$68,239	19
	1329R-JC60012FCHU	1200	575	G5012Y	TEFC	534	95 9	ABD1023	6500	$70,639	5
700	1329R-JB70018FCHD	1800	460	G5012Z	TEFC	783	95 9	ABD1023	6500	$61,908	19
	1329R-JB70018FCHU	1800	460	G5012Y	TEFC	783	95 9	ABD1023	6500	$64,308	5
	1329R-JC70018FCHD	1800	575	G5012Z	TEFC	626	95 9	ABD1023	6500	$61,908	19
	1329R-JC70018FCHU	1800	575	G5012Y	TEFC	626	95 9	ABD1023	6500	$64,308	5
	1329R-JB70012FCHD	1200	460	G40	TEFC	764	96 2	ABD1023	10000	$81,402	19
	1329R-JB70012FCHU	1200	460	G40	TEFC	764	96 .2	ABD1023	10000	$83,801	5
	1329R-JC70012FCHD	1200	575	G40	TEFC	611	96 2	ABD1023	10000	$81,402	19
	1329R-JC70012FCHU	1200	575	G40	TEFC	611	96 2	ABD1023	10000	$83,801	5
800	1329R-JB80018FCHD	1800	460	G5012Z	TEFC	892	96	ABD1023	6500	$66,538	19
	1329R-JB80018FCHU	1800	460	G5012Y	TEFC	892	96	ABD1023	6500	$68,938	5
	1329R-JC80018FCHD	1800	575	G5012Z	TEFC	714	96	ABD1023	6500	$66,538	19
	1329R-JC80018FCHU	1800	575	G5012Y	TEFC	714	96	ABD1023	6500	$68,938	5
	1329R-JB80012FCHD	1200	460	G40Z	TEFC	874	96 3	ABD1023	10000	$90,235	19
	1329R-JB80012FCHU	1200	460	G40	TEFC	874	96 3	ABD1023	10000	$92,634	5
	1329R-JC80012FCHD	1200	575	G40Z	TEFC	699	96 3	ABD1023	10000	$90,235	19
	1329R-JC80012FCHU	1200	575	G40	TEFC	699	96 3	ABD1023	10000	$92,634	5
900	1329R-JB90018FCHD	1800	460	G5012Z	TEFC	990	96 4	ABD1023	6500	$73,724	19
	1329R-JB90018FCHU	1800	460	G5012Y	TEFC	990	96 4	ABD1023	6500	$76,123	5
	1329R-JC90018FCHD	1800	575	G5012Z	TEFC	792	96 4	ABD1023	6500	$73,724	19
	1329R-JC90018FCHU	1800	575	G5012Y	TEFC	792	96 4	ABD1023	6500	$76,123	5
1000	1329R-JB100018FCHD	1800	460	G40Z	TEFC	1086	96 6	ABD1023	10000	$86,895	19
	1329R-JB100018FCHU	1800	460	G40	TEFC	1086	96 6	ABD1023	10000	$89,095	5
	1329R-JC100018FCHD	1800	575	G40Z	TEFC	869	96 6	ABD1023	10000	$86,895	19
	1329R-JC100018FCHU	1800	575	G40	TEFC	869	96 6	ABD1023	10000	$89,095	5
1250	1329R-JB125018FCHD	1800	460	G40Z	TEFC	1344	97	ABD1023	10000	$97,099	19
	1329R-JB125018FCHU	1800	460	G40	TEFC	1344	97	ABD1023	10000	$99,499	5
	1329R-JC125018FCHD	1800	575	G40Z	TEFC	1075	97	ABD1023	10000	$97,099	19
	1329R-JC125018FCHU	1800	575	G40	TEFC	1075	97	ABD1023	10000	$99,499	5
Discount Schedule 16 NOTES: For a full description of the listed notes, refer to inside back flap

1329RS - Typically Stock

1329R - Build to Order
