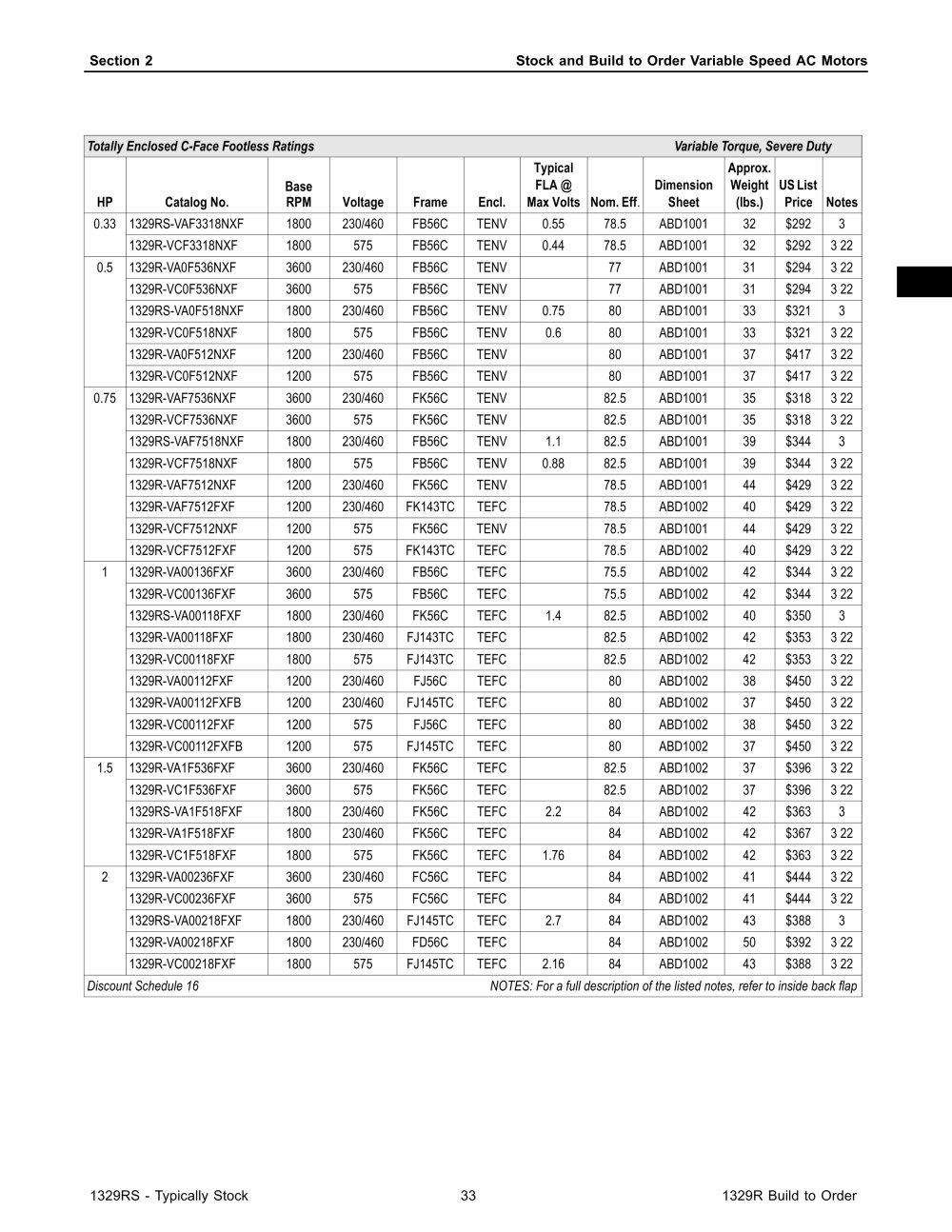

Section 2

Stock and Build to Order Variable Speed AC Motors

Totally Enclosed C-Face Footless Ratings Variable Torque, Severe Duty


HP	Catalog No.	Base RPM	Voltage	Frame	End.	Typical FLA@ Max Volts	Nom. Eff.	Dimension Sheet	Approx. Weight (lbs.)	US List Price	Notes
0.33	1329RS-VAF3318NXF	1800	230/460	FB56C	TENV	0.55	78.5	ABD1001	32	$292	3
0.33	1329R-VCF3318NXF	1800	575	FB56C	TENV	0.44	78.5	ABD1001	32	$292	3 22
0.5	1329R-VA0F536NXF	3600	230 460	FB56C	TENV		77	ABD1001	31	$294	3 22
	1329R-VC0F536NXF	3600	575	FB56C	TENV		77	ABD1001	31	$294	3 22
	1329RS-VA0F518NXF	1800	230 460	FB56C	TENV	0.75	80	ABD1001	33	$321	3
	1329R-VC0F518NXF	1800	575	FB56C	TENV	0.6	80	ABD1001	33	$321	3 22
	1329R-VA0F512NXF	1200	230 460	FB56C	TENV		80	ABD1001	37	$417	3 22
	1329R-VC0F512NXF	1200	575	FB56C	TENV		80	ABD1001	37	$417	3 22
0.75	1329R-VAF7536NXF	3600	230 460	FK56C	TENV		82.5	ABD1001	35	$318	3 22
	1329R-VCF7536NXF	3600	575	FK56C	TENV		82.5	ABD1001	35	$318	3 22
	1329RS-VAF7518NXF	1800	230 460	FB56C	TENV	1.1	82.5	ABD1001	39	$344	3
	1329R-VCF7518NXF	1800	575	FB56C	TENV	0.88	82.5	ABD1001	39	$344	3 22
	1329R-VAF7512NXF	1200	230 460	FK56C	TENV		78.5	ABD1001	44	$429	3 22
	1329R-VAF7512FXF	1200	230 460	FK143TC	TEFC		78.5	ABD1002	40	$429	3 22
	1329R-VCF7512NXF	1200	575	FK56C	TENV		78.5	ABD1001	44	$429	3 22
	1329R-VCF7512FXF	1200	575	FK143TC	TEFC		78.5	ABD1002	40	$429	3 22
1	1329R-VA00136FXF	3600	230/460	FB56C	TEFC		75.5	ABD1002	42	$344	3 22
	1329R-VC00136FXF	3600	575	FB56C	TEFC		75.5	ABD1002	42	$344	3 22
	1329RS-VA00118FXF	1800	230 460	FK56C	TEFC	1.4	82.5	ABD1002	40	$350	3
	1329R-VA00118FXF	1800	230 460	FJ143TC	TEFC		82.5	ABD1002	42	$353	3 22
	1329R-VC00118FXF	1800	575	FJ143TC	TEFC		82.5	ABD1002	42	$353	3 22
	1329R-VA00112FXF	1200	230 460	FJ56C	TEFC		80	ABD1002	38	$450	3 22
	1329R-VA00112FXFB	1200	230 460	FJ145TC	TEFC		80	ABD1002	37	$450	3 22
	1329R-VC00112FXF	1200	575	FJ56C	TEFC		80	ABD1002	38	$450	3 22
	1329R-VC00112FXFB	1200	575	FJ145TC	TEFC		80	ABD1002	37	$450	3 22
1.5	1329R-VA1F536FXF	3600	230 460	FK56C	TEFC		82.5	ABD1002	37	$396	3 22
	1329R-VC1F536FXF	3600	575	FK56C	TEFC		82.5	ABD1002	37	$396	3 22
	1329RS-VA1F518FXF	1800	230 460	FK56C	TEFC	2.2	84	ABD1002	42	$363	3
	1329R-VA1F518FXF	1800	230 460	FK56C	TEFC		84	ABD1002	42	$367	3 22
	1329R-VC1F518FXF	1800	575	FK56C	TEFC	1.76	84	ABD1002	42	$363	3 22
2	1329R-VA00236FXF	3600	230 460	FC56C	TEFC		84	ABD1002	41	$444	3 22
	1329R-VC00236FXF	3600	575	FC56C	TEFC		84	ABD1002	41	$444	3 22
	1329RS-VA00218FXF	1800	230 460	FJ145TC	TEFC	2.7	84	ABD1002	43	$388	3
	1329R-VA00218FXF	1800	230 460	FD56C	TEFC		84	ABD1002	50	$392	3 22
	1329R-VC00218FXF	1800	575	FJ145TC	TEFC	2.16	84	ABD1002	43	$388	3 22
Discount Schedule 16 NOTES: For a full description of the listed notes, refer to inside back flap

1329RS - Typically Stock

1329R Build to Order
