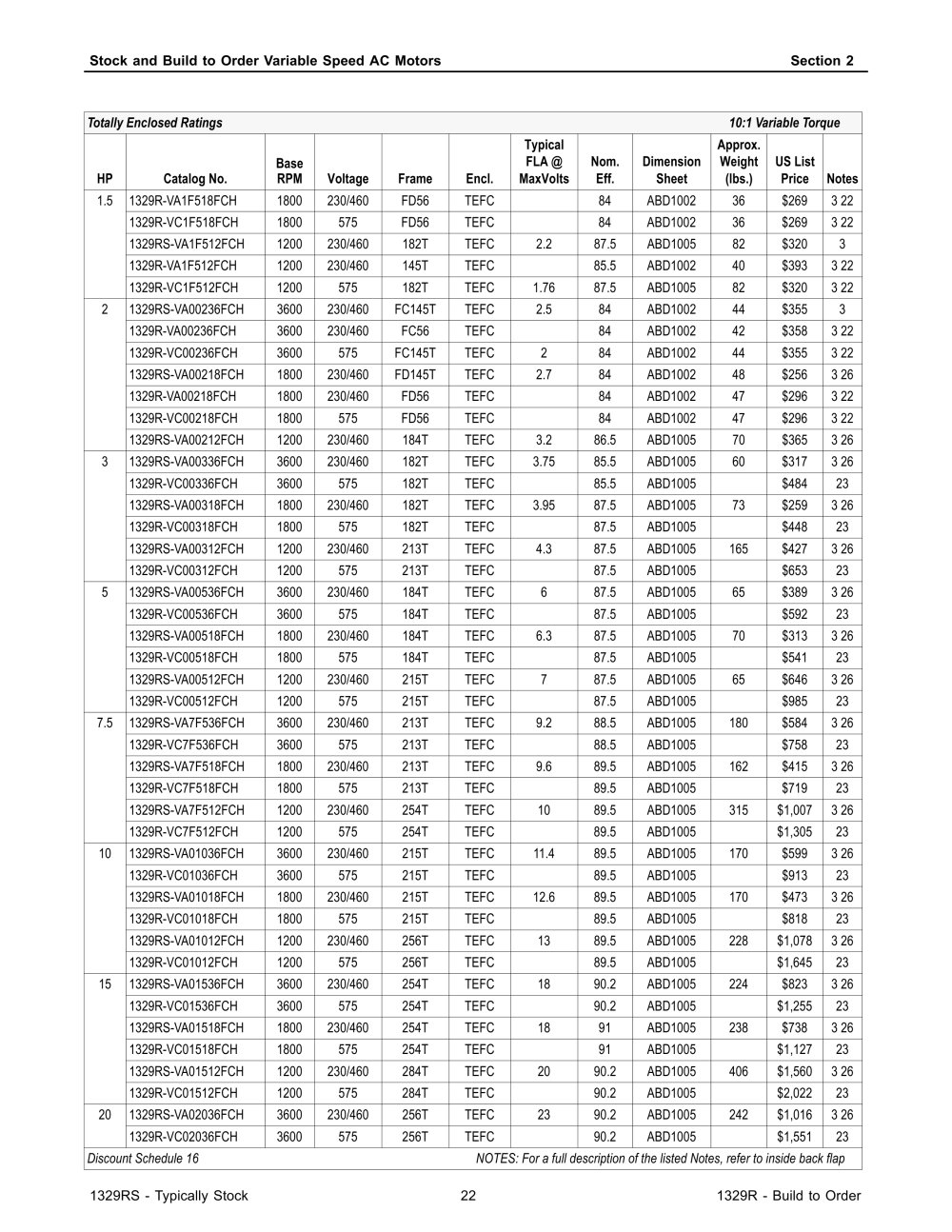

| | | | | | | | | | | | | | | | | | | | | | | | | Stock and Build to Order Variable Speed AC Motors | | Section 2 | | | | | | | | | | | | | | Totally Enclosed Ratings 10:1 Variable Torque | | | | | | | | | | | | | | | | | | | | | | | | | | | HP | Catalog No. | Base RPM | Voltage | Frame | End. | Typical FLA @ MaxVolts | Nom. Eff. | Dimension Sheet | Approx. Weight (lbs.) | US List Price | Notes | | | | 1. 5 | 1329R-VA1F518FCH | 1800 | 230/460 | FD56 | TEFC | | 84 | ABD1002 | 36 | $269 | 3 22 | | | | 1329R-VC1F518FCH | 1800 | 575 | FD56 | TEFC | | 84 | ABD1002 | 36 | $269 | 3 22 | | | | 1329RS-VA1F512FCH | 1200 | 230/460 | 182T | TEFC | 2 2 | 87 5 | ABD1005 | 82 | $320 | 3 | | | | 1329R-VA1F512FCH | 1200 | 230/460 | 145T | TEFC | | 85 5 | ABD1002 | 40 | $393 | 3 22 | | | | 1329R-VC1F512FCH | 1200 | 575 | 182T | TEFC | 1 76 | 87 5 | ABD1005 | 82 | $320 | 3 22 | | | | 2 | 1329RS-VA00236FCH | 3600 | 230/460 | FC145T | TEFC | 2 5 | 84 | ABD1002 | 44 | $355 | 3 | | | | 1329R-VA00236FCH | 3600 | 230/460 | FC56 | TEFC | | 84 | ABD1002 | 42 | $358 | 3 22 | | | | 1329R-VC00236FCH | 3600 | 575 | FC145T | TEFC | 2 | 84 | ABD1002 | 44 | $355 | 3 22 | | | | 1329RS-VA00218FCH | 1800 | 230/460 | FD145T | TEFC | 2 7 | 84 | ABD1002 | 48 | $256 | 3 26 | | | | 1329R-VA00218FCH | 1800 | 230/460 | FD56 | TEFC | | 84 | ABD1002 | 47 | $296 | 3 22 | | | | 1329R-VC00218FCH | 1800 | 575 | FD56 | TEFC | | 84 | ABD1002 | 47 | $296 | 3 22 | | | | 1329RS-VA00212FCH | 1200 | 230/460 | 184T | TEFC | 3 2 | 86 5 | ABD1005 | 70 | $365 | 3 26 | | | | 3 | 1329RS-VA00336FCH | 3600 | 230/460 | 182T | TEFC | 3 75 | 85 5 | ABD1005 | 60 | $317 | 3 26 | | | | 1329R-VC00336FCH | 3600 | 575 | 182T | TEFC | | 85 5 | ABD1005 | | $484 | 23 | | | | 1329RS-VA00318FCH | 1800 | 230/460 | 182T | TEFC | 3 95 | 87 5 | ABD1005 | 73 | $259 | 3 26 | | | | 1329R-VC00318FCH | 1800 | 575 | 182T | TEFC | | 87 5 | ABD1005 | | $448 | 23 | | | | 1329RS-VA00312FCH | 1200 | 230/460 | 213T | TEFC | 4 3 | 87 5 | ABD1005 | 165 | $427 | 3 26 | | | | 1329R-VC00312FCH | 1200 | 575 | 213T | TEFC | | 87 5 | ABD1005 | | $653 | 23 | | | | 5 | 1329RS-VA00536FCH | 3600 | 230/460 | 184T | TEFC | 6 | 87 5 | ABD1005 | 65 | $389 | 3 26 | | | | 1329R-VC00536FCH | 3600 | 575 | 184T | TEFC | | 87 5 | ABD1005 | | $592 | 23 | | | | 1329RS-VA00518FCH | 1800 | 230/460 | 184T | TEFC | 6.3 | 87.5 | ABD1005 | 70 | $313 | 3 26 | | | | 1329R-VC00518FCH | 1800 | 575 | 184T | TEFC | | 87 5 | ABD1005 | | $541 | 23 | | | | 1329RS-VA00512FCH | 1200 | 230/460 | 215T | TEFC | 7 | 87 5 | ABD1005 | 65 | $646 | 3 26 | | | | 1329R-VC00512FCH | 1200 | 575 | 215T | TEFC | | 87 5 | ABD1005 | | $985 | 23 | | | | 7.5 | 1329RS-VA7F536FCH | 3600 | 230/460 | 213T | TEFC | 9 2 | 88 5 | ABD1005 | 180 | $584 | 3 26 | | | | 1329R-VC7F536FCH | 3600 | 575 | 213T | TEFC | | 88 5 | ABD1005 | | $758 | 23 | | | | 1329RS-VA7F518FCH | 1800 | 230/460 | 213T | TEFC | 9 6 | 89 5 | ABD1005 | 162 | $415 | 3 26 | | | | 1329R-VC7F518FCH | 1800 | 575 | 213T | TEFC | | 89 5 | ABD1005 | | $719 | 23 | | | | 1329RS-VA7F512FCH | 1200 | 230/460 | 254T | TEFC | 10 | 89 5 | ABD1005 | 315 | $1,007 | 3 26 | | | | 1329R-VC7F512FCH | 1200 | 575 | 254T | TEFC | | 89 5 | ABD1005 | | $1,305 | 23 | | | | 10 | 1329RS-VA01036FCH | 3600 | 230/460 | 215T | TEFC | 11 4 | 89 5 | ABD1005 | 170 | $599 | 3 26 | | | | 1329R-VC01036FCH | 3600 | 575 | 215T | TEFC | | 89 5 | ABD1005 | | $913 | 23 | | | | 1329RS-VA01018FCH | 1800 | 230/460 | 215T | TEFC | 12 6 | 89 5 | ABD1005 | 170 | $473 | 3 26 | | | | 1329R-VC01018FCH | 1800 | 575 | 215T | TEFC | | 89 5 | ABD1005 | | $818 | 23 | | | | 1329RS-VA01012FCH | 1200 | 230/460 | 256T | TEFC | 13 | 89 5 | ABD1005 | 228 | $1,078 | 3 26 | | | | 1329R-VC01012FCH | 1200 | 575 | 256T | TEFC | | 89 5 | ABD1005 | | $1,645 | 23 | | | | 15 | 1329RS-VA01536FCH | 3600 | 230/460 | 254T | TEFC | 18 | 90 2 | ABD1005 | 224 | $823 | 3 26 | | | | 1329R-VC01536FCH | 3600 | 575 | 254T | TEFC | | 90 2 | ABD1005 | | $1,255 | 23 | | | | 1329RS-VA01518FCH | 1800 | 230/460 | 254T | TEFC | 18 | 91 | ABD1005 | 238 | $738 | 3 26 | | | | 1329R-VC01518FCH | 1800 | 575 | 254T | TEFC | | 91 | ABD1005 | | $1,127 | 23 | | | | 1329RS-VA01512FCH | 1200 | 230/460 | 284T | TEFC | 20 | 90 2 | ABD1005 | 406 | $1,560 | 3 26 | | | | 1329R-VC01512FCH | 1200 | 575 | 284T | TEFC | | 90 2 | ABD1005 | | $2,022 | 23 | | | | 20 | 1329RS-VA02036FCH | 3600 | 230/460 | 256T | TEFC | 23 | 90 2 | ABD1005 | 242 | $1,016 | 3 26 | | | | 1329R-VC02036FCH | 3600 | 575 | 256T | TEFC | | 90 2 | ABD1005 | | $1,551 | 23 | | | | Discount Schedule 16 NOTES: For a full description of the listed Notes, refer to inside back flap | | | | | | | | | | | | | | | | | | | | | | | | | | | 1329RS - Typically Stock | | 22 | | 1329R - Build to Order | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
