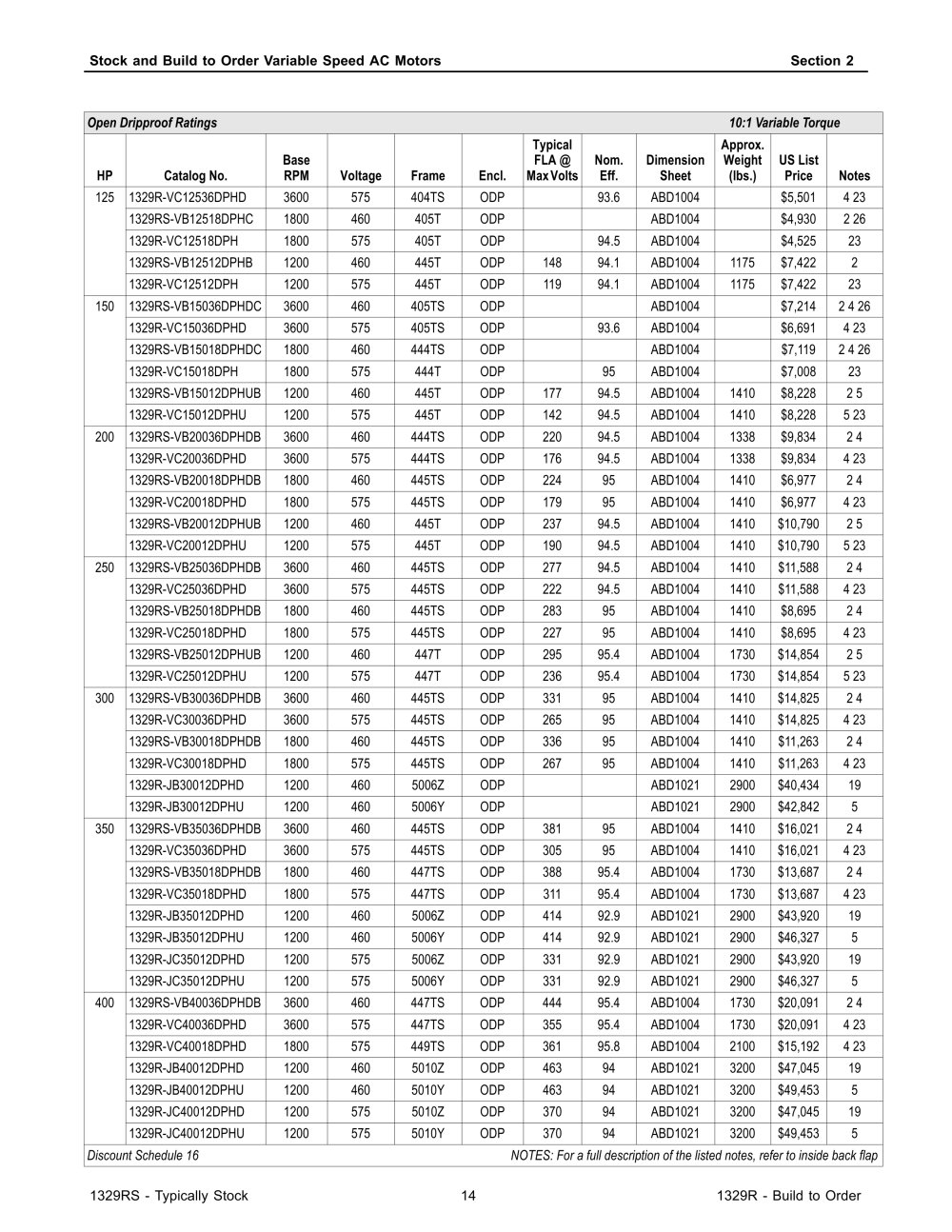

Stock and Build to Order Variable Speed AC Motors

Section 2


HP	Catalog No.	Base RPM	Voltage	Frame	End.	Typical FLA @ Max Volts	Nom. Eff.	Dimension Sheet	Approx. Weight (lbs.)	US List Price	Notes
125	1329R-VC12536DPHD	3600	575	404TS	ODP		93.6	ABD1004		$5,501	4 23
	1329RS-VB12518DPHC	1800	460	405T	ODP			ABD1004		$4,930	2 26
	1329R-VC12518DPH	1800	575	405T	ODP		94.5	ABD1004		$4,525	23
	1329RS-VB12512DPHB	1200	460	445T	ODP	148	94.1	ABD1004	1175	$7,422	2
	1329R-VC12512DPH	1200	575	445T	ODP	119	94.1	ABD1004	1175	$7,422	23
150	1329RS-VB15036DPHDC	3600	460	405TS	ODP			ABD1004		$7,214	2 4 26
	1329R-VC15036DPHD	3600	575	405TS	ODP		93.6	ABD1004		$6,691	4 23
	1329RS-VB15018DPHDC	1800	460	444TS	ODP			ABD1004		$7,119	2 4 26
	1329R-VC15018DPH	1800	575	444T	ODP		95	ABD1004		$7,008	23
	1329RS-VB15012DPHUB	1200	460	445T	ODP	177	94.5	ABD1004	1410	$8,228	25
	1329R-VC15012DPHU	1200	575	445T	ODP	142	94.5	ABD1004	1410	$8,228	5 23
200	1329RS-VB20036DPHDB	3600	460	444TS	ODP	220	94.5	ABD1004	1338	$9,834	24
	1329R-VC20036DPHD	3600	575	444TS	ODP	176	94.5	ABD1004	1338	$9,834	4 23
	1329RS-VB20018DPHDB	1800	460	445TS	ODP	224	95	ABD1004	1410	$6,977	24
	1329R-VC20018DPHD	1800	575	445TS	ODP	179	95	ABD1004	1410	$6,977	4 23
	1329RS-VB20012DPHUB	1200	460	445T	ODP	237	94.5	ABD1004	1410	$10,790	25
	1329R-VC20012DPHU	1200	575	445T	ODP	190	94.5	ABD1004	1410	$10,790	5 23
250	1329RS-VB25036DPHDB	3600	460	445TS	ODP	277	94.5	ABD1004	1410	$11,588	24
	1329R-VC25036DPHD	3600	575	445TS	ODP	222	94.5	ABD1004	1410	$11,588	4 23
	1329RS-VB25018DPHDB	1800	460	445TS	ODP	283	95	ABD1004	1410	$8,695	24
	1329R-VC25018DPHD	1800	575	445TS	ODP	227	95	ABD1004	1410	$8,695	4 23
	1329RS-VB25012DPHUB	1200	460	447T	ODP	295	95.4	ABD1004	1730	$14,854	25
	1329R-VC25012DPHU	1200	575	447T	ODP	236	95.4	ABD1004	1730	$14,854	5 23
300	1329RS-VB30036DPHDB	3600	460	445TS	ODP	331	95	ABD1004	1410	$14,825	24
	1329R-VC30036DPHD	3600	575	445TS	ODP	265	95	ABD1004	1410	$14,825	4 23
	1329RS-VB30018DPHDB	1800	460	445TS	ODP	336	95	ABD1004	1410	$11,263	24
	1329R-VC30018DPHD	1800	575	445TS	ODP	267	95	ABD1004	1410	$11,263	4 23
	1329R-JB30012DPHD	1200	460	5006Z	ODP			ABD1021	2900	$40,434	19
	1329R-JB30012DPHU	1200	460	5006Y	ODP			ABD1021	2900	$42,842	5
350	1329RS-VB35036DPHDB	3600	460	445TS	ODP	381	95	ABD1004	1410	$16,021	24
	1329R-VC35036DPHD	3600	575	445TS	ODP	305	95	ABD1004	1410	$16,021	4 23
	1329RS-VB35018DPHDB	1800	460	447TS	ODP	388	95.4	ABD1004	1730	$13,687	24
	1329R-VC35018DPHD	1800	575	447TS	ODP	311	95.4	ABD1004	1730	$13,687	4 23
	1329R-JB35012DPHD	1200	460	5006Z	ODP	414	92.9	ABD1021	2900	$43,920	19
	1329R-JB35012DPHU	1200	460	5006Y	ODP	414	92.9	ABD1021	2900	$46,327	5
	1329R-JC35012DPHD	1200	575	5006Z	ODP	331	92.9	ABD1021	2900	$43,920	19
	1329R-JC35012DPHU	1200	575	5006Y	ODP	331	92.9	ABD1021	2900	$46,327	5
400	1329RS-VB40036DPHDB	3600	460	447TS	ODP	444	95.4	ABD1004	1730	$20,091	24
	1329R-VC40036DPHD	3600	575	447TS	ODP	355	95.4	ABD1004	1730	$20,091	4 23
	1329R-VC40018DPHD	1800	575	449TS	ODP	361	95.8	ABD1004	2100	$15,192	4 23
	1329R-JB40012DPHD	1200	460	5010Z	ODP	463	94	ABD1021	3200	$47,045	19
	1329R-JB40012DPHU	1200	460	5010Y	ODP	463	94	ABD1021	3200	$49,453	5
	1329R-JC40012DPHD	1200	575	5010Z	ODP	370	94	ABD1021	3200	$47,045	19
	1329R-JC40012DPHU	1200	575	5010Y	ODP	370	94	ABD1021	3200	$49,453	5
Discount Schedule 16 NOTES: For a full description of the listed notes, refer to inside back flap

1329RS - Typically Stock

1329R - Build to Order
