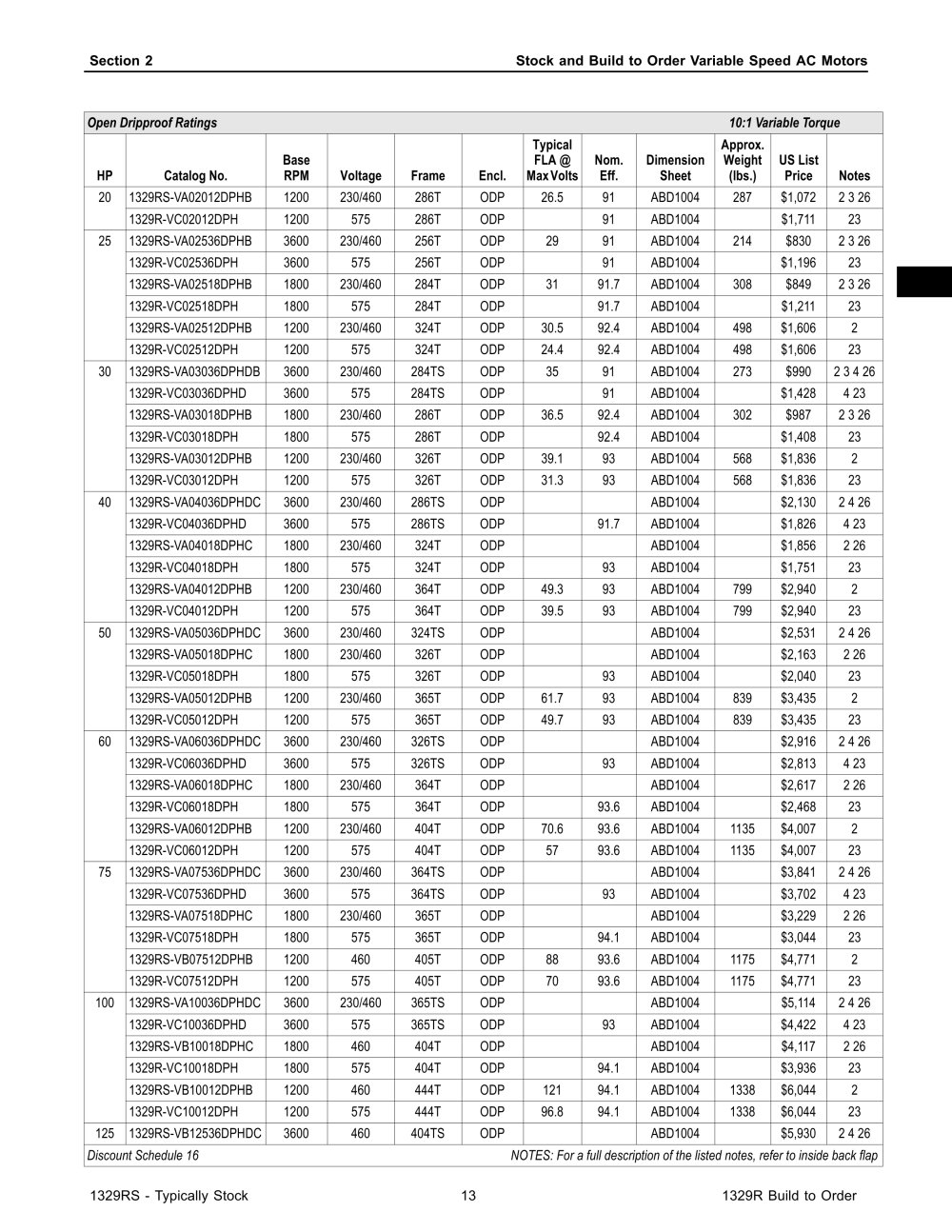

| | | | | | | | | | | | | | | | | | | | | | | Section 2 | | Stock and Build to Order Variable Speed AC Motors | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | HP | Catalog No. | Base RPM | Voltage | Frame | End. | Typical FLA @ Max Volts | Nom. Eff. | Dimension Sheet | Approx. Weight (lbs.) | US List Price | Notes | | | | 20 | 1329RS-VA02012DPHB | 1200 | 230 460 | 286T | ODP | 26.5 | 91 | ABD1004 | 287 | $1,072 | 2 3 26 | | | | 1329R-VC02012DPH | 1200 | 575 | 286T | ODP | | 91 | ABD1004 | | $1,711 | 23 | | | | 25 | 1329RS-VA02536DPHB | 3600 | 230 460 | 256T | ODP | 29 | 91 | ABD1004 | 214 | $830 | 2 3 26 | | | | 1329R-VC02536DPH | 3600 | 575 | 256T | ODP | | 91 | ABD1004 | | $1,196 | 23 | | | | 1329RS-VA02518DPHB | 1800 | 230 460 | 284T | ODP | 31 | 91.7 | ABD1004 | 308 | $849 | 2 3 26 | | | | 1329R-VC02518DPH | 1800 | 575 | 284T | ODP | | 91.7 | ABD1004 | | $1,211 | 23 | | | | 1329RS-VA02512DPHB | 1200 | 230 460 | 324T | ODP | 30.5 | 92.4 | ABD1004 | 498 | $1,606 | 2 | | | | 1329R-VC02512DPH | 1200 | 575 | 324T | ODP | 24.4 | 92.4 | ABD1004 | 498 | $1,606 | 23 | | | | 30 | 1329RS-VA03036DPHDB | 3600 | 230 460 | 284TS | ODP | 35 | 91 | ABD1004 | 273 | $990 | 2 3426 | | | | 1329R-VC03036DPHD | 3600 | 575 | 284TS | ODP | | 91 | ABD1004 | | $1,428 | 4 23 | | | | 1329RS-VA03018DPHB | 1800 | 230 460 | 286T | ODP | 36.5 | 92.4 | ABD1004 | 302 | $987 | 2 3 26 | | | | 1329R-VC03018DPH | 1800 | 575 | 286T | ODP | | 92.4 | ABD1004 | | $1,408 | 23 | | | | 1329RS-VA03012DPHB | 1200 | 230 460 | 326T | ODP | 39.1 | 93 | ABD1004 | 568 | $1,836 | 2 | | | | 1329R-VC03012DPH | 1200 | 575 | 326T | ODP | 31.3 | 93 | ABD1004 | 568 | $1,836 | 23 | | | | 40 | 1329RS-VA04036DPHDC | 3600 | 230 460 | 286TS | ODP | | | ABD1004 | | $2,130 | 2 4 26 | | | | 1329R-VC04036DPHD | 3600 | 575 | 286TS | ODP | | 91.7 | ABD1004 | | $1,826 | 4 23 | | | | 1329RS-VA04018DPHC | 1800 | 230 460 | 324T | ODP | | | ABD1004 | | $1,856 | 2 26 | | | | 1329R-VC04018DPH | 1800 | 575 | 324T | ODP | | 93 | ABD1004 | | $1,751 | 23 | | | | 1329RS-VA04012DPHB | 1200 | 230 460 | 364T | ODP | 49.3 | 93 | ABD1004 | 799 | $2,940 | 2 | | | | 1329R-VC04012DPH | 1200 | 575 | 364T | ODP | 39.5 | 93 | ABD1004 | 799 | $2,940 | 23 | | | | 50 | 1329RS-VA05036DPHDC | 3600 | 230/460 | 324TS | ODP | | | ABD1004 | | $2,531 | 2 4 26 | | | | 1329RS-VA05018DPHC | 1800 | 230 460 | 326T | ODP | | | ABD1004 | | $2,163 | 2 26 | | | | 1329R-VC05018DPH | 1800 | 575 | 326T | ODP | | 93 | ABD1004 | | $2,040 | 23 | | | | 1329RS-VA05012DPHB | 1200 | 230 460 | 365T | ODP | 61.7 | 93 | ABD1004 | 839 | $3,435 | 2 | | | | 1329R-VC05012DPH | 1200 | 575 | 365T | ODP | 49.7 | 93 | ABD1004 | 839 | $3,435 | 23 | | | | 60 | 1329RS-VA06036DPHDC | 3600 | 230 460 | 326TS | ODP | | | ABD1004 | | $2,916 | 2 4 26 | | | | 1329R-VC06036DPHD | 3600 | 575 | 326TS | ODP | | 93 | ABD1004 | | $2,813 | 4 23 | | | | 1329RS-VA06018DPHC | 1800 | 230 460 | 364T | ODP | | | ABD1004 | | $2,617 | 2 26 | | | | 1329R-VC06018DPH | 1800 | 575 | 364T | ODP | | 93.6 | ABD1004 | | $2,468 | 23 | | | | 1329RS-VA06012DPHB | 1200 | 230 460 | 404T | ODP | 70.6 | 93.6 | ABD1004 | 1135 | $4,007 | 2 | | | | 1329R-VC06012DPH | 1200 | 575 | 404T | ODP | 57 | 93.6 | ABD1004 | 1135 | $4,007 | 23 | | | | 75 | 1329RS-VA07536DPHDC | 3600 | 230 460 | 364TS | ODP | | | ABD1004 | | $3,841 | 2 4 26 | | | | 1329R-VC07536DPHD | 3600 | 575 | 364TS | ODP | | 93 | ABD1004 | | $3,702 | 4 23 | | | | 1329RS-VA07518DPHC | 1800 | 230 460 | 365T | ODP | | | ABD1004 | | $3,229 | 2 26 | | | | 1329R-VC07518DPH | 1800 | 575 | 365T | ODP | | 94.1 | ABD1004 | | $3,044 | 23 | | | | 1329RS-VB07512DPHB | 1200 | 460 | 405T | ODP | 88 | 93.6 | ABD1004 | 1175 | $4,771 | 2 | | | | 1329R-VC07512DPH | 1200 | 575 | 405T | ODP | 70 | 93.6 | ABD1004 | 1175 | $4,771 | 23 | | | | 100 | 1329RS-VA10036DPHDC | 3600 | 230 460 | 365TS | ODP | | | ABD1004 | | $5,114 | 2 4 26 | | | | 1329R-VC10036DPHD | 3600 | 575 | 365TS | ODP | | 93 | ABD1004 | | $4,422 | 4 23 | | | | 1329RS-VB10018DPHC | 1800 | 460 | 404T | ODP | | | ABD1004 | | $4,117 | 2 26 | | | | 1329R-VC10018DPH | 1800 | 575 | 404T | ODP | | 94.1 | ABD1004 | | $3,936 | 23 | | | | 1329RS-VB10012DPHB | 1200 | 460 | 444T | ODP | 121 | 94.1 | ABD1004 | 1338 | $6,044 | 2 | | | | 1329R-VC10012DPH | 1200 | 575 | 444T | ODP | 96.8 | 94.1 | ABD1004 | 1338 | $6,044 | 23 | | | | 125 | 1329RS-VB12536DPHDC | 3600 | 460 | 404TS | ODP | | | ABD1004 | | $5,930 | 2 4 26 | | | | | | | | | | | | | | | | | | | | | | | | | | | 1329RS - Typically Stock | | 13 | | 1329R Build to Order | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
