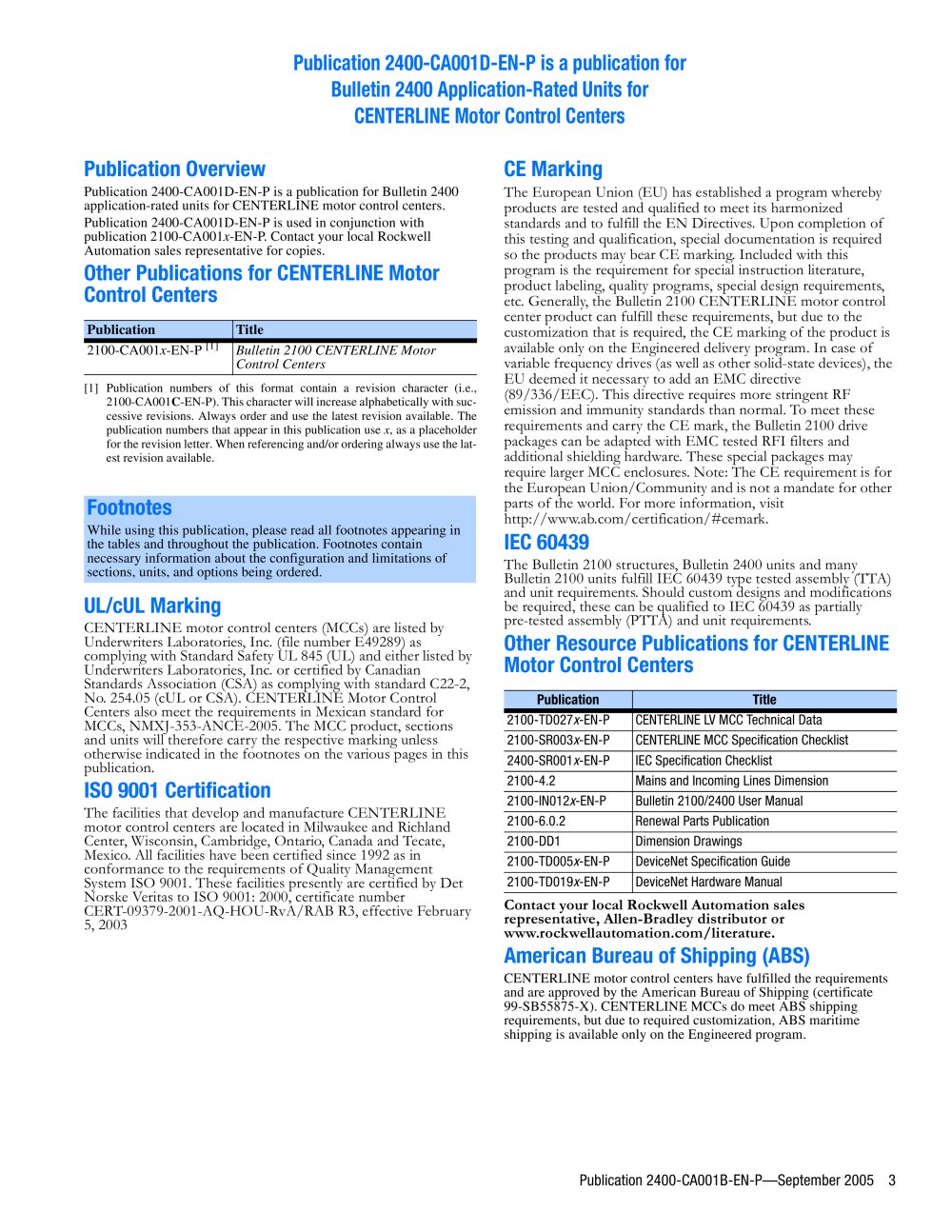

Publication 2400-CA001D-EN-P is a publication for Bulletin 2400 Application-Rated Units for

CENTERLINE Motor Control Centers

The European Union (EU) has established a program whereby products are tested and qualified to meet its harmonized standards and to fulfill the EN Directives. Upon completion of this testing and qualification, special documentation is required so the products may bear CE marking. Included with this program is the requirement for special instruction literature, product labeling, quality programs, special design requirements, etc. Generally, the Bulletin 2100 CENTERLINE motor control center product can fulfill these requirements, but due to the customization that is required, the CE marking of the product is available only on the Engineered delivery program. In case of variable frequency drives (as well as other solid-state devices), the EU deemed it necessary to add an EMC directive (89/336/EEC). This directive requires more stringent RF emission and immunity standards than normal. To meet these requirements and carry the CE mark, the Bulletin 2100 drive packages can be adapted with EMC tested RFI filters and additional shielding hardware. These special packages may require larger MCC enclosures. Note: The CE requirement is for the European Union/Community and is not a mandate for other parts of the world. For more information, visit http://www.ab.com/certification/#cemark.

The Bulletin 2100 structures, Bulletin 2400 units and many Bulletin 2100 units fulfill IEC 60439 type tested assembly (TTA) and unit requirements. Should custom designs and modifications be required, these can be qualified to IEC 60439 as partially pre-tested assembly (PTTA) and unit requirements.

Publication 2400-CA001D-EN-P is a publication for Bulletin 2400 application-rated units for CENTERLINE motor control centers. Publication 2400-CA001D-EN-P is used in conjunction with publication 2100-CA001x-EN-P. Contact your local Rockwell Automation sales representative for copies.

[1] Publication numbers of this format contain a revision character (i.e., 2100-CA001C-EN-P). This character will increase alphabetically with suc­cessive revisions. Always order and use the latest revision available. The publication numbers that appear in this publication use x, as a placeholder for the revision letter. When referencing and/or ordering always use the lat­est revision available.

While using this publication, please read all footnotes appearing in the tables and throughout the publication. Footnotes contain necessary information about the configuration and limitations of sections, units, and options being ordered.

CENTERLINE motor control centers (MCCs) are listed by Underwriters Laboratories, Inc. (file number E49289) as complying with Standard Safety UL 845 (UL) and either listed by Underwriters Laboratories, Inc. or certified by Canadian Standards Association (CSA) as complying with standard C22-2, No. 254.05 (cUL or CSA). CENTERLINE Motor Control Centers also meet the requirements in Mexican standard for MCCs, NMXJ-353-ANCE-2005. The MCC product, sections and units will therefore carry the respective marking unless otherwise indicated in the footnotes on the various pages in this publication.

The facilities that develop and manufacture CENTERLINE motor control centers are located in Milwaukee and Richland Center, Wisconsin, Cambridge, Ontario, Canada and Tecate, Mexico. All facilities have been certified since 1992 as in conformance to the requirements of Quality Management System ISO 9001. These facilities presently are certified by Det Norske Veritas to ISO 9001: 2000, certificate number CERT-09379-2001-AQ-HOU-RvA/RAB R3, effective February

5, 2003

CENTERLINE motor control centers have fulfilled the requirements and are approved by the American Bureau of Shipping (certificate 99-SB55875-X). CENTERLINE MCCs do meet ABS shipping requirements, but due to required customization, ABS maritime shipping is available only on the Engineered program.

Publication 2400-CA001B-EN-P—September 2005 3
