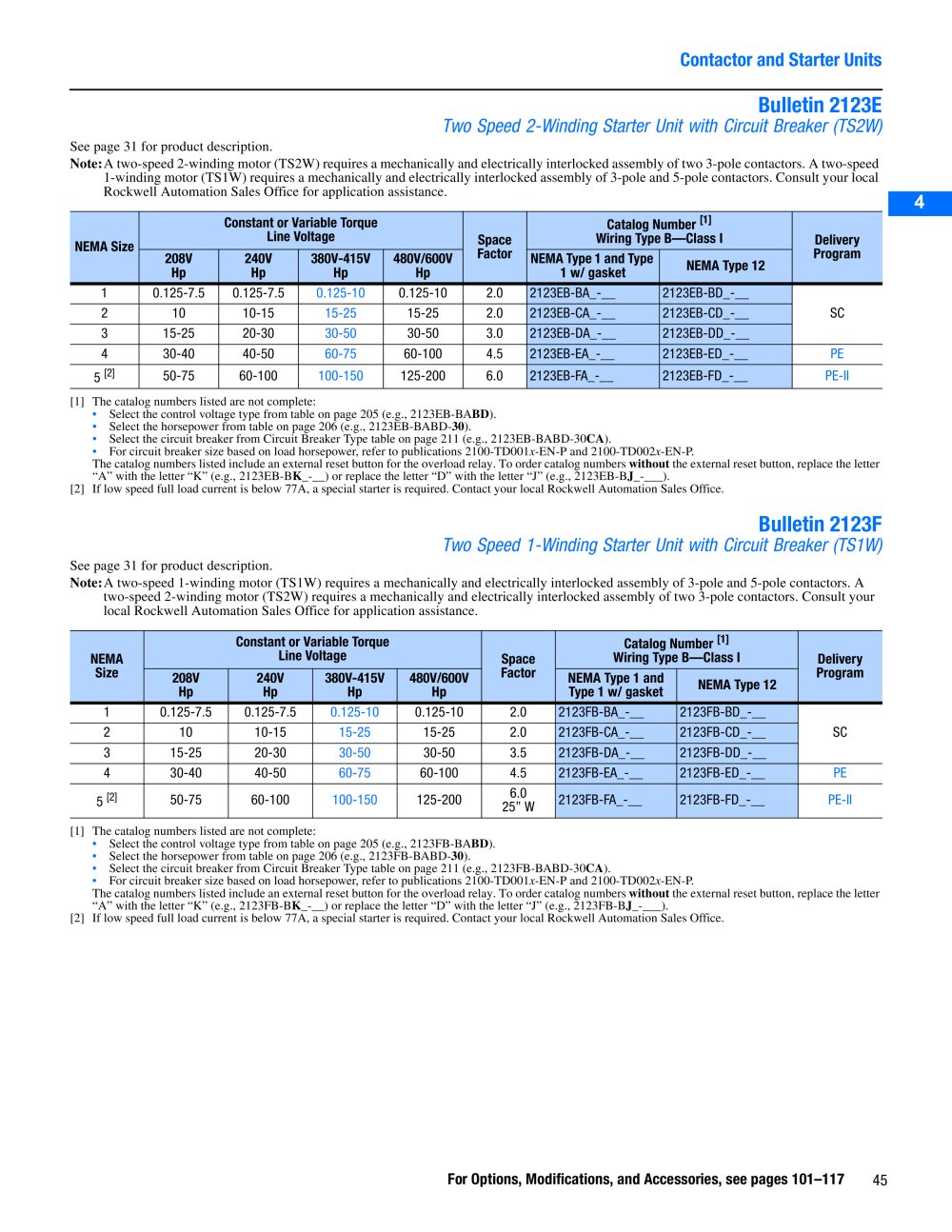

| Bulletin 2123E Two Speed 2-Winding Starter Unit with Circuit Breaker (TS2W) See page 31 for product description. Note: A two-speed 2-winding motor (TS2W) requires a mechanically and electrically interlocked assembly of two 3-pole contactors. A two-speed 1-winding motor (TS1W) requires a mechanically and electrically interlocked assembly of 3-pole and 5-pole contactors. Consult your local Rockwell Automation Sales Office for application assislance.H^^^^^^^^^^^H^^H^^^^^H^^^^^^^^^^^^^B^^^^^^^^^^ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| [1] The catalog numbers listed are not complete: • Select the control voltage type from table on page 205 (e.g., 2123EB-BABD). • Select the horsepower from table on page 206 (e.g., 2123EB-BABD-30). • Select the circuit breaker from Circuit Breaker Type table on page 211 (e.g., 2123EB-BABD-30CA). • For circuit breaker size based on load horsepower, refer to publications 2100-TD001x-EN-P and 2100-TD002r-EN-P. The catalog numbers listed include an external reset button for the overload relay. To order catalog numbers without the external reset button, replace the letter "A" with the letter "K" (e.g., 2123EB-BK_-_) or replace the letter "D" with the letter "J" (e.g., 2123EB-BJ_-_). [2] If low speed full load current is below 77A, a special starter is required. Contact your local Rockwell Automation Sales Office. Bulletin 2123F Two Speed 1-Winding Starter Unit with Circuit Breaker (TS1W) See page 31 for product description. Note: A two-speed 1-winding motor (TS1W) requires a mechanically and electrically interlocked assembly of 3-pole and 5-pole contactors. A two-speed 2-winding motor (TS2W) requires a mechanically and electrically interlocked assembly of two 3-pole contactors. Consult your local Rockwell Automation Sales Office for application assistance. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| [1] The catalog numbers listed are not complete: • Select the control voltage type from table on page 205 (e.g., 2123FB-BABD). • Select the horsepower from table on page 206 (e.g., 2123FB-BABD-30). • Select the circuit breaker from Circuit Breaker Type table on page 211 (e.g., 2123FB-BABD-30CA). • For circuit breaker size based on load horsepower, refer to publications 2100-TD001x-EN-P and 2100-TD002r-EN-P. The catalog numbers listed include an external reset button for the overload relay. To order catalog numbers without the external reset button, replace the letter "A" with the letter "K" (e.g., 2123FB-BK_-_) or replace the letter "D" with the letter "J" (e.g., 2123FB-BJ_-_). [2] If low speed full load current is below 77A, a special starter is required. Contact your local Rockwell Automation Sales Office. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| For Options, Modifications, and Accessories, see pages 101-117 45 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
