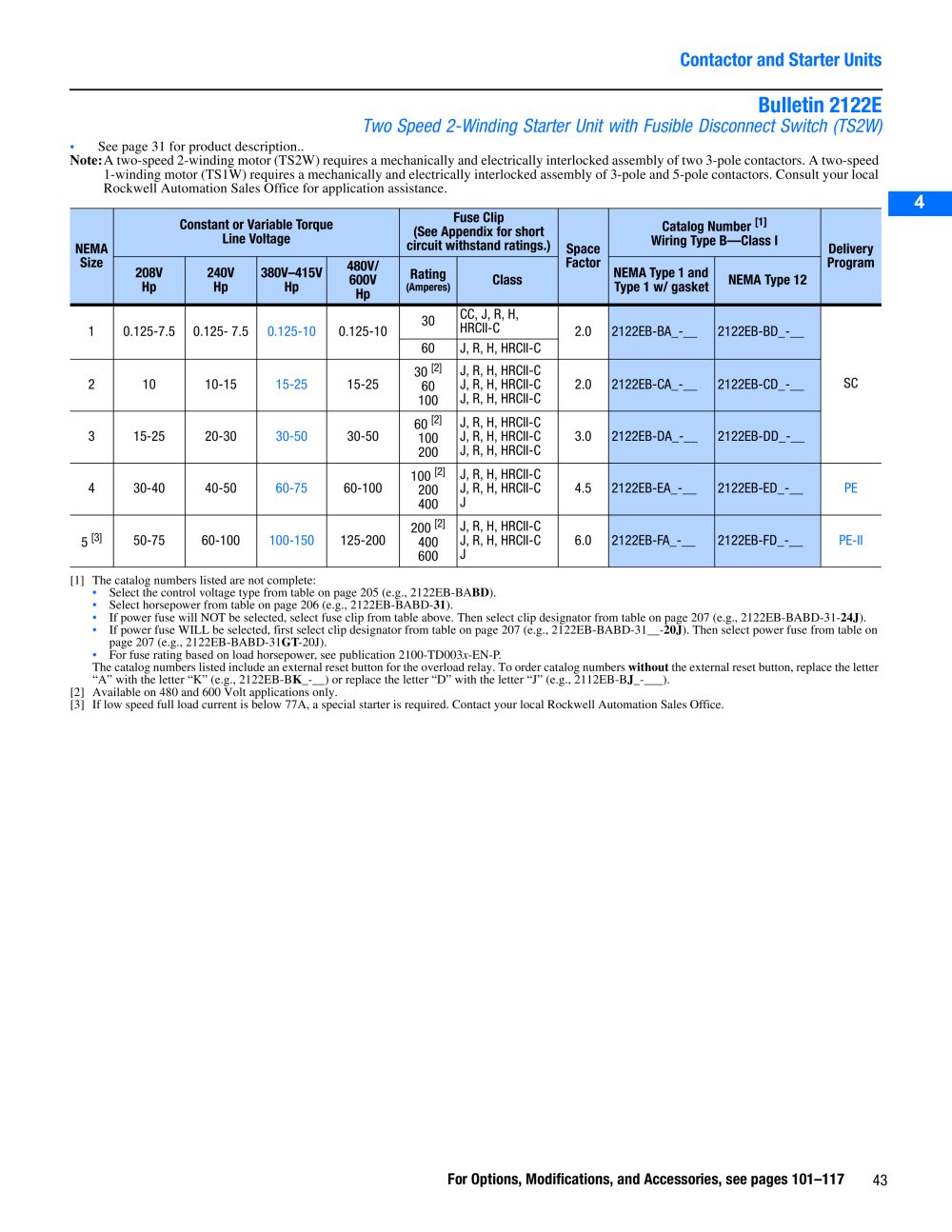

Contactor and Starter Units

Bulletin 2122E

Two Speed 2-Winding Starter Unit with Fusible Disconnect Switch (TS2W)

• See page 31 for product description..

Note: A two-speed 2-winding motor (TS2W) requires a mechanically and electrically interlocked assembly of two 3-pole contactors. A two-speed 1-winding motor (TS1W) requires a mechanically and electrically interlocked assembly of 3-pole and 5-pole contactors. Consult your local Rockwell Automation Sales Office for application assistance.


NEMA	Constant or Variable Torque Line Voltage				Fuse Clip (See Appendix for short circuit withstand ratings.)		Space	Catalog Number ^[1]Wiring Type B—Class I		Delivery
Size	208V Hp	240V Hp	380V-415V Hp	480V/ 600V Hp	Rating (Amperes)	Class	Factor	NEMA Type 1 and Type 1 w/ gasket	NEMA Type 12	Program
1	0.125-7.5	0.125- 7.5	0.125-10	0.125-10	30	CC, J, R, H, HRCII-C	2.0	2122EB-BA_-_	2122EB-BD_-_
					60	J, R, H, HRCII-C
2	10	10-15	15-25	15-25	30 ^[2]60 100	J, R, H, HRCII-C J, R, H, HRCII-C J, R, H, HRCII-C	2.0	2122EB-CA_-_	2122EB-CD_-_	SC
3	15-25	20-30	30-50	30-50	60 ^[2] 100 200	J, R, H, HRCII-C J, R, H, HRCII-C J, R, H, HRCII-C	3.0	2122EB-DA_-_	2122EB-DD_-_
4	30-40	40-50	60-75	60-100	100 ^[2] 200 400	J, R, H, HRCII-C J, R, H, HRCII-C J	4.5	2122EB-EA_-_	2122EB-ED_-_
5 ^[3]	50-75	60-100	100-150	125-200	200 ^[2]400 600	J, R, H, HRCII-C J, R, H, HRCII-C J	6.0	2122EB-FA_-__	2122EB-FD_-__	PE-II

[1] The catalog numbers listed are not complete:

• Select the control voltage type from table on page 205 (e.g., 2122EB-BABD).

• Select horsepower from table on page 206 (e.g., 2122EB-BABD-31).

• If power fuse will NOT be selected, select fuse clip from table above. Then select clip designator from table on page 207 (e.g., 2122EB-BABD-31-24J).

• If power fuse WILL be selected, first select clip designator from table on page 207 (e.g., 2122EB-BABD-31_-20J). Then select power fuse from table on

page 207 (e.g., 2122EB-BABD-31GT-20J).

• For fuse rating based on load horsepower, see publication 2100-TD003x-EN-P.

The catalog numbers listed include an external reset button for the overload relay. To order catalog numbers without the external reset button, replace the letter

"A" with the letter "K" (e.g., 2122EB-BK_-_) or replace the letter "D" with the letter "J" (e.g., 2112EB-BJ_-_).

[2] Available on 480 and 600 Volt applications only.

[3] If low speed full load current is below 77A, a special starter is required. Contact your local Rockwell Automation Sales Office.

For Options, Modifications, and Accessories, see pages 101-117 43
