1 Vertical Sections

?Maximum SC shipping block is one (1) vertical section.?

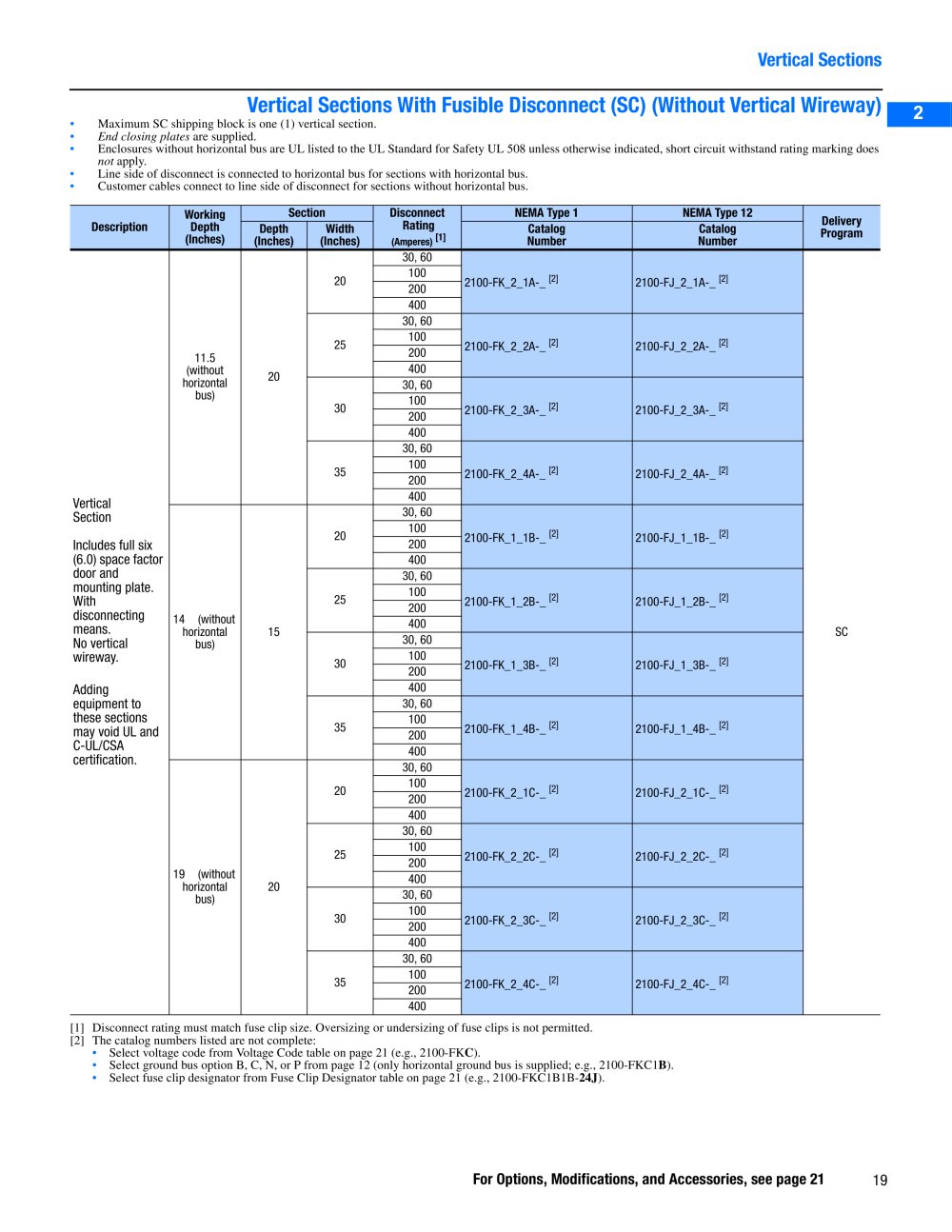

CENTERLINE® Motor Control Centers - 5071 Vertical Sections With Fusible Disconnect (SC) (Without Vertical Wireway)

2

End closing plates are supplied.?Enclosures without horizontal bus are UL listed to the UL Standard for Safety UL 508 unless otherwise indicated, short circuit withstand rating marking does not apply.?Line side of disconnect is connected to horizontal bus for sections with horizontal bus.?Customer cables connect to line side of disconnect for sections without horizontal bus.

345678 91011 121314 15161718191520

WorkingDepth(Inches) Section Disconnect Rating NEMA Type 1 NEMA Type 12 Description Depth (Inches) Width (Inches) CatalogNumber CatalogNumber DeliveryProgram
(Amperes) [1] 30, 60 20 100 200 2100-FK_2_1A-_
[2] 2100-FJ_2_1A-_
[2] 400 30, 60 25 100 200 2100-FK_2_2A-_
[2] 2100-FJ_2_2A-_
[2] 11.5 (without horizontal bus) 20 400 30, 60 30 100 200 2100-FK_2_3A-_
[2] 2100-FJ_2_3A-_
[2] 400 30, 60 35 100 200 2100-FK_2_4A-_
[2] 2100-FJ_2_4A-_
[2]

Vertical SectionIncludes full six (6.0) space factor door and mounting plate. With disconnecting means. No vertical wireway.Adding equipment to these sections may void UL and C-UL/CSA certification.

400 30, 60 20 100 200 2100-FK_1_1B-_
[2] 2100-FJ_1_1B-_
[2] 400 30, 60 25 100 200 2100-FK_1_2B-_
[2] 2100-FJ_1_2B-_
[2] 14 (without horizontal bus) 15 400 30, 60 SC 30 100 200 2100-FK_1_3B-_
[2] 2100-FJ_1_3B-_
[2] 400 30, 60 35 100 200 2100-FK_1_4B-_
[2] 2100-FJ_1_4B-_
[2] 400 30, 60 20 100 200 2100-FK_2_1C-_
[2] 2100-FJ_2_1C-_
[2] 400 30, 60 25 100 200 2100-FK_2_2C-_
[2] 2100-FJ_2_2C-_
[2] 19 (without horizontalbus) 20 400 30, 60 30 100 200 2100-FK_2_3C-_
[2] 2100-FJ_2_3C-_
[2] 400 30, 60 35 100 200 2100-FK_2_4C-_
[2] 2100-FJ_2_4C-_
[2] 400 [1]Disconnect rating must match fuse clip size. Oversizing or undersizing of fuse clips is not permitted. [2]The catalog numbers listed are not complete:?Select voltage code from Voltage Code table on page 21 (e.g., 2100-FK C ).?Select ground bus option B, C, N, or P from page 12 (only horizontal ground bus is supplied; e.g., 2100-FKC1 B ).?Select fuse clip designator from Fuse Clip Designator table on page 21 (e.g., 2100-FKC1B1B- 24J ).

For Options, Modifications, and Accessories, see page 21 19
