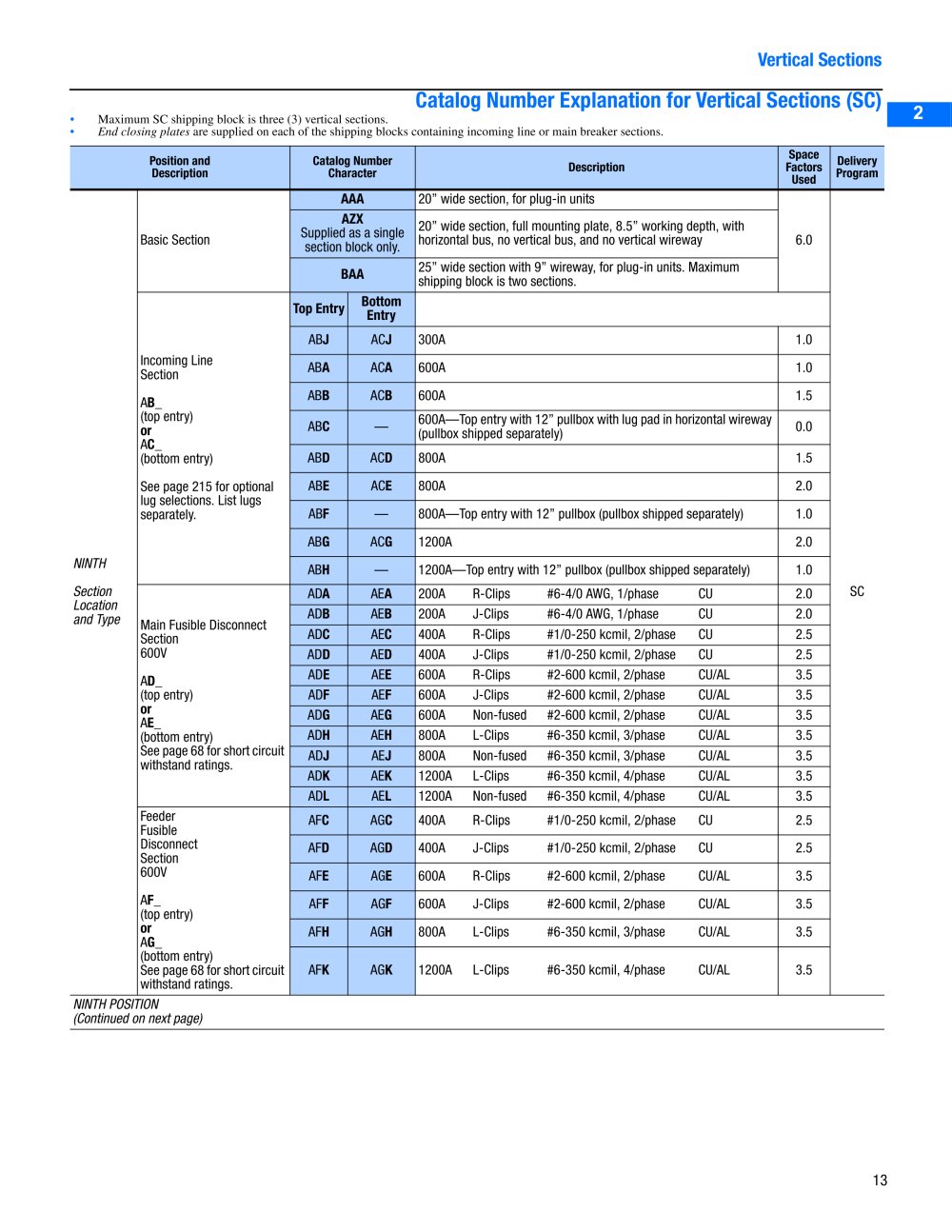

Vertical Sections

Catalog Number Explanation for Vertical Sections (SC)

Maximum SC shipping block is three (3) vertical sections.

End closing plates are supplied on each of the shipping blocks containing incoming line or main breaker sections.


Position and Description		Catalog Number Character		Description				Space Factors Used	Delivery Program
		AAA		20" wide section, for plug-in units
	Basic Section	AZX Supplied as a single section block only.		20" wide section, full mounting plate, 8.5" working depth, with horizontal bus, no vertical bus, and no vertical wireway				6.0
		BAA		25" wide section with 9" wireway, for plug-in units. Maximum shipping block is two sections.
		Top Entry	Bottom Entry
		ABJ	ACJ	300A				1.0
	Incoming Line Section	ABA	ACA	600A				1.0
	AB_	ABB	ACB	600A				1.5
	(top entry) or AC_ (bottom entry)	ABC	—	600A—Top entry with 12" pullbox with lug pad in horizontal wireway (pullbox shipped separately)				0.0
	(top entry) or AC_ (bottom entry)	ABD	ACD	800A				1.5
	See page 215 for optional lug selections. List lugs separately.	ABE	ACE	800A				2.0
		ABF	—	800A—Top entry with 12" pullbox (pullbox shipped separately)				1.0
		ABG	AC G	1200A				2.0
NINTH		ABH	—	1200A—Top entry with 12" pullbox (pullbox shipped separately)				1.0
Section Location and Type		ADA	AEA	200A	R-Clips	#6-4/0 AWG, 1/phase	CU	2.0	SC
	Main Fusible Disconnect Section	ADB	AEB	200A	J-Clips	#6-4/0 AWG, 1/phase	CU	2.0
	Main Fusible Disconnect Section	ADC	AEC	400A	R-Clips	#1/0-250 kcmil, 2/phase	CU	2.5
	600V	ADD	AED	400A	J-Clips	#1/0-250 kcmil, 2/phase	CU	2.5
	AD_	ADE	AEE	600A	R-Clips	#2-600 kcmil, 2/phase	CU/AL	3.5
	(top entry)	ADF	AEF	600A	J-Clips	#2-600 kcmil, 2/phase	CU/AL	3.5
	or AE_ (bottom entry)	ADG	AEG	600A	Non-fused	#2-600 kcmil, 2/phase	CU/AL	3.5
	or AE_ (bottom entry)	ADH	AEH	800A	L-Clips	#6-350 kcmil, 3/phase	CU/AL	3.5
	See page 68 for short circuit withstand ratings.	ADJ	AEJ	800A	Non-fused	#6-350 kcmil, 3/phase	CU/AL	3.5
	See page 68 for short circuit withstand ratings.	ADK	AEK	1200A	L-Clips	#6-350 kcmil, 4/phase	CU/AL	3.5
		ADL	AEL	1200A	Non-fused	#6-350 kcmil, 4/phase	CU/AL	3.5
	Feeder Fusible	AFC	AGC	400A	R-Clips	#1/0-250 kcmil, 2/phase	CU	2.5
	Disconnect Section	AFD	AGD	400A	J-Clips	#1/0-250 kcmil, 2/phase	CU	2.5
	600V	AFE	AGE	600A	R-Clips	#2-600 kcmil, 2/phase	CU/AL	3.5
	AF_ (top entry) or AG_	AFF	AGF	600A	J-Clips	#2-600 kcmil, 2/phase	CU/AL	3.5
	AF_ (top entry) or AG_	AFH	AG H	800A	L-Clips	#6-350 kcmil, 3/phase	CU/AL	3.5
	(bottom entry) See page 68 for short circuit withstand ratings.	AFK	AGK	1200A	L-Clips	#6-350 kcmil, 4/phase	CU/AL	3.5

NINTH POSITION (Continued on next page)
