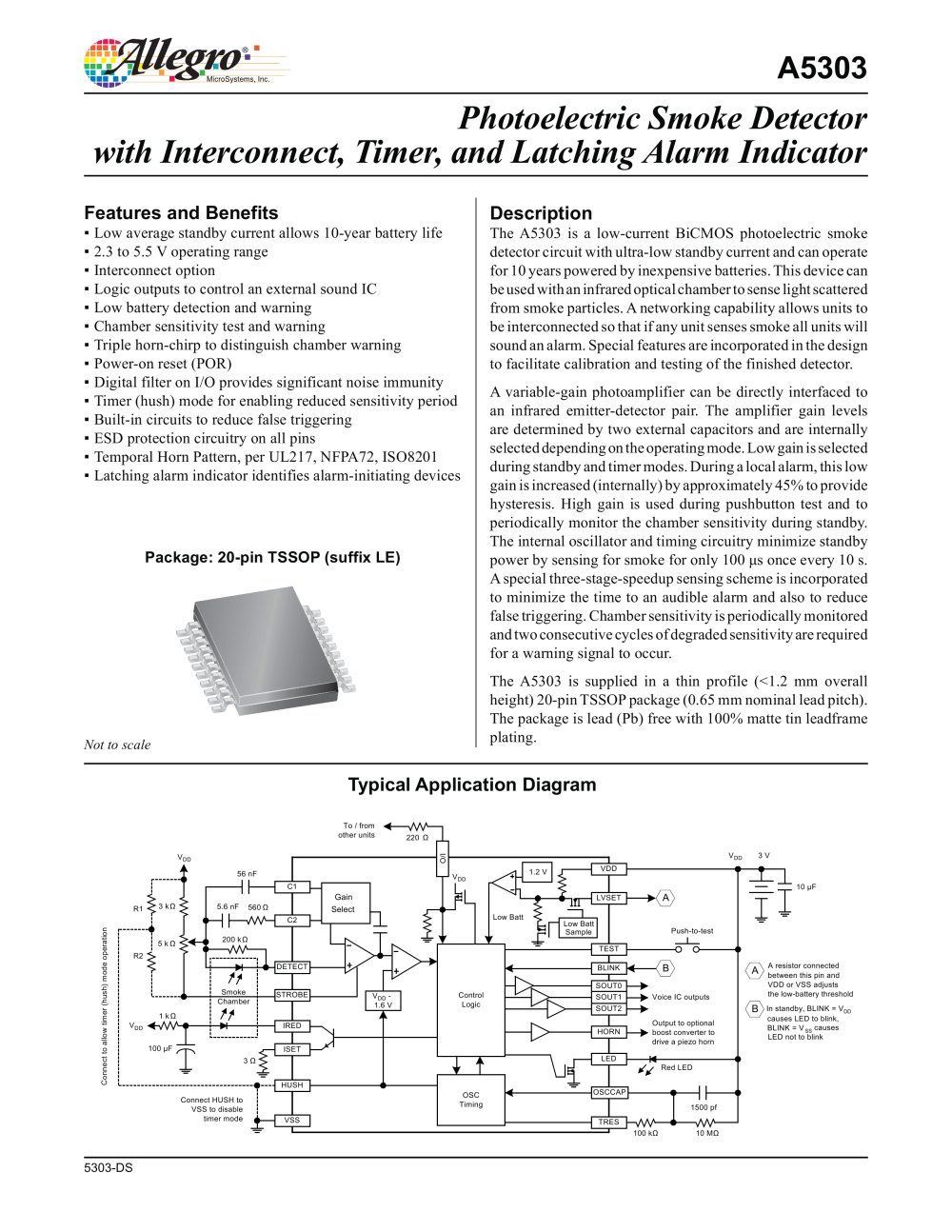

A5303: Photoelectric Smoke Detector with Interconnect, Timer, and Latching Alarm Indicator - ALLEGRO MICROSYSTEMS - #1

Text version of the page
