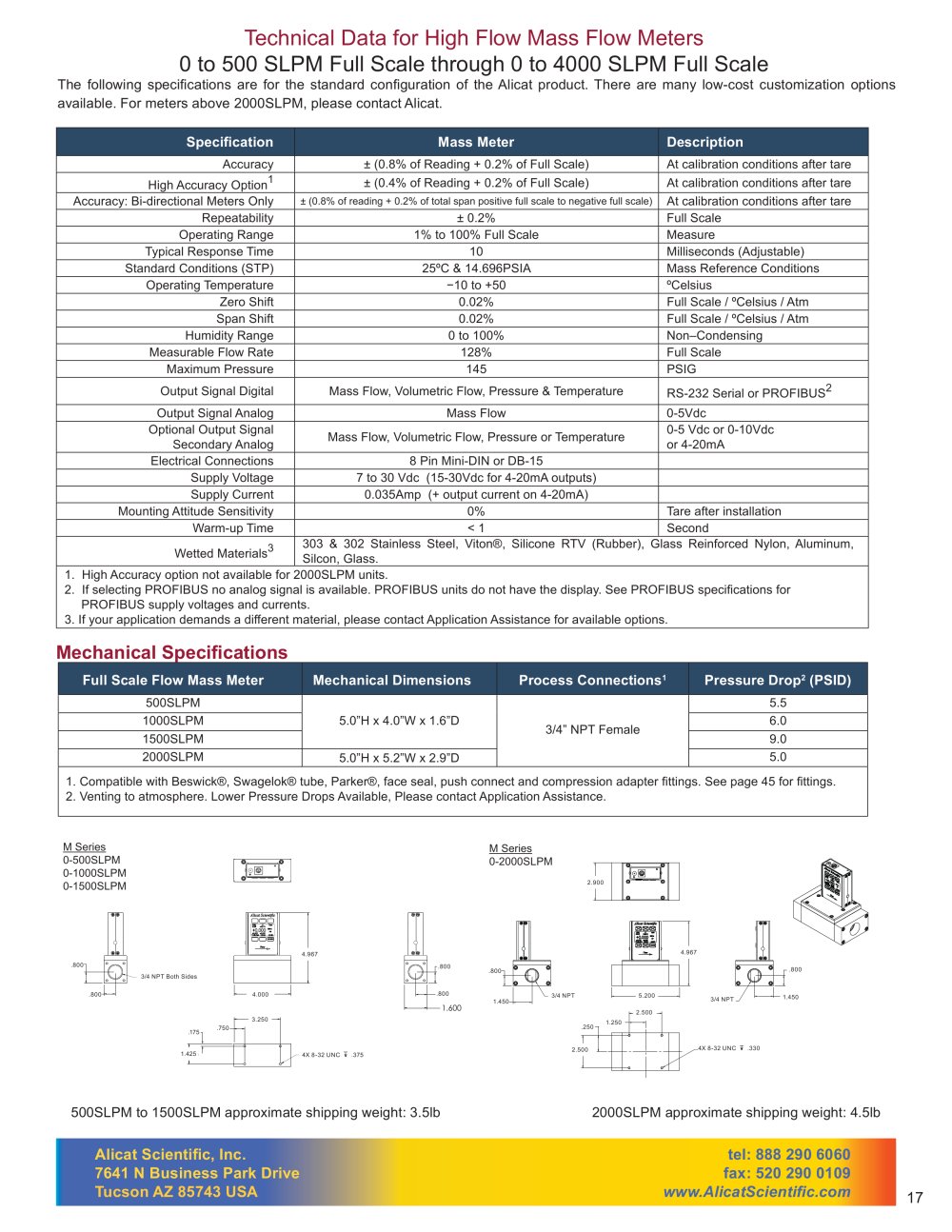

Alicat Scientifi c, Inc. tel. 888. 290. 6060 2045 N Forbes Blvd. Bldg 103 fax. 520. 290. 0109 Tucson AZ 85745 USA www.AlicatScientifi c.com 17 Specifi cation Mass Meter Description Accuracy ± (0.8% of Reading + 0.2% of Full Scale) At calibration conditions after tare High Accuracy Option1 ± (0.4% of Reading + 0.2% of Full Scale) At calibration conditions after tare Accuracy: Bi-directional Meters Only ± (0.8% of reading + 0.2% of total span positive full scale to negative full scale) At calibration conditions after tare Repeatability ± 0.2% Full Scale Operating Range 1% to 100% Full Scale Measure Typical Response Time 10 Milliseconds (Adjustable) Standard Conditions (STP) 25ºC & 14.696PSIA Mass Reference Conditions Operating Temperature -10 to +50 ºCelsius Zero Shift 0.02% Full Scale / ºCelsius / Atm Span Shift 0.02% Full Scale / ºCelsius / Atm Humidity Range 0 to 100% Non–Condensing Measurable Flow Rate 128% Full Scale Maximum Pressure 145 PSIG Output Signal Digital Mass Flow, Volumetric Flow, Pressure & Temperature RS-232 Serial or PROFIBUS2 Output Signal Analog Mass Flow 0-5Vdc Optional Output Signal Secondary Analog Mass Flow, Volumetric Flow, Pressure or Temperature 0-5 Vdc or 0-10Vdc or 4-20mA Electrical Connections 8 Pin Mini-DIN or DB-15 Supply Voltage 7 to 30 Vdc (15-30Vdc for 4-20mA outputs) Supply Current 0.035Amp (+ output current on 4-20mA) Mounting Attitude Sensitivity 0% Tare after installation Warm-up Time < 1 Second Wetted Materials3 303 & 302 Stainless Steel, Viton®, Silicone RTV (Rubber), Glass Reinforced Nylon, Aluminum, Silcon, Glass. 1. High Accuracy option not available for 2000SLPM units. 2. If selecting PROFIBUS no analog signal is available. PROFIBUS units do not have the display. See PROFIBUS specifi cations for PROFIBUS supply voltages and currents. 3. If your application demands a different material, please contact Application Assistance for available options. Full Scale Flow Mass Meter Mechanical Dimensions Process Connections1 Pressure Drop2 (PSID) 500SLPM 5.0”H x 4.0”W x 1.6”D 3/4” NPT Female 5.5 1000SLPM 6.0 1500SLPM 9.0 2000SLPM 5.0”H x 5.2”W x 2.9”D 5.0 1. Compatible with Beswick®, Swagelok® tube, Parker®, face seal, push connect and compression adapter fi ttings. See page 45 for fi ttings. 2. Venting to atmosphere. Lower Pressure Drops Available, Please contact Application Assistance. Mechanical Specifi cations Technical Data for High Flow Mass Flow Meters 0 to 500 SLPM Full Scale through 0 to 4000 SLPM Full Scale The following specifi cations are for the standard confi guration of the Alicat product. There are many low-cost customization options available. For meters above 2000SLPM, please contact Alicat. 500SLPM to 1500SLPM approximate shipping weight: 3.5lb 2000SLPM approximate shipping weight: 4.5lb .......... .......... .......... .......... ...................... .... ........ .......... .......... ........ .......... .......... ...... ........ ........ ...... ........ .......... M Series 0-2000SLPM 4X 8-32 UNC „¦v .330 2.500 5.200 2.500 .250 1.450 .800 3/4 NPT 2.900 4.967 1.450 .800 1.250 3/4 NPT M Series 0-500SLPM 0-1000SLPM 0-1500SLPM ........ ........ .................... ................ .......... ........ ........ .......... .......... .......... .......... ........ ........ .......................... .......... 4X 8-32 UNC „¦v .375 .800 .800 .800 .800 4.967 3/4 NPT Both Sides 4.000 3.250 1.425 .175 .750 Alicat Scientifi c, Inc. tel: 888 290 6060 2045 N Forbes Blvd. Bldg 103 fax: 520 290 0109 Tucson AZ 85745 USA www.AlicatScientifi c.com Alicat Scientifi c, Inc. tel: 888 290 6060 7641 N Business Park Drive fax: 520 290 0109 Tucson AZ 85743 USA www.AlicatScientifi c.com
