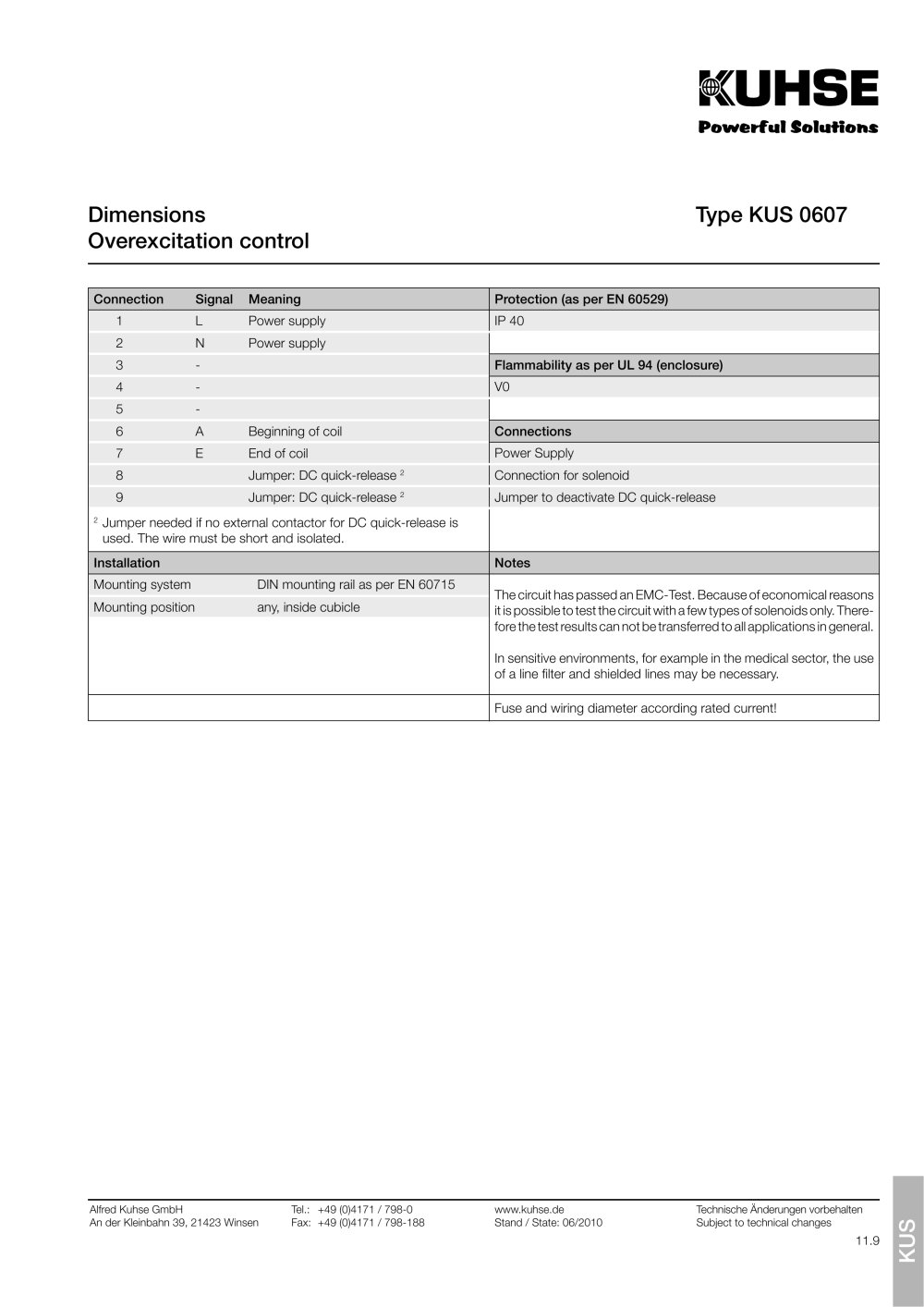

11.9 Alfred Kuhse GmbH Tel.: +49 (0)4171 / 798-0 www.kuhse.de Technische Änderungen vorbehalten An der Kleinbahn 39, 21423 Winsen Fax: +49 (0)4171 / 798-188 Stand / State: 06/2010 Subject to technical changes Dimensions Overexcitation control Type KUS 0607 Connection Signal Meaning Protection (as per EN 60529) 1 L Power supply IP 40 2 N Power supply 3 - Flammability as per UL 94 (enclosure) 4 - V0 5 - 6 A Beginning of coil Connections 7 E End of coil Power Supply 8 Jumper: DC quick-release 2 Connection for solenoid 9 Jumper: DC quick-release 2 Jumper to deactivate DC quick-release 2 Jumper needed if no external contactor for DC quick-release is used. The wire must be short and isolated. Installation Notes Mounting system DIN mounting rail as per EN 60715 The circuit has passed an EMC-Test. Because of economical reasons it is possible to test the circuit with a few types of solenoids only. Therefore the test results can not be transferred to all applications in general. In sensitive environments, for example in the medical sector, the use of a line fi lter and shielded lines may be necessary. Mounting position any, inside cubicle Fuse and wiring diameter according rated current! KUS
