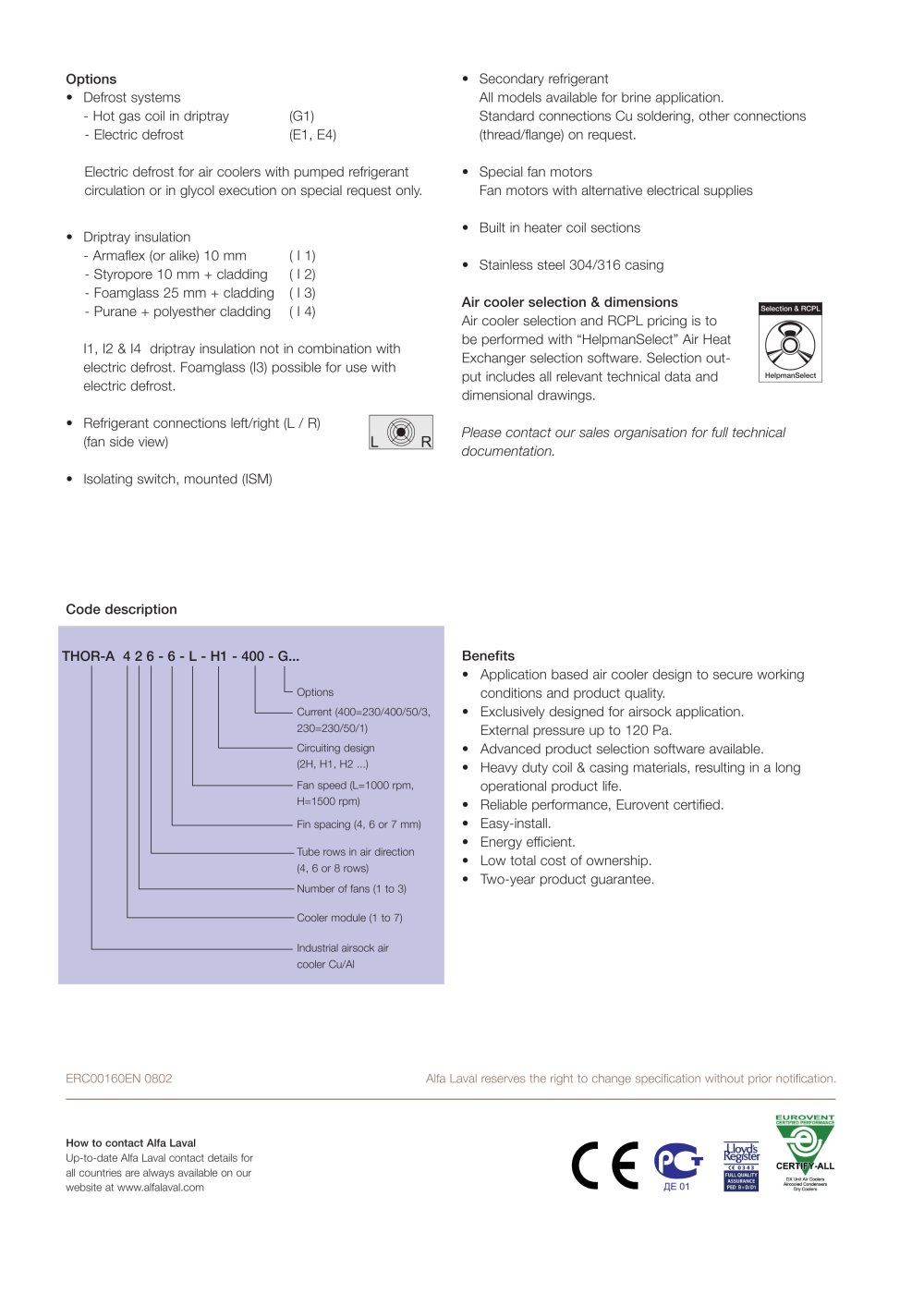

How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com ERC00160EN 0802 Options • Defrost systems - Hot gas coil in driptray (G1) - Electric defrost (E1, E4) Electric defrost for air coolers with pumped refrigerant circulation or in glycol execution on special request only. • Driptray insulation - Armaflex (or alike) 10 mm ( I 1) - Styropore 10 mm + cladding ( I 2) - Foamglass 25 mm + cladding ( I 3) - Purane + polyesther cladding ( I 4) I1, I2 & I4 driptray insulation not in combination with electric defrost. Foamglass (I3) possible for use with electric defrost. • Refrigerant connections left/right (L / R) (fan side view) • Isolating switch, mounted (ISM) Code description • Secondary refrigerant All models available for brine application. Standard connections Cu soldering, other connections (thread/flange) on request. • Special fan motors Fan motors with alternative electrical supplies • Built in heater coil sections • Stainless steel 304/316 casing Air cooler selection & dimensions Air cooler selection and RCPL pricing is to be performed with “HelpmanSelect” Air Heat Exchanger selection software. Selection output includes all relevant technical data and dimensional drawings. Please contact our sales organisation for full technical documentation. Benefits • Application based air cooler design to secure working conditions and product quality. • Exclusively designed for airsock application. External pressure up to 120 Pa. • Advanced product selection software available. • Heavy duty coil & casing materials, resulting in a long operational product life. • Reliable performance, Eurovent certified. • Easy-install. • Energy efficient. • Low total cost of ownership. • Two-year product guarantee. THOR-A 4 2 6 - 6 - L - H1 - 400 - G... Options Current (400=230/400/50/3, 230=230/50/1) Circuiting design (2H, H1, H2 ...) Fin spacing (4, 6 or 7 mm) Tube rows in air direction (4, 6 or 8 rows) Number of fans (1 to 3) Cooler module (1 to 7) Industrial airsock air cooler Cu/Al Alfa Laval reserves the right to change specification without prior notification. Fan speed (L=1000 rpm, H=1500 rpm)
