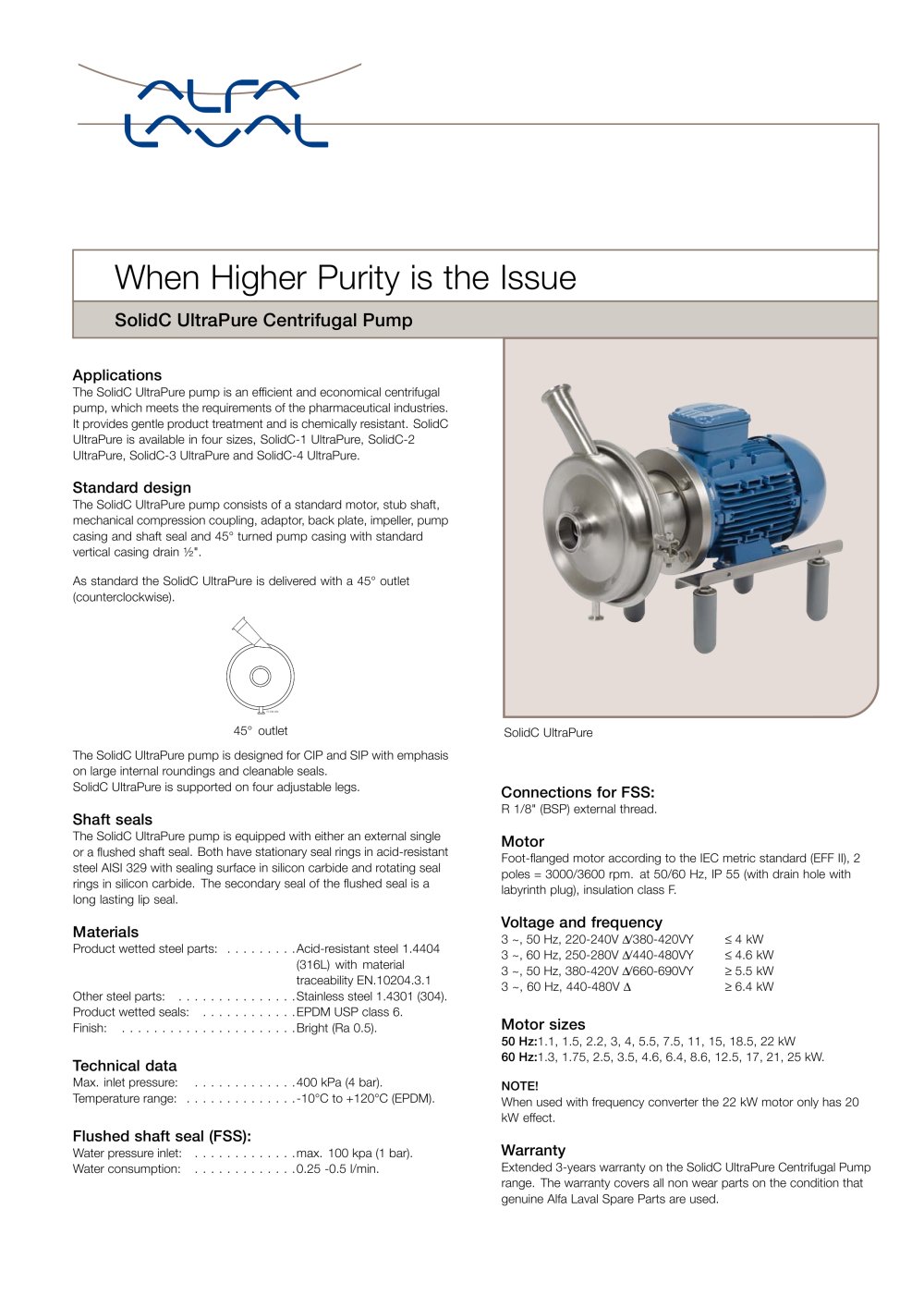

. kyWhen Higher Purity is the Issue SolidC UltraPure Centrifugal Pump SolidC UltraPure . Applications The SolidC UltraPure pump is an efficient and economical centrifugal pump, which meets the requirements of the pharmaceutical industries. It provides gentle product treatment and is chemically resistant. SolidC UltraPure is available in four sizes, SolidC-1 UltraPure, SolidC-2 UltraPure, SolidC-3 UltraPure and SolidC-4 UltraPure. Standard design The SolidC UltraPure pump consists of a standard motor, stub shaft, mechanical compression coupling, adaptor, back plate, impeller, pump casing and shaft seal and 45° turned pump casing with standard vertical casing drain ½". As standard the SolidC UltraPure is delivered with a 45° outlet (counterclockwise). 45° outlet The SolidC UltraPure pump is designed for CIP and SIP with emphasis on large internal roundings and cleanable seals. SolidC UltraPure is supported on four adjustable legs. Shaft seals The SolidC UltraPure pump is equipped with either an external single or a flushed shaft seal. Both have stationary seal rings in acid-resistant steel AISI 329 with sealing surface in silicon carbide and rotating seal rings in silicon carbide. The secondary seal of the flushed seal is a long lasting lip seal. Materials Product wetted steel parts: . . . . . . . . .Acid-resistant steel 1.4404 (316L) with material traceability EN.10204.3.1 Other steel parts: . . . . . . . . . . . . . . .Stainless steel 1.4301 (304). Product wetted seals: . . . . . . . . . . . .EPDM USP class 6. Finish: . . . . . . . . . . . . . . . . . . . . . .Bright (Ra 0.5). Technical data Max. inlet pressure: . . . . . . . . . . . . .400 kPa (4 bar). Temperature range: . . . . . . . . . . . . . .-10°C to +120°C (EPDM). Flushed shaft seal (FSS): Water pressure inlet: . . . . . . . . . . . . .max. 100 kpa (1 bar). Water consumption: . . . . . . . . . . . . .0.25 -0.5 l/min. Connections for FSS: R 1/8" (BSP) external thread. Motor Foot-flanged motor according to the IEC metric standard (EFF II), 2 poles = 3000/3600 rpm. at 50/60 Hz, IP 55 (with drain hole with labyrinth plug), insulation class F. Voltage and frequency 3 ~, 50 Hz, 220-240V Ä/380-420VY 4 kW 3 ~, 60 Hz, 250-280V Ä/440-480VY 4.6 kW 3 ~, 50 Hz, 380-420V Ä/660-690VY 5.5 kW 3 ~, 60 Hz, 440-480VÄ 6.4 kW Motor sizes 50 Hz:1.1, 1.5, 2.2, 3, 4, 5.5, 7.5, 11, 15, 18.5, 22 kW 60 Hz:1.3, 1.75, 2.5, 3.5, 4.6, 6.4, 8.6, 12.5, 17, 21, 25 kW. NOTE! When used with frequency converter the 22 kW motor only has 20 kW effect. Warranty Extended 3-years warranty on the SolidC UltraPure Centrifugal Pump range. The warranty covers all non wear parts on the condition that genuine Alfa Laval Spare Parts are used.
Open the catalog to page 1Flow chart SolidC-1 UltraPure SolidC-2 UltraPure SolidC-4 UltraPure SolidC-3 UltraPure TD 241-047_1 SolidC-3 UltraPure SolidC-2 UltraPure SolidC-1 UltraPure TD 241-088_1 SolidC-4 UltraPure Connections (mm) Sanitary version SolidC-1 UltraPure Dl: 51 ISO TRI Dll: 38 Clamp Clamp Ml 13 13 Mll 13 13 SolidC-2 UltraPure Dl: 63.5 ISO TRI Dll: 38 Clamp Clamp Ml 13 13 Mll 13 13 SolidC-3 UltraPure Dl: 76.1 ISO TRI Dll: 38 Clamp Clamp Ml 13 13 Mll 13 13 SolidC-4 UltraPure Dl: 76.1 ISO TRI Dll: 51 Clamp Clamp Ml 29 29 Mll 13 13 900533/0
Open the catalog to page 3Options A. Impeller with reduced diameter. B. Motor for other voltage and/or frequency. C. 1500 rpm. motor. D. Flushed shaft seal. E. Product wetted seals of Fluorinated rubber (FPM) or FEP. F. Pump with shroud. G. Pump without legs. H. 0° outlet, see drawing below. I. No Drain. J. Finish product wetted surface Ra 0.8 ìm. K. Finish product wetted surface Ra 0.5 ìm (electropolished). - The final surface value will change after electropolishing. L. Surface finish certificate. M. SIP to 140°C. No Drain 0ooutlet Standard documentation package: - 3.1 certificate according to EN10204 - FDA...
