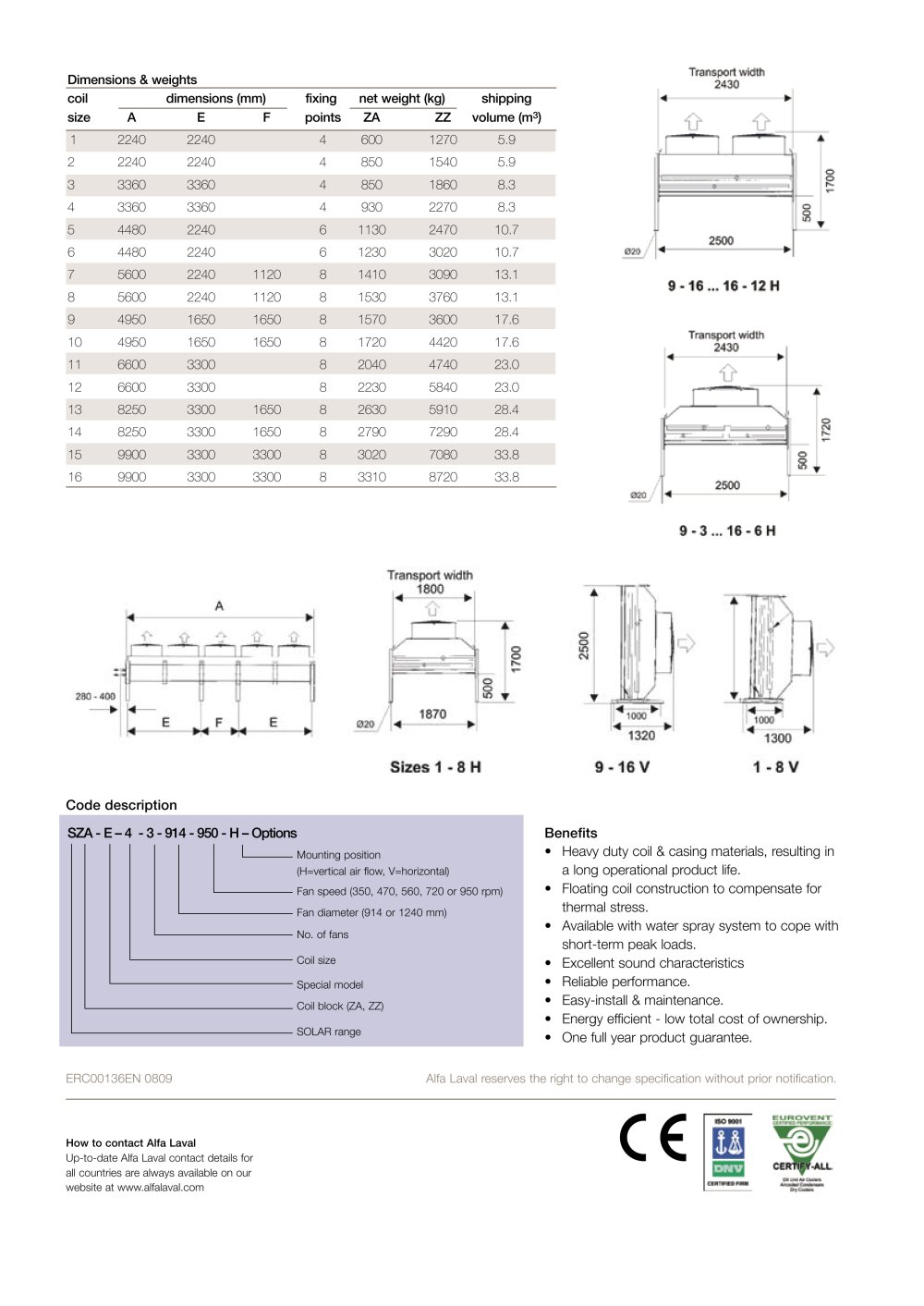

How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com ERC00136EN 0809 Alfa Laval reserves the right to change specification without prior notification. Code description Benefits • Heavy duty coil & casing materials, resulting in a long operational product life. • Floating coil construction to compensate for thermal stress. • Available with water spray system to cope with short-term peak loads. • Excellent sound characteristics • Reliable performance. • Easy-install & maintenance. • Energy efficient - low total cost of ownership. • One full year product guarantee. SZA - E – 4 - 3 - 914 - 950 - H – Options Mounting position (H=vertical air flow, V=horizontal) Fan speed (350, 470, 560, 720 or 950 rpm) Fan diameter (914 or 1240 mm) No. of fans Coil size Special model Coil block (ZA, ZZ) SOLAR range Dimensions & weights coil dimensions (mm) fixing net weight (kg) shipping size A E F points ZA ZZ volume (m3) 1 2240 2240 4 600 1270 5.9 2 2240 2240 4 850 1540 5.9 3 3360 3360 4 850 1860 8.3 4 3360 3360 4 930 2270 8.3 5 4480 2240 6 1130 2470 10.7 6 4480 2240 6 1230 3020 10.7 7 5600 2240 1120 8 1410 3090 13.1 8 5600 2240 1120 8 1530 3760 13.1 9 4950 1650 1650 8 1570 3600 17.6 10 4950 1650 1650 8 1720 4420 17.6 11 6600 3300 8 2040 4740 23.0 12 6600 3300 8 2230 5840 23.0 13 8250 3300 1650 8 2630 5910 28.4 14 8250 3300 1650 8 2790 7290 28.4 15 9900 3300 3300 8 3020 7080 33.8 16 9900 3300 3300 8 3310 8720 33.8
