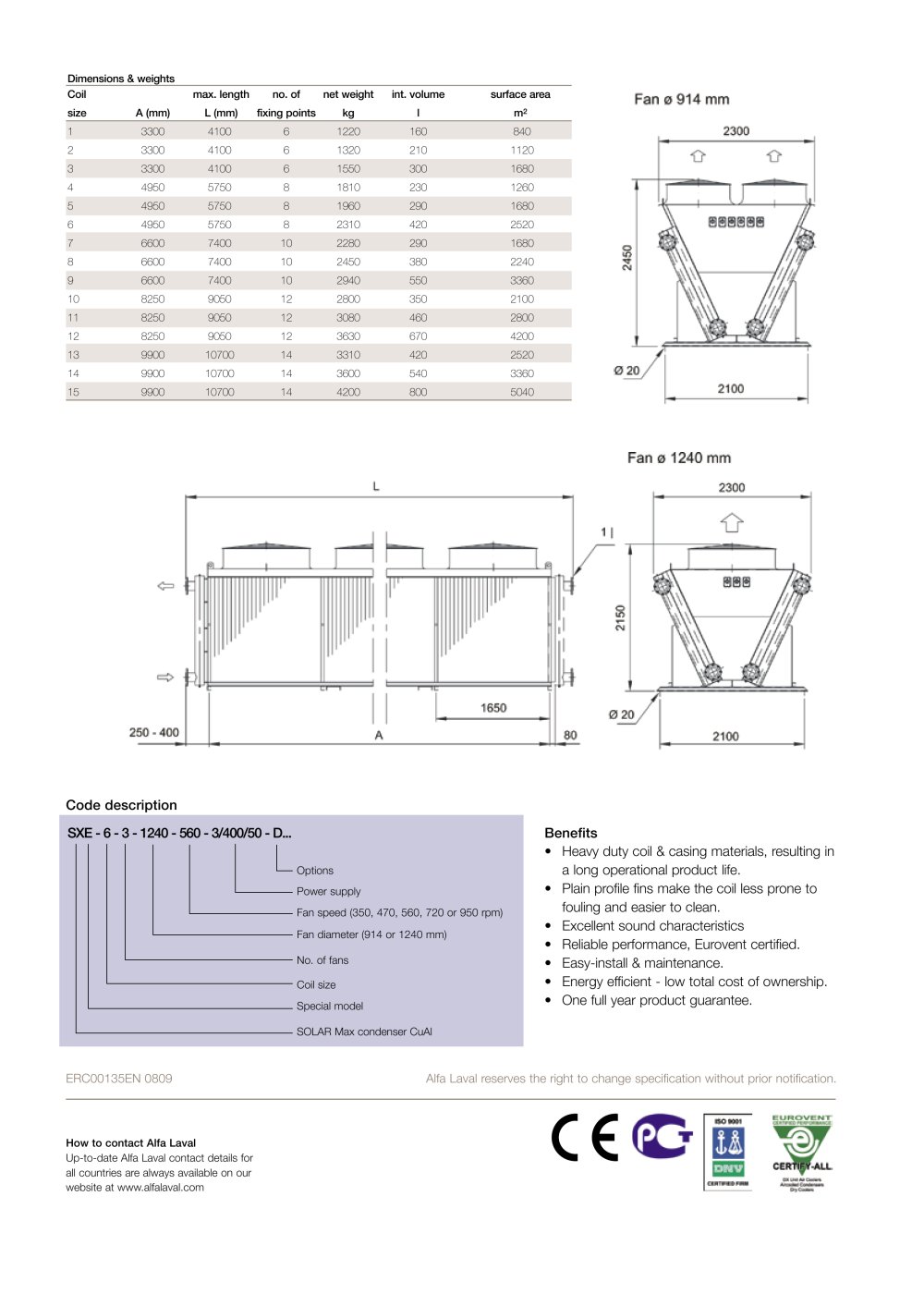

How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com ERC00135EN 0809 Alfa Laval reserves the right to change specification without prior notification. Dimensions & weights Coil max. length no. of net weight int. volume surface area size A (mm) L (mm) fixing points kg l m2 1 3300 4100 6 1220 160 840 2 3300 4100 6 1320 210 1120 3 3300 4100 6 1550 300 1680 4 4950 5750 8 1810 230 1260 5 4950 5750 8 1960 290 1680 6 4950 5750 8 2310 420 2520 7 6600 7400 10 2280 290 1680 8 6600 7400 10 2450 380 2240 9 6600 7400 10 2940 550 3360 10 8250 9050 12 2800 350 2100 11 8250 9050 12 3080 460 2800 12 8250 9050 12 3630 670 4200 13 9900 10700 14 3310 420 2520 14 9900 10700 14 3600 540 3360 15 9900 10700 14 4200 800 5040 Code description Benefits • Heavy duty coil & casing materials, resulting in a long operational product life. • Plain profile fins make the coil less prone to fouling and easier to clean. • Excellent sound characteristics • Reliable performance, Eurovent certified. • Easy-install & maintenance. • Energy efficient - low total cost of ownership. • One full year product guarantee. SXE - 6 - 3 - 1240 - 560 - 3/400/50 - D... Options Power supply Fan speed (350, 470, 560, 720 or 950 rpm) Fan diameter (914 or 1240 mm) No. of fans Coil size Special model SOLAR Max condenser CuAl
