Solar Junior - Air-cooled condensers – commercial range - Alfa Laval - #2

Text version of the page

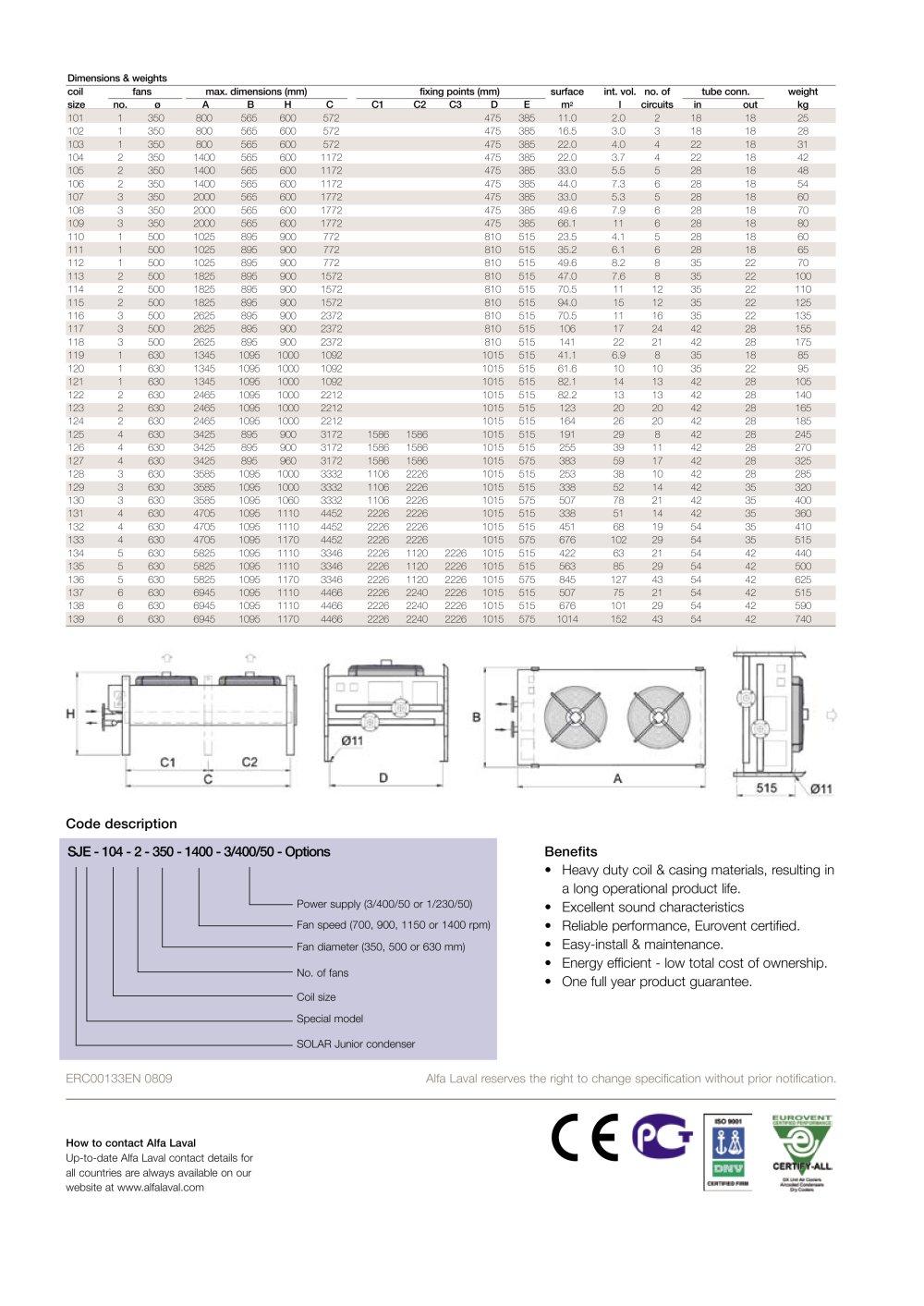

How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com ERC00133EN 0809 Alfa Laval reserves the right to change specification without prior notification. Dimensions & weights coil fans max. dimensions (mm) fixing points (mm) surface int. vol. no. of tube conn. weight size no. ø A B H C C1 C2 C3 D E m2 l circuits in out kg 101 1 350 800 565 600 572 475 385 11.0 2.0 2 18 18 25 102 1 350 800 565 600 572 475 385 16.5 3.0 3 18 18 28 103 1 350 800 565 600 572 475 385 22.0 4.0 4 22 18 31 104 2 350 1400 565 600 1172 475 385 22.0 3.7 4 22 18 42 105 2 350 1400 565 600 1172 475 385 33.0 5.5 5 28 18 48 106 2 350 1400 565 600 1172 475 385 44.0 7.3 6 28 18 54 107 3 350 2000 565 600 1772 475 385 33.0 5.3 5 28 18 60 108 3 350 2000 565 600 1772 475 385 49.6 7.9 6 28 18 70 109 3 350 2000 565 600 1772 475 385 66.1 11 6 28 18 80 110 1 500 1025 895 900 772 810 515 23.5 4.1 5 28 18 60 111 1 500 1025 895 900 772 810 515 35.2 6.1 6 28 18 65 112 1 500 1025 895 900 772 810 515 49.6 8.2 8 35 22 70 113 2 500 1825 895 900 1572 810 515 47.0 7.6 8 35 22 100 114 2 500 1825 895 900 1572 810 515 70.5 11 12 35 22 110 115 2 500 1825 895 900 1572 810 515 94.0 15 12 35 22 125 116 3 500 2625 895 900 2372 810 515 70.5 11 16 35 22 135 117 3 500 2625 895 900 2372 810 515 106 17 24 42 28 155 118 3 500 2625 895 900 2372 810 515 141 22 21 42 28 175 119 1 630 1345 1095 1000 1092 1015 515 41.1 6.9 8 35 18 85 120 1 630 1345 1095 1000 1092 1015 515 61.6 10 10 35 22 95 121 1 630 1345 1095 1000 1092 1015 515 82.1 14 13 42 28 105 122 2 630 2465 1095 1000 2212 1015 515 82.2 13 13 42 28 140 123 2 630 2465 1095 1000 2212 1015 515 123 20 20 42 28 165 124 2 630 2465 1095 1000 2212 1015 515 164 26 20 42 28 185 125 4 630 3425 895 900 3172 1586 1586 1015 515 191 29 8 42 28 245 126 4 630 3425 895 900 3172 1586 1586 1015 515 255 39 11 42 28 270 127 4 630 3425 895 960 3172 1586 1586 1015 575 383 59 17 42 28 325 128 3 630 3585 1095 1000 3332 1106 2226 1015 515 253 38 10 42 28 285 129 3 630 3585 1095 1000 3332 1106 2226 1015 515 338 52 14 42 35 320 130 3 630 3585 1095 1060 3332 1106 2226 1015 575 507 78 21 42 35 400 131 4 630 4705 1095 1110 4452 2226 2226 1015 515 338 51 14 42 35 360 132 4 630 4705 1095 1110 4452 2226 2226 1015 515 451 68 19 54 35 410 133 4 630 4705 1095 1170 4452 2226 2226 1015 575 676 102 29 54 35 515 134 5 630 5825 1095 1110 3346 2226 1120 2226 1015 515 422 63 21 54 42 440 135 5 630 5825 1095 1110 3346 2226 1120 2226 1015 515 563 85 29 54 42 500 136 5 630 5825 1095 1170 3346 2226 1120 2226 1015 575 845 127 43 54 42 625 137 6 630 6945 1095 1110 4466 2226 2240 2226 1015 515 507 75 21 54 42 515 138 6 630 6945 1095 1110 4466 2226 2240 2226 1015 515 676 101 29 54 42 590 139 6 630 6945 1095 1170 4466 2226 2240 2226 1015 575 1014 152 43 54 42 740 Code description Benefits • Heavy duty coil & casing materials, resulting in a long operational product life. • Excellent sound characteristics • Reliable performance, Eurovent certified. • Easy-install & maintenance. • Energy efficient - low total cost of ownership. • One full year product guarantee. SJE - 104 - 2 - 350 - 1400 - 3/400/50 - Options Power supply (3/400/50 or 1/230/50) Fan speed (700, 900, 1150 or 1400 rpm) Fan diameter (350, 500 or 630 mm) No. of fans Coil size Special model SOLAR Junior condenser
