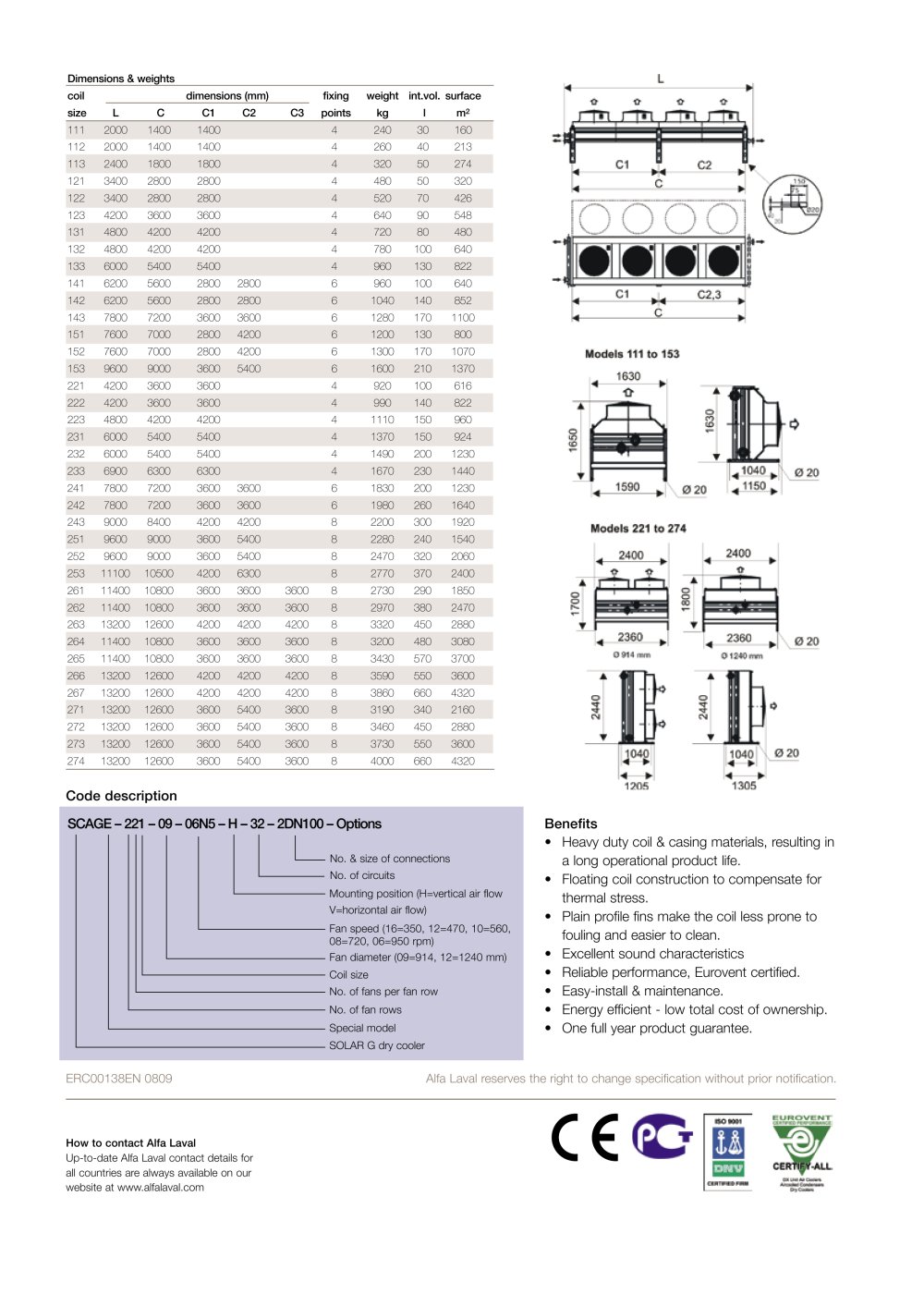

How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com ERC00138EN 0809 Alfa Laval reserves the right to change specification without prior notification. Code description Benefits • Heavy duty coil & casing materials, resulting in a long operational product life. • Floating coil construction to compensate for thermal stress. • Plain profile fins make the coil less prone to fouling and easier to clean. • Excellent sound characteristics • Reliable performance, Eurovent certified. • Easy-install & maintenance. • Energy efficient - low total cost of ownership. • One full year product guarantee. SCAGE – 221 – 09 – 06N5 – H – 32 – 2DN100 – Options Mounting position (H=vertical air flow V=horizontal air flow) Fan speed (16=350, 12=470, 10=560, 08=720, 06=950 rpm) Fan diameter (09=914, 12=1240 mm) Coil size No. of fans per fan row No. of fan rows Special model SOLAR G dry cooler No. of circuits No. & size of connections Dimensions & weights coil dimensions (mm) fixing weight int.vol. surface size L C C1 C2 C3 points kg l m2 111 2000 1400 1400 4 240 30 160 112 2000 1400 1400 4 260 40 213 113 2400 1800 1800 4 320 50 274 121 3400 2800 2800 4 480 50 320 122 3400 2800 2800 4 520 70 426 123 4200 3600 3600 4 640 90 548 131 4800 4200 4200 4 720 80 480 132 4800 4200 4200 4 780 100 640 133 6000 5400 5400 4 960 130 822 141 6200 5600 2800 2800 6 960 100 640 142 6200 5600 2800 2800 6 1040 140 852 143 7800 7200 3600 3600 6 1280 170 1100 151 7600 7000 2800 4200 6 1200 130 800 152 7600 7000 2800 4200 6 1300 170 1070 153 9600 9000 3600 5400 6 1600 210 1370 221 4200 3600 3600 4 920 100 616 222 4200 3600 3600 4 990 140 822 223 4800 4200 4200 4 1110 150 960 231 6000 5400 5400 4 1370 150 924 232 6000 5400 5400 4 1490 200 1230 233 6900 6300 6300 4 1670 230 1440 241 7800 7200 3600 3600 6 1830 200 1230 242 7800 7200 3600 3600 6 1980 260 1640 243 9000 8400 4200 4200 8 2200 300 1920 251 9600 9000 3600 5400 8 2280 240 1540 252 9600 9000 3600 5400 8 2470 320 2060 253 11100 10500 4200 6300 8 2770 370 2400 261 11400 10800 3600 3600 3600 8 2730 290 1850 262 11400 10800 3600 3600 3600 8 2970 380 2470 263 13200 12600 4200 4200 4200 8 3320 450 2880 264 11400 10800 3600 3600 3600 8 3200 480 3080 265 11400 10800 3600 3600 3600 8 3430 570 3700 266 13200 12600 4200 4200 4200 8 3590 550 3600 267 13200 12600 4200 4200 4200 8 3860 660 4320 271 13200 12600 3600 5400 3600 8 3190 340 2160 272 13200 12600 3600 5400 3600 8 3460 450 2880 273 13200 12600 3600 5400 3600 8 3730 550 3600 274 13200 12600 3600 5400 3600 8 4000 660 4320
