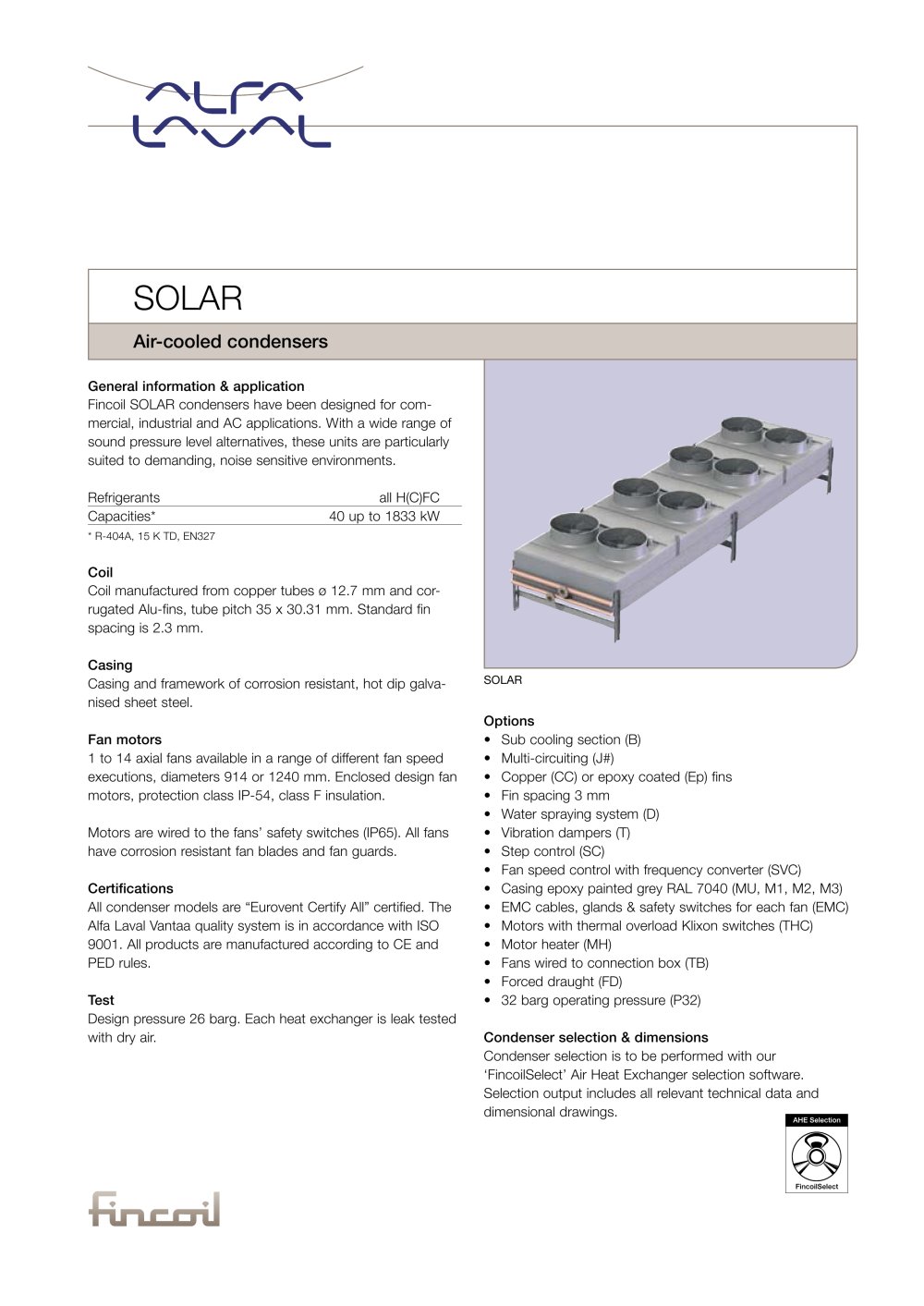

General information & application Fincoil SOLAR condensers have been designed for commercial, industrial and AC applications. With a wide range of sound pressure level alternatives, these units are particularly suited to demanding, noise sensitive environments. Refrigerants all H(C)FC Capacities* 40 up to 1833 kW * R-404A, 15 K TD, EN327 Coil Coil manufactured from copper tubes ø 12.7 mm and corrugated Alu-fins, tube pitch 35 x 30.31 mm. Standard fin spacing is 2.3 mm. Casing Casing and framework of corrosion resistant, hot dip galvanised sheet steel. Fan motors 1 to 14 axial fans available in a range of different fan speed executions, diameters 914 or 1240 mm. Enclosed design fan motors, protection class IP-54, class F insulation. Motors are wired to the fans’ safety switches (IP65). All fans have corrosion resistant fan blades and fan guards. Certifications All condenser models are “Eurovent Certify All” certified. The Alfa Laval Vantaa quality system is in accordance with ISO 9001. All products are manufactured according to CE and PED rules. Test Design pressure 26 barg. Each heat exchanger is leak tested with dry air. Options • Sub cooling section (B) • Multi-circuiting (J#) • Copper (CC) or epoxy coated (Ep) fins • Fin spacing 3 mm • Water spraying system (D) • Vibration dampers (T) • Step control (SC) • Fan speed control with frequency converter (SVC) • Casing epoxy painted grey RAL 7040 (MU, M1, M2, M3) • EMC cables, glands & safety switches for each fan (EMC) • Motors with thermal overload Klixon switches (THC) • Motor heater (MH) • Fans wired to connection box (TB) • Forced draught (FD) • 32 barg operating pressure (P32) Condenser selection & dimensions Condenser selection is to be performed with our ‘FincoilSelect’ Air Heat Exchanger selection software. Selection output includes all relevant technical data and dimensional drawings. SOLAR Air-cooled condensers SOLAR
