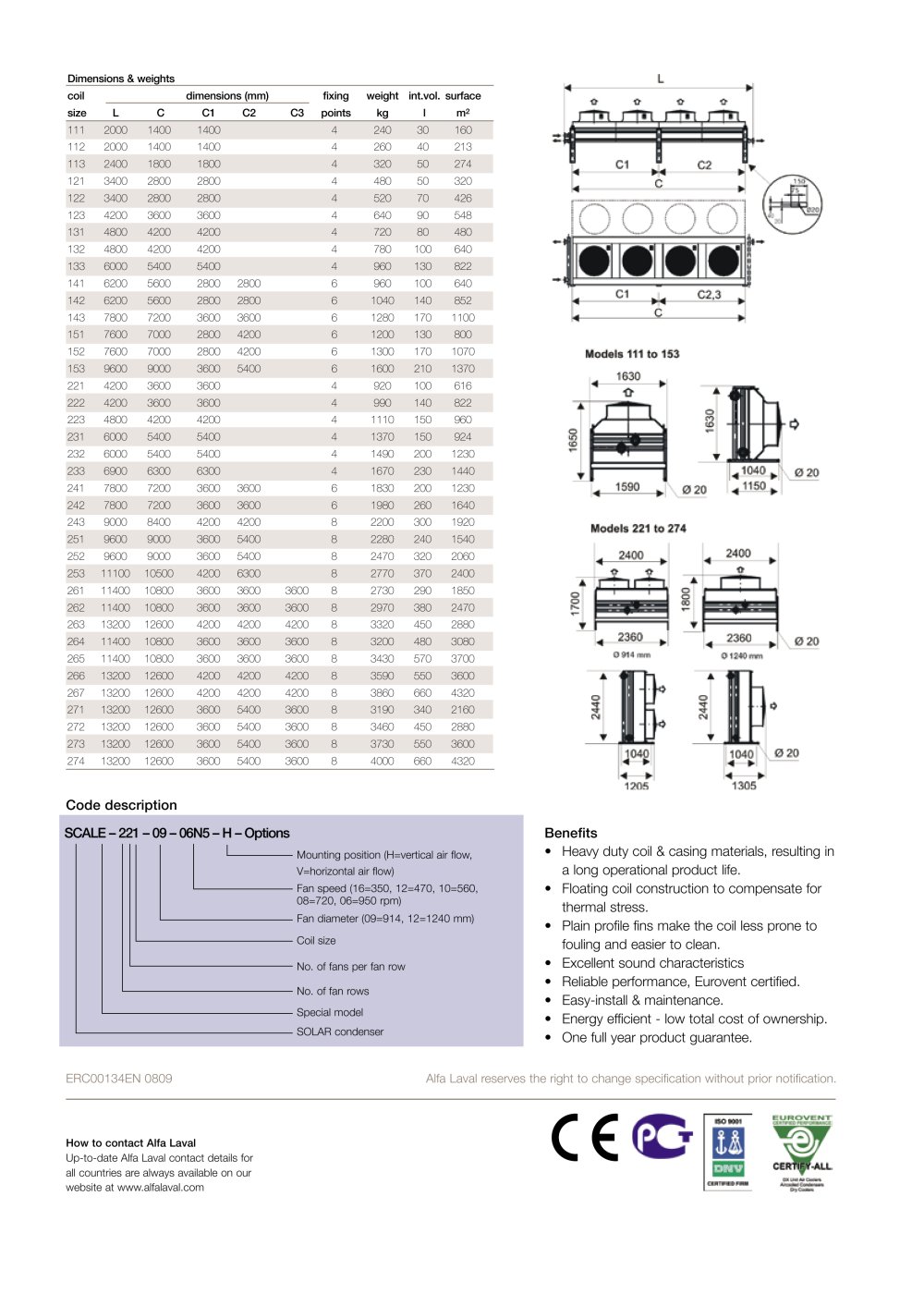

How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com ERC00134EN 0809 Alfa Laval reserves the right to change specification without prior notification. Dimensions & weights coil dimensions (mm) fixing weight int.vol. surface size L C C1 C2 C3 points kg l m2 111 2000 1400 1400 4 240 30 160 112 2000 1400 1400 4 260 40 213 113 2400 1800 1800 4 320 50 274 121 3400 2800 2800 4 480 50 320 122 3400 2800 2800 4 520 70 426 123 4200 3600 3600 4 640 90 548 131 4800 4200 4200 4 720 80 480 132 4800 4200 4200 4 780 100 640 133 6000 5400 5400 4 960 130 822 141 6200 5600 2800 2800 6 960 100 640 142 6200 5600 2800 2800 6 1040 140 852 143 7800 7200 3600 3600 6 1280 170 1100 151 7600 7000 2800 4200 6 1200 130 800 152 7600 7000 2800 4200 6 1300 170 1070 153 9600 9000 3600 5400 6 1600 210 1370 221 4200 3600 3600 4 920 100 616 222 4200 3600 3600 4 990 140 822 223 4800 4200 4200 4 1110 150 960 231 6000 5400 5400 4 1370 150 924 232 6000 5400 5400 4 1490 200 1230 233 6900 6300 6300 4 1670 230 1440 241 7800 7200 3600 3600 6 1830 200 1230 242 7800 7200 3600 3600 6 1980 260 1640 243 9000 8400 4200 4200 8 2200 300 1920 251 9600 9000 3600 5400 8 2280 240 1540 252 9600 9000 3600 5400 8 2470 320 2060 253 11100 10500 4200 6300 8 2770 370 2400 261 11400 10800 3600 3600 3600 8 2730 290 1850 262 11400 10800 3600 3600 3600 8 2970 380 2470 263 13200 12600 4200 4200 4200 8 3320 450 2880 264 11400 10800 3600 3600 3600 8 3200 480 3080 265 11400 10800 3600 3600 3600 8 3430 570 3700 266 13200 12600 4200 4200 4200 8 3590 550 3600 267 13200 12600 4200 4200 4200 8 3860 660 4320 271 13200 12600 3600 5400 3600 8 3190 340 2160 272 13200 12600 3600 5400 3600 8 3460 450 2880 273 13200 12600 3600 5400 3600 8 3730 550 3600 274 13200 12600 3600 5400 3600 8 4000 660 4320 Code description Benefits • Heavy duty coil & casing materials, resulting in a long operational product life. • Floating coil construction to compensate for thermal stress. • Plain profile fins make the coil less prone to fouling and easier to clean. • Excellent sound characteristics • Reliable performance, Eurovent certified. • Easy-install & maintenance. • Energy efficient - low total cost of ownership. • One full year product guarantee. SCALE – 221 – 09 – 06N5 – H – Options Mounting position (H=vertical air flow, V=horizontal air flow) Fan speed (16=350, 12=470, 10=560, 08=720, 06=950 rpm) Fan diameter (09=914, 12=1240 mm) Coil size No. of fans per fan row No. of fan rows Special model SOLAR condenser
