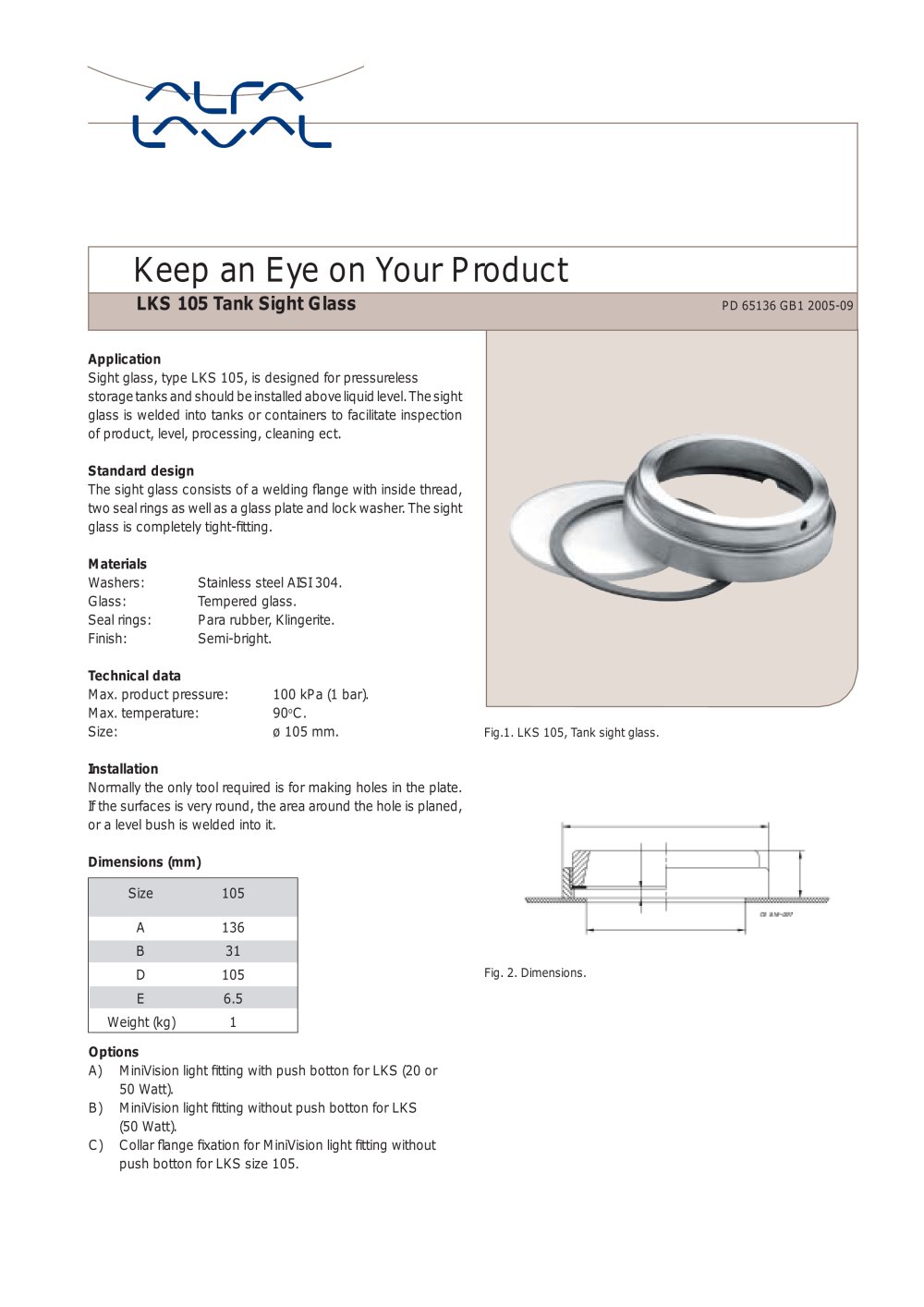

LKS 105 Tank Sight Glass PD 65136 GB1 2005-09 Keep an Eye on Your Product Fig.1. LKS 105, Tank sight glass. Application Sight glass, type LKS 105, is designed for pressureless storage tanks and should be installed above liquid level. The sight glass is welded into tanks or containers to facilitate inspection of product, level, processing, cleaning ect. Standard design The sight glass consists of a welding fl ange with inside thread, two seal rings as well as a glass plate and lock washer. The sight glass is completely tight-fi tting. Materials Washers: Stainless steel AISI 304. Glass: Tempered glass. Seal rings: Para rubber, Klingerite. Finish: Semi-bright. Technical data Max. product pressure: 100 kPa (1 bar). Max. temperature: 90oC. Size: ø 105 mm. Installation Normally the only tool required is for making holes in the plate. If the surfaces is very round, the area around the hole is planed, or a level bush is welded into it. Dimensions (mm) Size 105 A 136 B 31 D 105 E 6.5 Weight (kg) 1 Fig. 2. Dimensions. A D E B Options A) MiniVision light fi tting with push botton for LKS (20 or 50 Watt). B) MiniVision light fi tting without push botton for LKS (50 Watt). C) Collar fl ange fi xation for MiniVision light fi tting without push botton for LKS size 105.
