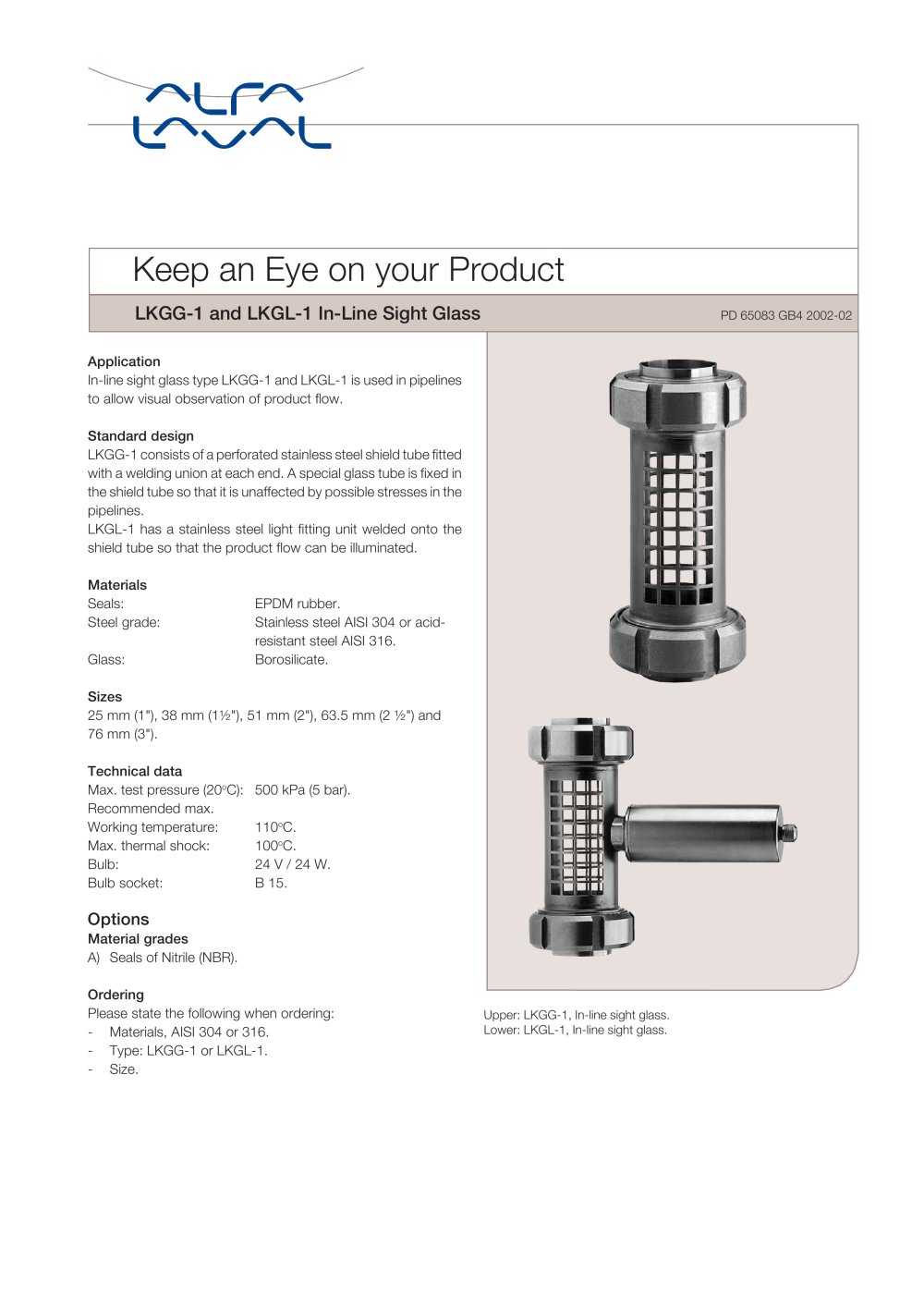

Keep an Eye on your Product LKGG-1 and LKGL-1 In-Line Sight Glass PD 65083 GB4 2002-02 Application In-line sight glass type LKGG-1 and LKGL-1 is used in pipelines to allow visual observation of product flow. Standard design LKGG-1 consists of a perforated stainless steel shield tube fitted with a welding union at each end. A special glass tube is fixed in the shield tube so that it is unaffected by possible stresses in the pipelines. LKGL-1 has a stainless steel light fitting unit welded onto the shield tube so that the product flow can be illuminated. Materials Seals: EPDM rubber. Steel grade: Stainless steel AISI 304 or acidresistant steel AISI 316. Glass: Borosilicate. Sizes 25 mm (1"), 38 mm (1½"), 51 mm (2"), 63.5 mm (2 ½") and 76 mm (3"). Technical data Max. test pressure (20oC): 500 kPa (5 bar). Recommended max. Working temperature: 110oC. Max. thermal shock: 100oC. Bulb: 24 V / 24 W. Bulb socket: B 15. Options Material grades A) Seals of Nitrile (NBR). Ordering Please state the following when ordering: - Materials, AISI 304 or 316. - Type: LKGG-1 or LKGL-1. - Size. Upper: LKGG-1, In-line sight glass. Lower: LKGL-1, In-line sight glass.
