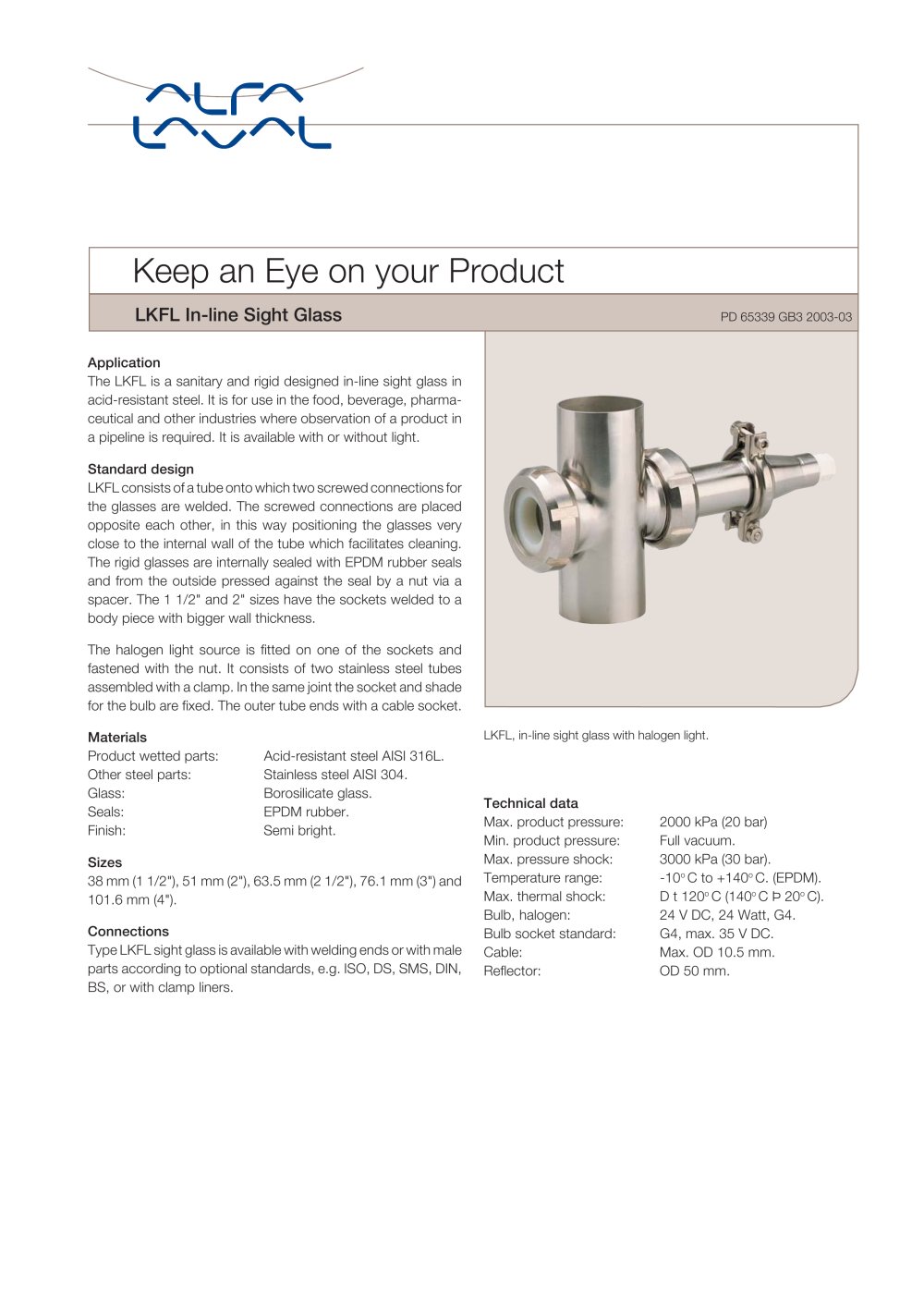

Keep an Eye on your Product LKFL In-line Sight Glass PD 65339 GB3 2003-03 LKFL, in-line sight glass with halogen light. Application The LKFL is a sanitary and rigid designed in-line sight glass in acid-resistant steel. It is for use in the food, beverage, pharmaceutical and other industries where observation of a product in a pipeline is required. It is available with or without light. Standard design LKFL consists of a tube onto which two screwed connections for the glasses are welded. The screwed connections are placed opposite each other, in this way positioning the glasses very close to the internal wall of the tube which facilitates cleaning. The rigid glasses are internally sealed with EPDM rubber seals and from the outside pressed against the seal by a nut via a spacer. The 1 1/2" and 2" sizes have the sockets welded to a body piece with bigger wall thickness. The halogen light source is fitted on one of the sockets and fastened with the nut. It consists of two stainless steel tubes assembled with a clamp. In the same joint the socket and shade for the bulb are fixed. The outer tube ends with a cable socket. Materials Product wetted parts: Acid-resistant steel AISI 316L. Other steel parts: Stainless steel AISI 304. Glass: Borosilicate glass. Seals: EPDM rubber. Finish: Semi bright. Sizes 38 mm (1 1/2"), 51 mm (2"), 63.5 mm (2 1/2"), 76.1 mm (3") and 101.6 mm (4"). Connections Type LKFL sight glass is available with welding ends or with male parts according to optional standards, e.g. ISO, DS, SMS, DIN, BS, or with clamp liners. Technical data Max. product pressure: 2000 kPa (20 bar) Min. product pressure: Full vacuum. Max. pressure shock: 3000 kPa (30 bar). Temperature range: -10o C to +140o C. (EPDM). Max. thermal shock: D t 120o C (140o C Þ 20o C). Bulb, halogen: 24 V DC, 24 Watt, G4. Bulb socket standard: G4, max. 35 V DC. Cable: Max. OD 10.5 mm. Reflector: OD 50 mm.
Open the catalog to page 1PD 65339 GB3 2002-02 The information contained herein is correct at the time of issue, but may be subject to change without prior notice. How to contact Alfa Laval Contact details for all countries are continually updated on our website. Please visit www.alfalaval.com to access the information direct. Dimensions (mm) Overall lenght A 2 (mm) Fig. 3. Dimensions, A 1 Fig. 4. Dimensions, A 2 A1 A1 B B C B B C A2 A2 I D I D I D I D I D I D Size 1½" 2" 2½" 3" 4" A1 103 152 152 205 205 B 50 66 64 73 91 C 179 194 191 199 244 ID 20 34 34 44 60 Weight (kg) 0.8 1.9 1.2 1.7 3.3 without light With light...
