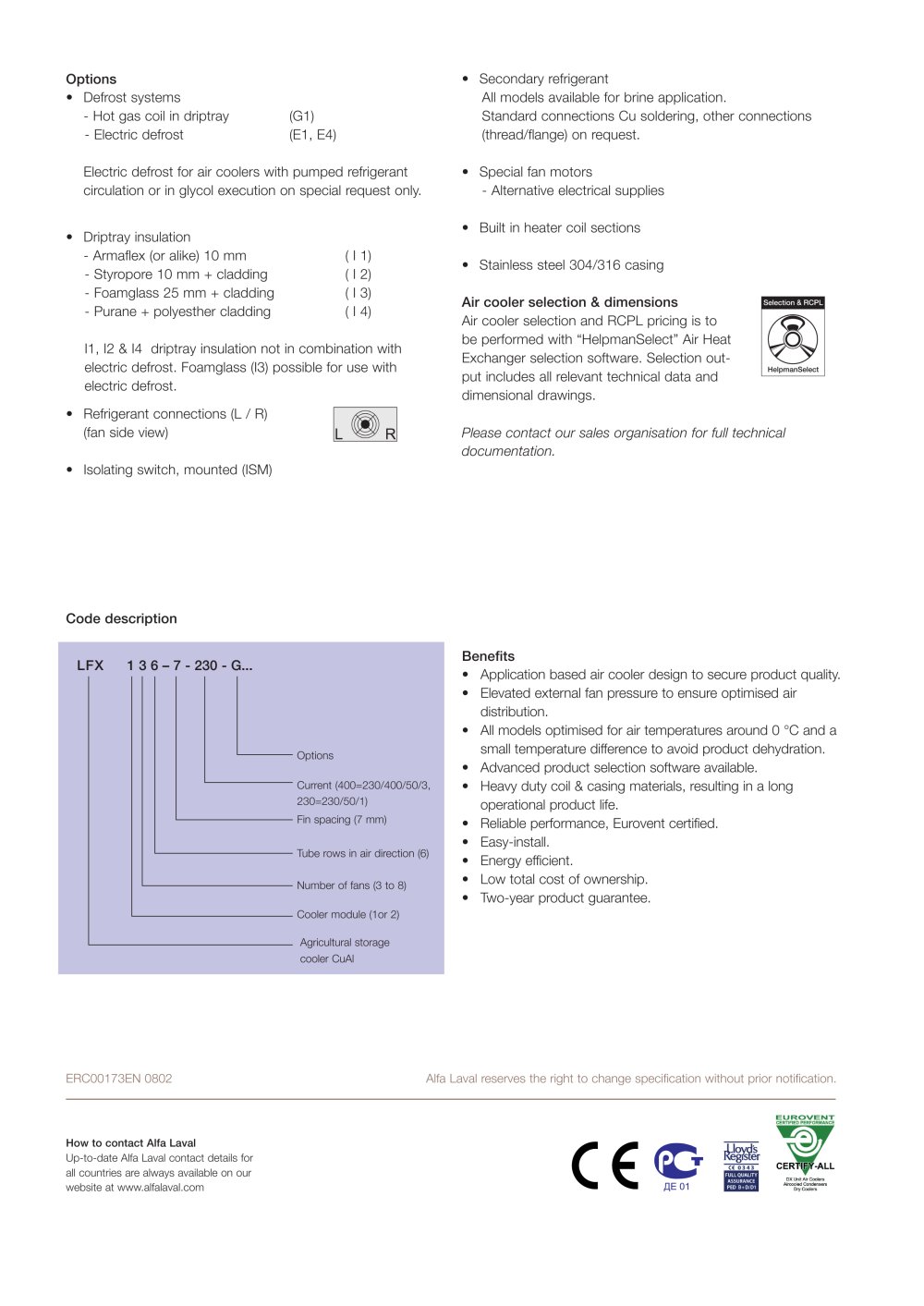

How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com ERC00173EN 0802 Options • Defrost systems - Hot gas coil in driptray (G1) - Electric defrost (E1, E4) Electric defrost for air coolers with pumped refrigerant circulation or in glycol execution on special request only. • Driptray insulation - Armaflex (or alike) 10 mm ( I 1) - Styropore 10 mm + cladding ( I 2) - Foamglass 25 mm + cladding ( I 3) - Purane + polyesther cladding ( I 4) I1, I2 & I4 driptray insulation not in combination with electric defrost. Foamglass (I3) possible for use with electric defrost. • Refrigerant connections (L / R) (fan side view) • Isolating switch, mounted (ISM) Code description • Secondary refrigerant All models available for brine application. Standard connections Cu soldering, other connections (thread/flange) on request. • Special fan motors - Alternative electrical supplies • Built in heater coil sections • Stainless steel 304/316 casing Air cooler selection & dimensions Air cooler selection and RCPL pricing is to be performed with “HelpmanSelect” Air Heat Exchanger selection software. Selection output includes all relevant technical data and dimensional drawings. Please contact our sales organisation for full technical documentation. Benefits • Application based air cooler design to secure product quality. • Elevated external fan pressure to ensure optimised air distribution. • All models optimised for air temperatures around 0 °C and a small temperature difference to avoid product dehydration. • Advanced product selection software available. • Heavy duty coil & casing materials, resulting in a long operational product life. • Reliable performance, Eurovent certified. • Easy-install. • Energy efficient. • Low total cost of ownership. • Two-year product guarantee. LFX 1 3 6 – 7 - 230 - G... Options Current (400=230/400/50/3, 230=230/50/1) Fin spacing (7 mm) Tube rows in air direction (6) Number of fans (3 to 8) Cooler module (1or 2) Agricultural storage cooler CuAl Alfa Laval reserves the right to change specification without prior notification.
