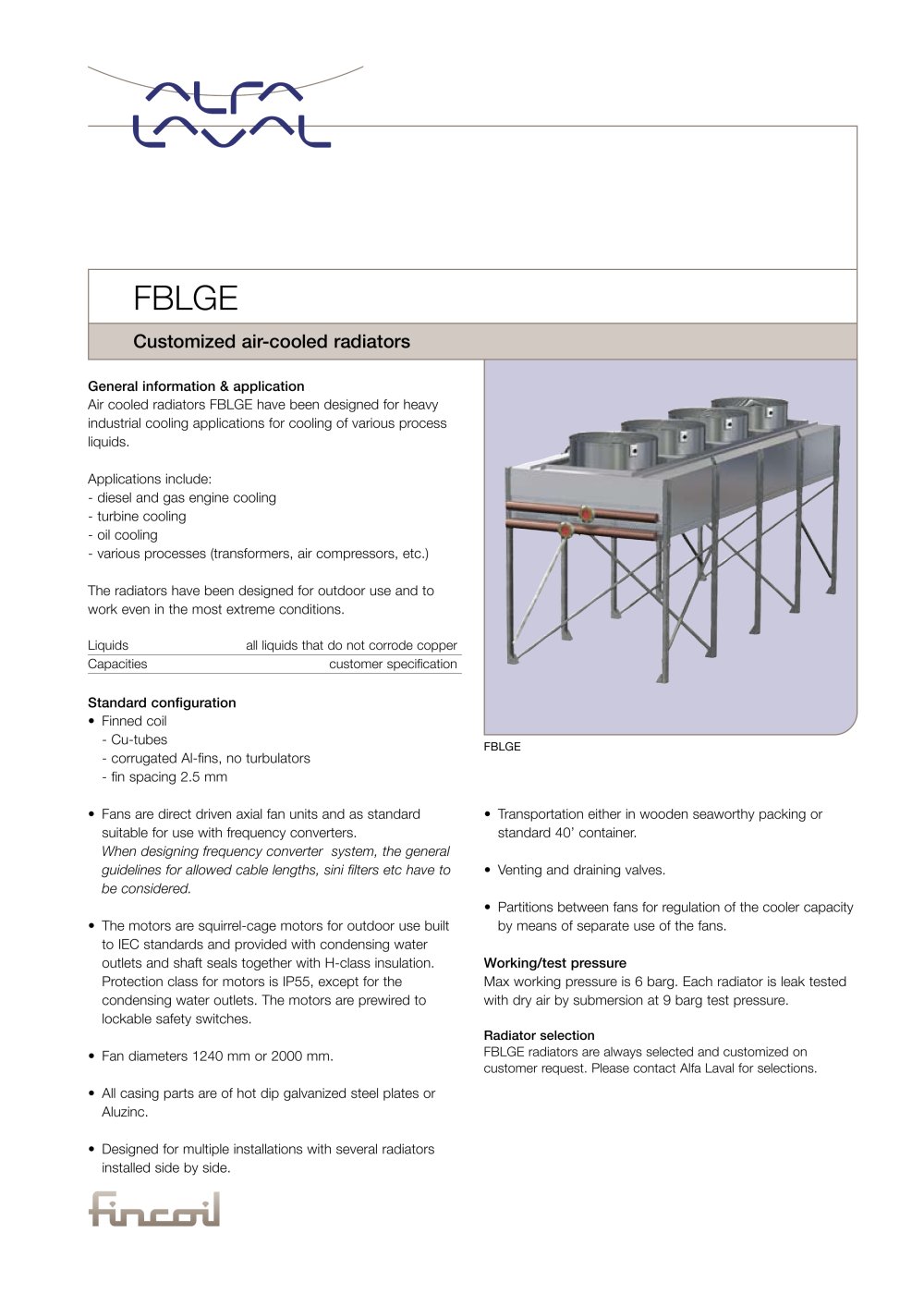

General information & application Air cooled radiators FBLGE have been designed for heavy industrial cooling applications for cooling of various process liquids. Applications include: - diesel and gas engine cooling - turbine cooling - oil cooling - various processes (transformers, air compressors, etc.) The radiators have been designed for outdoor use and to work even in the most extreme conditions. Liquids all liquids that do not corrode copper Capacities customer specification Standard configuration • Finned coil - Cu-tubes - corrugated Al-fins, no turbulators - fin spacing 2.5 mm • Fans are direct driven axial fan units and as standard suitable for use with frequency converters. When designing frequency converter system, the general guidelines for allowed cable lengths, sini filters etc have to be considered. • The motors are squirrel-cage motors for outdoor use built to IEC standards and provided with condensing water outlets and shaft seals together with H-class insulation. Protection class for motors is IP55, except for the condensing water outlets. The motors are prewired to lockable safety switches. • Fan diameters 1240 mm or 2000 mm. • All casing parts are of hot dip galvanized steel plates or Aluzinc. • Designed for multiple installations with several radiators installed side by side. • Transportation either in wooden seaworthy packing or standard 40’ container. • Venting and draining valves. • Partitions between fans for regulation of the cooler capacity by means of separate use of the fans. Working/test pressure Max working pressure is 6 barg. Each radiator is leak tested with dry air by submersion at 9 barg test pressure. Radiator selection FBLGE radiators are always selected and customized on customer request. Please contact Alfa Laval for selections. FBLGE Customized air-cooled radiators FBLGE
