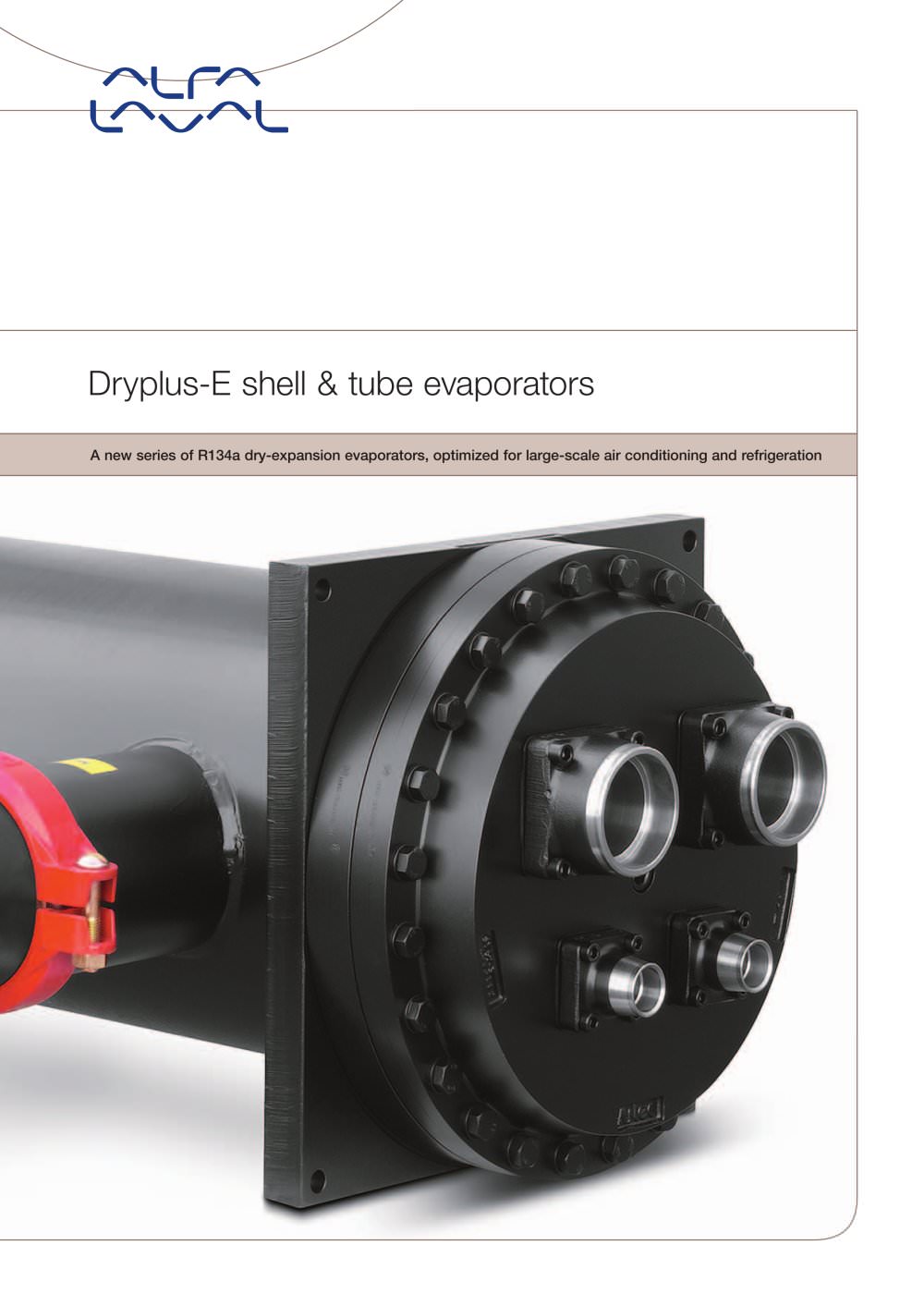

Dryplus-E shell & tube evaporators A new series of R134a dry-expansion evaporators, optimized for large-scale air conditioning and refrigeration
Open the catalog to page 1Alfa Laval shell & tube evaporators The parent generation of the Dryplus-E series provided an example of frontline technology within air conditioning and cooling. With the next generation, performance has been taken one step further. The Dryplus-E evaporators bring solid testimony to the power – and measurable value – of technological evolution. Thanks to their innovative design, the Dryplus-E evaporators ensure high efficiency, even at partial loads. They meet demands for cooling capacity up to 1420 kW (4845 kBtu/h) at nominal conditions* and will serve 1 to 4 separate cooling circuits. A...
Open the catalog to page 2The Dryplus-E range is a result of research targeted to ensure a high level of mechanical strength and high resistance to vibrations and corrosion. The U-shaped design of the tube bundle allows thermal expansion between the tubes and the shell without any mecha nical strain, and the tube bundle can be extracted from the shell for service. When needed to change the water connection position, the shell can also be rotated. Perfection expressed as design • Evaporators optimized for R134a and high efficiency duties • Reduced refrigerant charge • Low pressure drop design • Advanced finned copper...
Open the catalog to page 3Investment with a favorable payback The technical features presented above will interact to meet high COP in largescale industrial, commercial and HVAC installations where cooling is needed during the major part of the year. In these cases, reduction of power consumption is an obvious success factor – and the Dryplus-E series is designed to offer the final user a favorable payback on the investment. Performance and features • Optimized for R134a high-efficiency duties – 4.5-5 COP – in water-cooled chillers • Designed to match screw or turbo R134a compressors • Meets high efficiency demands...
Open the catalog to page 5ECE00006EN 0510 Alfa Laval in brief Alfa Laval is a leading global provider of specialized products and engineered solutions. Our equipment, systems and services are dedicated to helping customers to optimize the performance of their processes. Time and time again. We help our customers to heat, cool, separate and transport products such as oil, water, chemicals, beverages, foodstuffs, starch and pharmaceuticals. Our worldwide organization works closely with customers in almost 100 countries to help them stay ahead. How to contact Alfa Laval Up-to-date Alfa Laval contact details for all...
