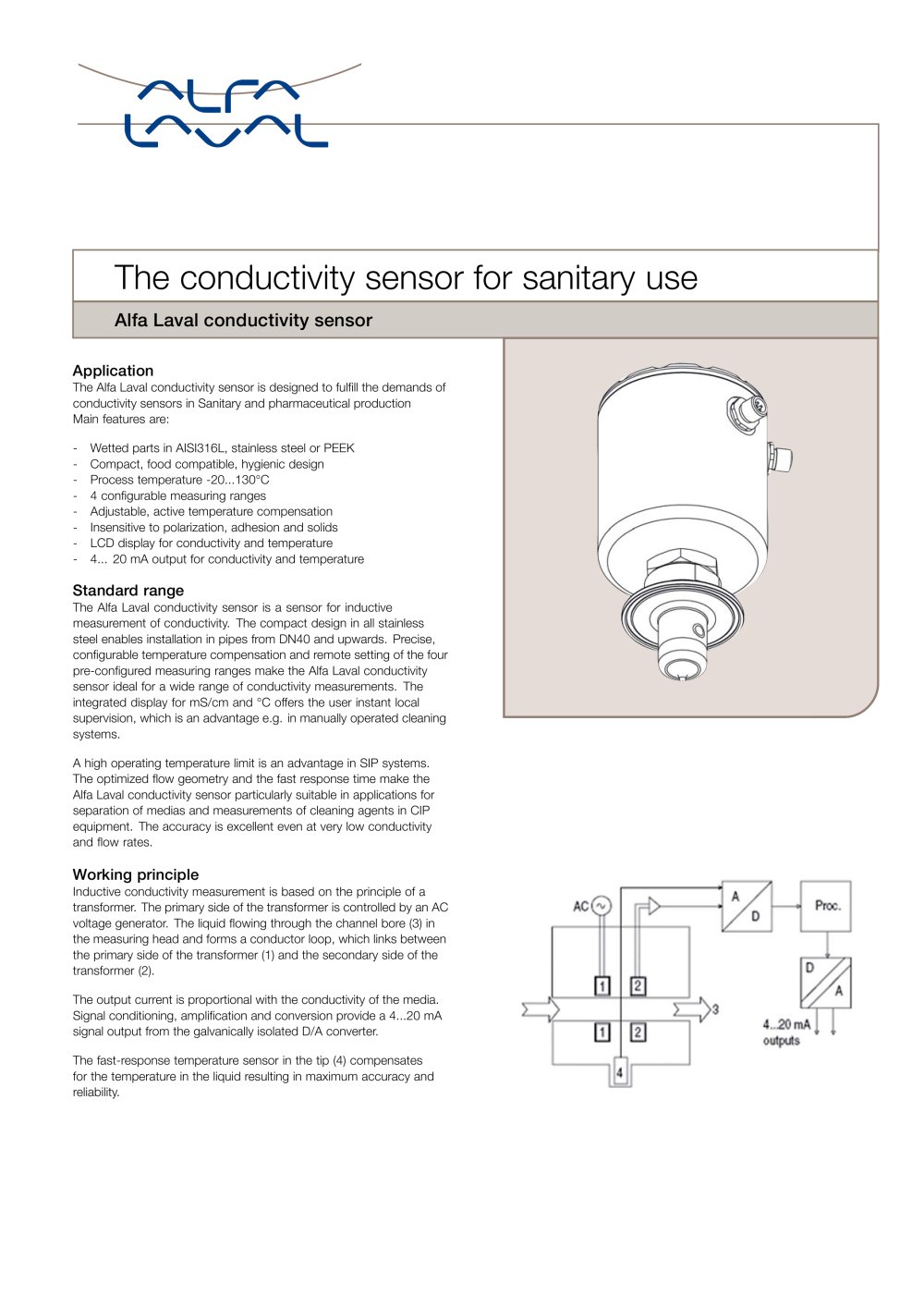

. kyThe conductivity sensor for sanitary use Alfa Laval conductivity sensor . Application The Alfa Laval conductivity sensor is designed to fulfill the demands of conductivity sensors in Sanitary and pharmaceutical production Main features are: - Wetted parts in AISI316L, stainless steel or PEEK - Compact, food compatible, hygienic design - Process temperature -20...130°C - 4 configurable measuring ranges - Adjustable, active temperature compensation - Insensitive to polarization, adhesion and solids - LCD display for conductivity and temperature - 4... 20 mA output for conductivity and temperature Standard range The Alfa Laval conductivity sensor is a sensor for inductive measurement of conductivity. The compact design in all stainless steel enables installation in pipes from DN40 and upwards. Precise, configurable temperature compensation and remote setting of the four pre-configured measuring ranges make the Alfa Laval conductivity sensor ideal for a wide range of conductivity measurements. The integrated display for mS/cm and °C offers the user instant local supervision, which is an advantage e.g. in manually operated cleaning systems. A high operating temperature limit is an advantage in SIP systems. The optimized flow geometry and the fast response time make the Alfa Laval conductivity sensor particularly suitable in applications for separation of medias and measurements of cleaning agents in CIP equipment. The accuracy is excellent even at very low conductivity and flow rates. Working principle Inductive conductivity measurement is based on the principle of a transformer. The primary side of the transformer is controlled by an AC voltage generator. The liquid flowing through the channel bore (3) in the measuring head and forms a conductor loop, which links between the primary side of the transformer (1) and the secondary side of the transformer (2). The output current is proportional with the conductivity of the media. Signal conditioning, amplification and conversion provide a 4...20 mA signal output from the galvanically isolated D/A converter. The fast-response temperature sensor in the tip (4) compensates for the temperature in the liquid resulting in maximum accuracy and reliability.

Open the catalog to page 1

Technical data Conductivity Measuring range: . . . . . . . . . . . . . . .0 to 999 mS/cm Resolution Range Resolution 0 to 0.5 mS/cm 0.001 mS/cm 0 to 1 mS/cm 0.001 mS/cm 0 to 2 mS/cm 0.010 mS/cm 0 to 3 mS/cm 0.010 mS/cm 0 to 5 mS/cm 0.010 mS/cm 0 to 10 mS/cm 0.100 mS/cm 0 to 20 mS/cm 0.100 mS/cm 0 to 30 mS/cm 0.100 mS/cm 0 to 50 mS/cm 0.100 mS/cm 0 to 100 mS/cm 1.000 mS/cm 0 to 200 mS/cm 1.000 mS/cm 0 to 300 mS/cm 1.000 mS/cm 0 to 500 mS/cm 1.000 mS/cm 0 to 999 mS/cm 1.000 mS/cm Accuracy: . . . . . . . . . . . . . . . . . . . .±1%of selected measuring range Repeateability: . . . . . . . . ....
