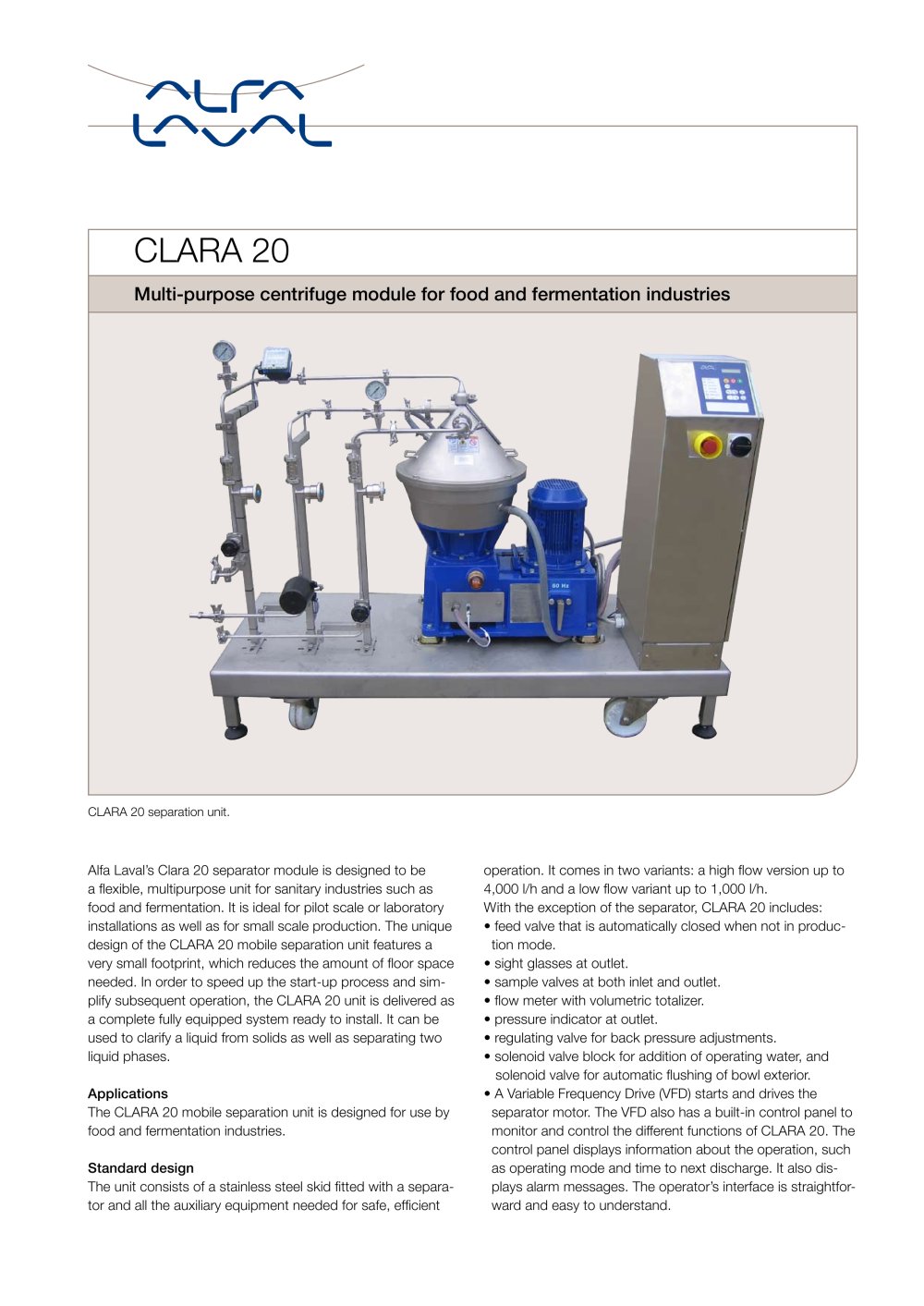

Multi-purpose centrifuge module for food and fermentation industries CLARA 20 Alfa Laval’s Clara 20 separator module is designed to be a flexible, multipurpose unit for sanitary industries such as food and fermentation. It is ideal for pilot scale or laboratory installations as well as for small scale production. The unique design of the CLARA 20 mobile separation unit features a very small footprint, which reduces the amount of floor space needed. In order to speed up the start-up process and simplify subsequent operation, the CLARA 20 unit is delivered as a complete fully equipped system ready to install. It can be used to clarify a liquid from solids as well as separating two liquid phases. Applications The CLARA 20 mobile separation unit is designed for use by food and fermentation industries. Standard design The unit consists of a stainless steel skid fitted with a separator and all the auxiliary equipment needed for safe, efficient operation. It comes in two variants: a high flow version up to 4,000 l/h and a low flow variant up to 1,000 l/h. With the exception of the separator, CLARA 20 includes: • feed valve that is automatically closed when not in production mode. • sight glasses at outlet. • sample valves at both inlet and outlet. • flow meter with volumetric totalizer. • pressure indicator at outlet. • regulating valve for back pressure adjustments. • solenoid valve block for addition of operating water, and solenoid valve for automatic flushing of bowl exterior. • A Variable Frequency Drive (VFD) starts and drives the separator motor. The VFD also has a built-in control panel to monitor and control the different functions of CLARA 20. The control panel displays information about the operation, such as operating mode and time to next discharge. It also displays alarm messages. The operator’s interface is straightforward and easy to understand. CLARA 20 separation unit.
