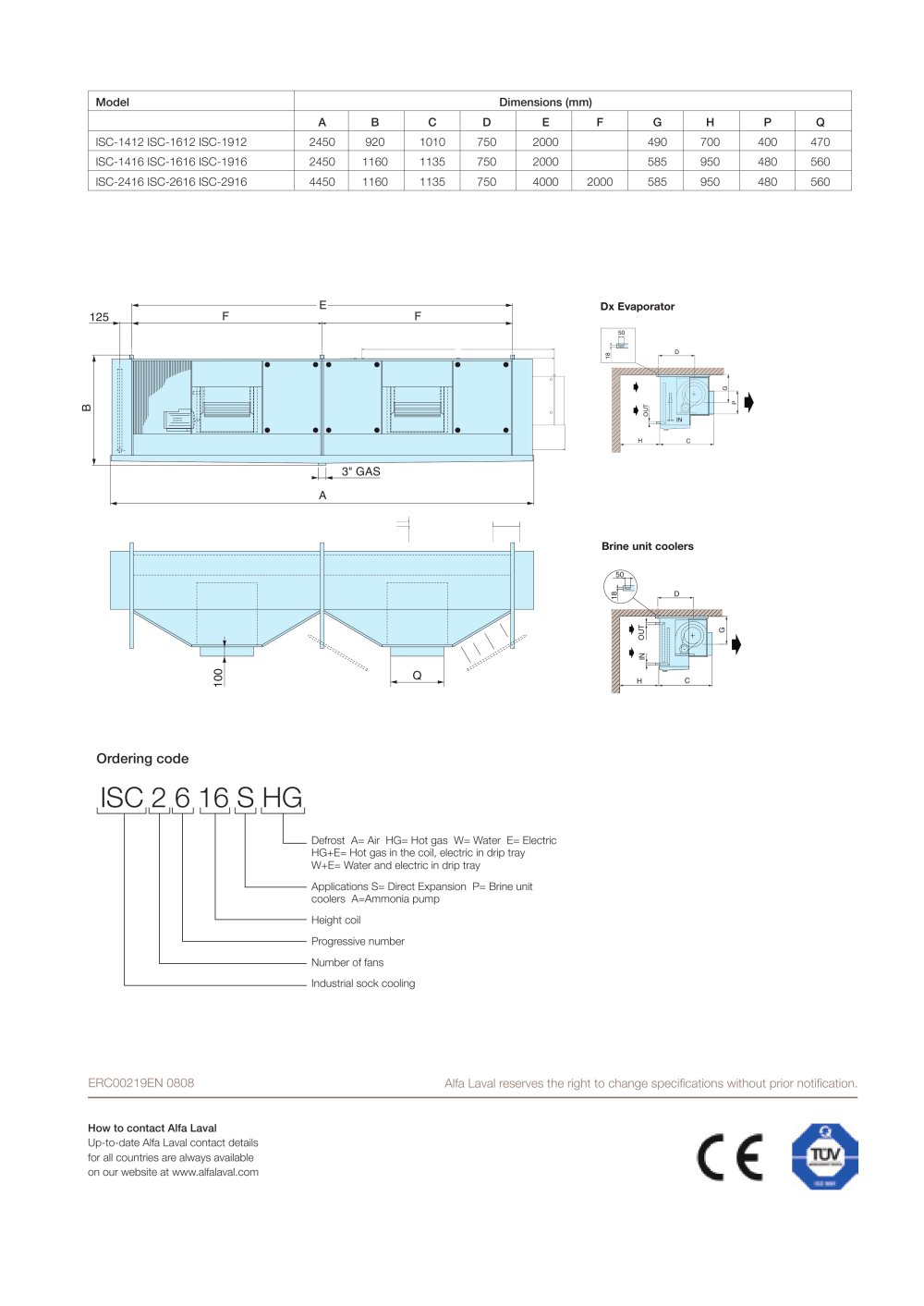

ERC00219EN 0808 How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com Alfa Laval reserves the right to change specifications without prior notification. Model Dimensions (mm) A B C D E F G H P Q ISC-1412 ISC-1612 ISC-1912 2450 920 1010 750 2000 490 700 400 470 ISC-1416 ISC-1616 ISC-1916 2450 1160 1135 750 2000 585 950 480 560 ISC-2416 ISC-2616 ISC-2916 4450 1160 1135 750 4000 2000 585 950 480 560 H 18 50 D C G OUT IN P F 3" GAS 125 F A B 100 E Q H 18 50 D C G IN OUT Dx Evaporator Brine unit coolers ISC 2 6 16 S HG Defrost A= Air HG= Hot gas W= Water E= Electric HG+E= Hot gas in the coil, electric in drip tray W+E= Water and electric in drip tray Applications S= Direct Expansion P= Brine unit coolers A=Ammonia pump Height coil Progressive number Number of fans Industrial sock cooling Ordering code
