235 4030 235 3030 235 2030
2000 2030
4420 3420
Ø2" GAS 2" GAS
2420
Ø2" GAS
155 155
1700
1600
800 14
155
555
555
555 1515
1515
1515
80
18
PCT00054EN 0501 All rights reserved for changes in specifications
How to contact Alfa Laval
Up-to-date Alfa Laval contact details
for all countries are always available
on our website at www.alfalaval.com

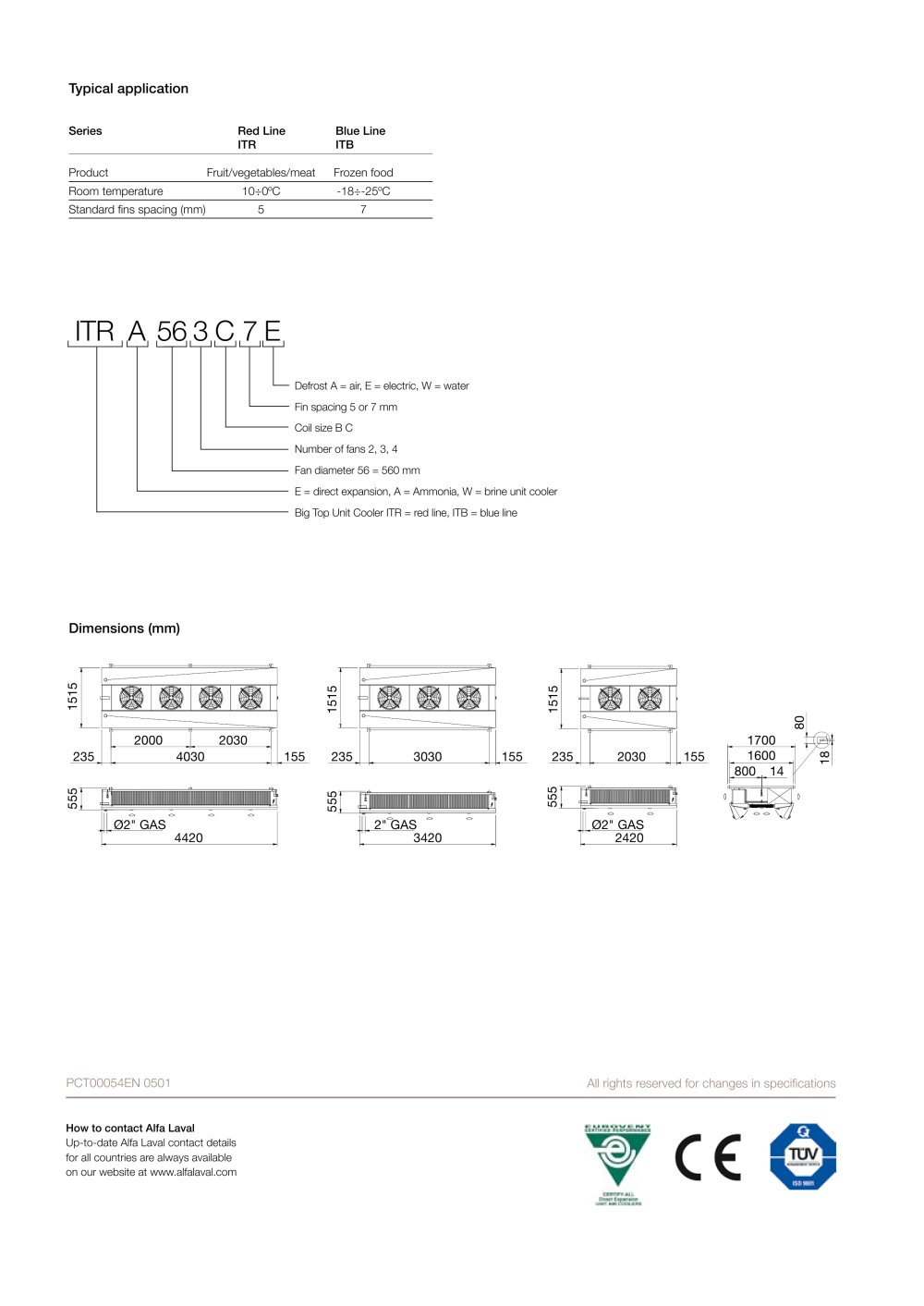

Typical application
Series Red Line Blue Line
ITR ITB
Product Fruit/vegetables/meat Frozen food
Room temperature 10÷0ºC -18÷-25ºC
Standard fins spacing (mm) 5 7
Dimensions (mm)
ITR A 56 3 C 7 E
Defrost A = air, E = electric, W = water
Fin spacing 5 or 7 mm
Coil size B C
Number of fans 2, 3, 4
Fan diameter 56 = 560 mm
E = direct expansion, A = Ammonia, W = brine unit cooler
Big Top Unit Cooler ITR = red line, ITB = blue line
