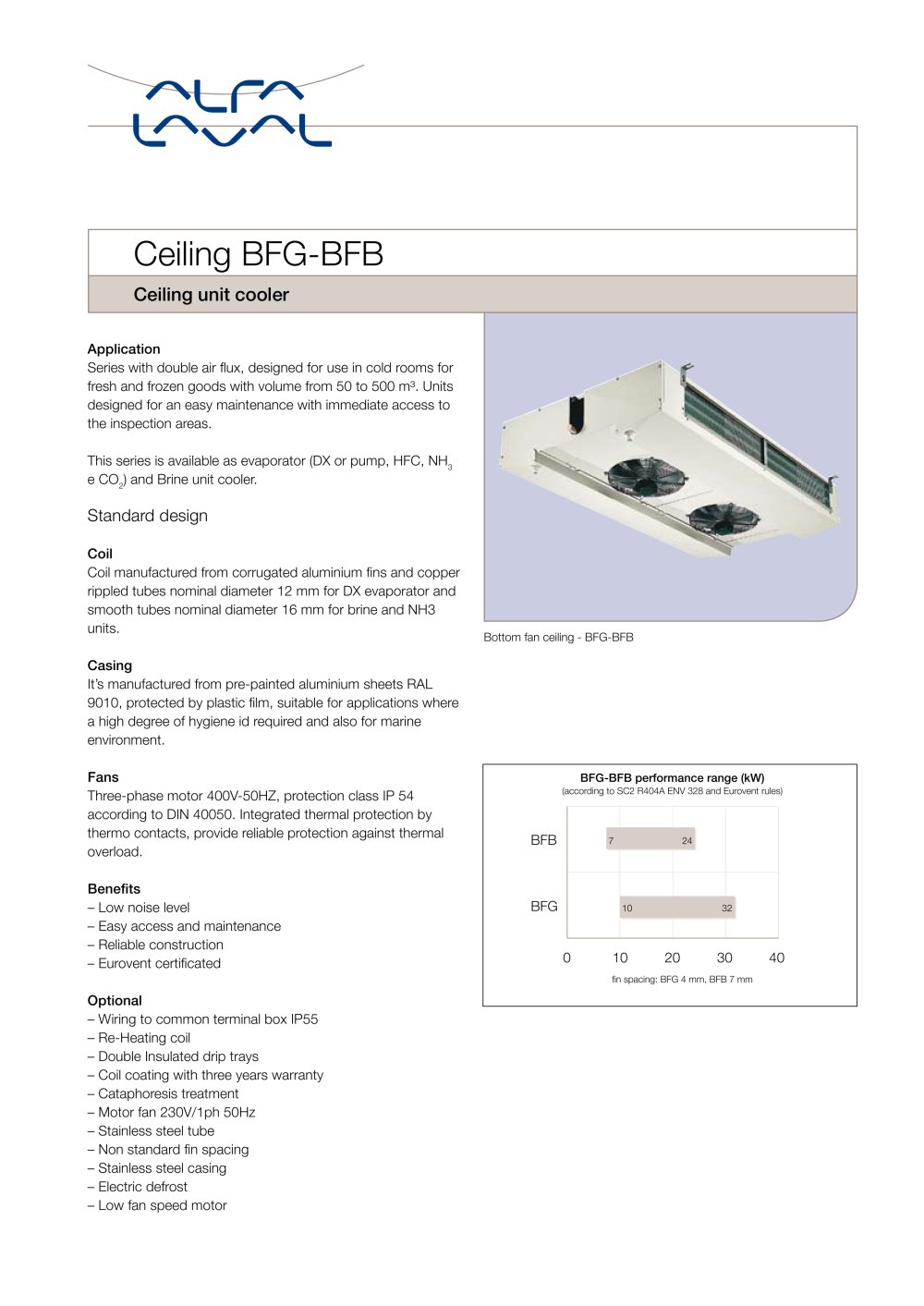

BFG 0 10 20 30 40 BFB 10 32 7 24 Ceiling unit cooler Ceiling BFG-BFB Application Series with double air flux, designed for use in cold rooms for fresh and frozen goods with volume from 50 to 500 m³. Units designed for an easy maintenance with immediate access to the inspection areas. This series is available as evaporator (DX or pump, HFC, NH3 e CO2) and Brine unit cooler. Standard design Coil Coil manufactured from corrugated aluminium fins and copper rippled tubes nominal diameter 12 mm for DX evaporator and smooth tubes nominal diameter 16 mm for brine and NH3 units. Casing It’s manufactured from pre-painted aluminium sheets RAL 9010, protected by plastic film, suitable for applications where a high degree of hygiene id required and also for marine environment. Fans Three-phase motor 400V-50HZ, protection class IP 54 according to DIN 40050. Integrated thermal protection by thermo contacts, provide reliable protection against thermal overload. Benefits – Low noise level – Easy access and maintenance – Reliable construction – Eurovent certificated Optional – Wiring to common terminal box IP55 – Re-Heating coil – Double Insulated drip trays – Coil coating with three years warranty – Cataphoresis treatment – Motor fan 230V/1ph 50Hz – Stainless steel tube – Non standard fin spacing – Stainless steel casing – Electric defrost – Low fan speed motor Bottom fan ceiling - BFG-BFB BFG-BFB performance range (kW) (according to SC2 R404A ENV 328 and Eurovent rules) fin spacing: BFG 4 mm, BFB 7 mm
Open the catalog to page 1BFG-BFB 403 BFG-BFB 404 BFG-BFB 402 BFG-BFB 405 2770 3560 1980 4350 1610 3980 790 1610 88 1160 Ø1"GAS 580 580 1580 3190 2400 1580 1610 -2 +2 -2 +2 -2 +2 -2 +2 208 208 208 208 350 350 350 350 48 30 PCT00053EN 0501 All rights reserved for changes in specifications How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com Typical application Series Green Line Blue Line BFG BFB Product Fruit/vegetables Frozen food Room temperature 10÷0ºC -18÷-25ºC Standard fins spacing (mm) 4 7 Dimensions (mm) BFG A 40 3 C 4 T A =...
