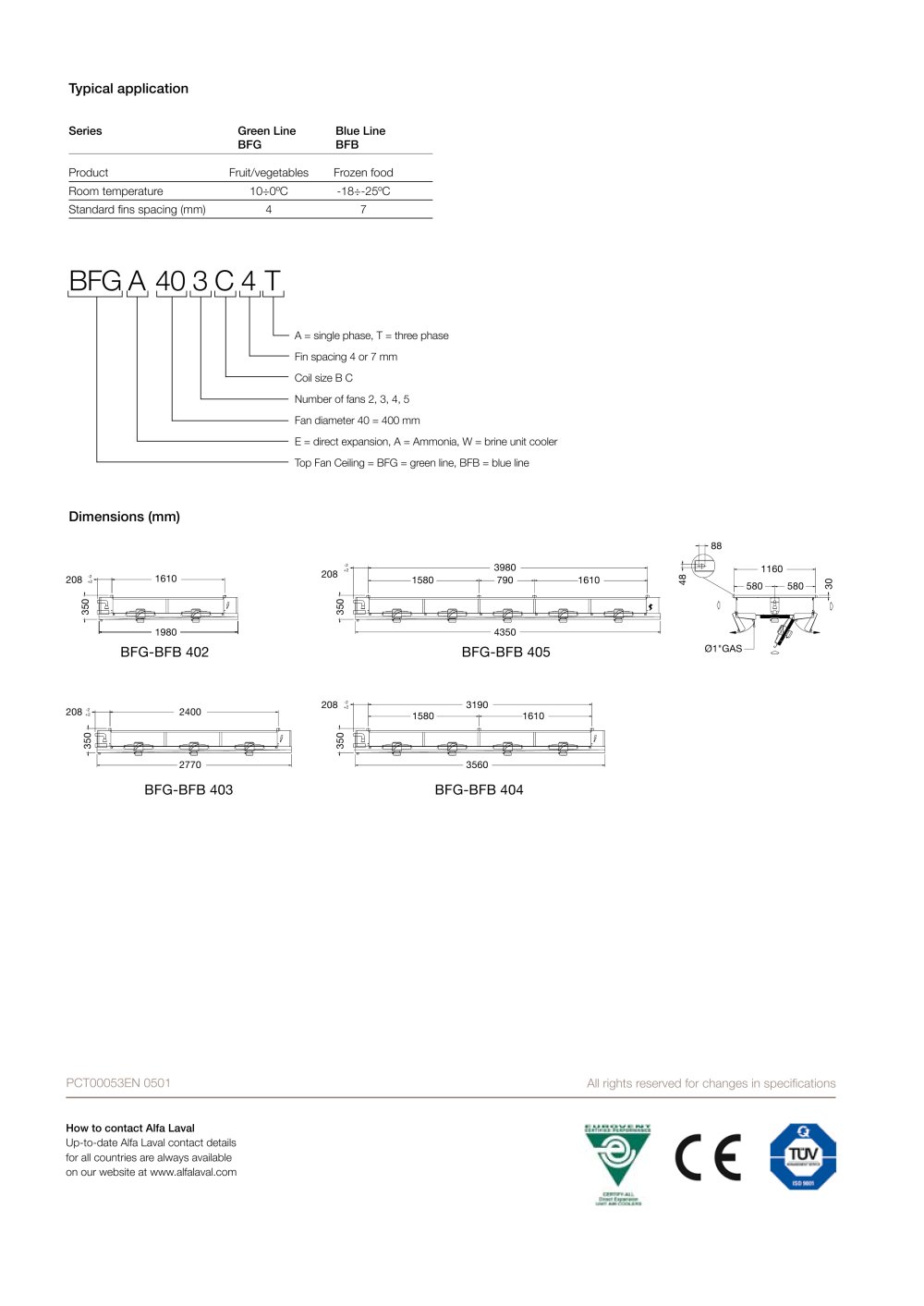

BFG-BFB 403 BFG-BFB 404 BFG-BFB 402 BFG-BFB 405 2770 3560 1980 4350 1610 3980 790 1610 88 1160 Ø1"GAS 580 580 1580 3190 2400 1580 1610 -2 +2 -2 +2 -2 +2 -2 +2 208 208 208 208 350 350 350 350 48 30 PCT00053EN 0501 All rights reserved for changes in specifications How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com Typical application Series Green Line Blue Line BFG BFB Product Fruit/vegetables Frozen food Room temperature 10÷0ºC -18÷-25ºC Standard fins spacing (mm) 4 7 Dimensions (mm) BFG A 40 3 C 4 T A = single phase, T = three phase Fin spacing 4 or 7 mm Coil size B C Number of fans 2, 3, 4, 5 Fan diameter 40 = 400 mm E = direct expansion, A = Ammonia, W = brine unit cooler Top Fan Ceiling = BFG = green line, BFB = blue line
