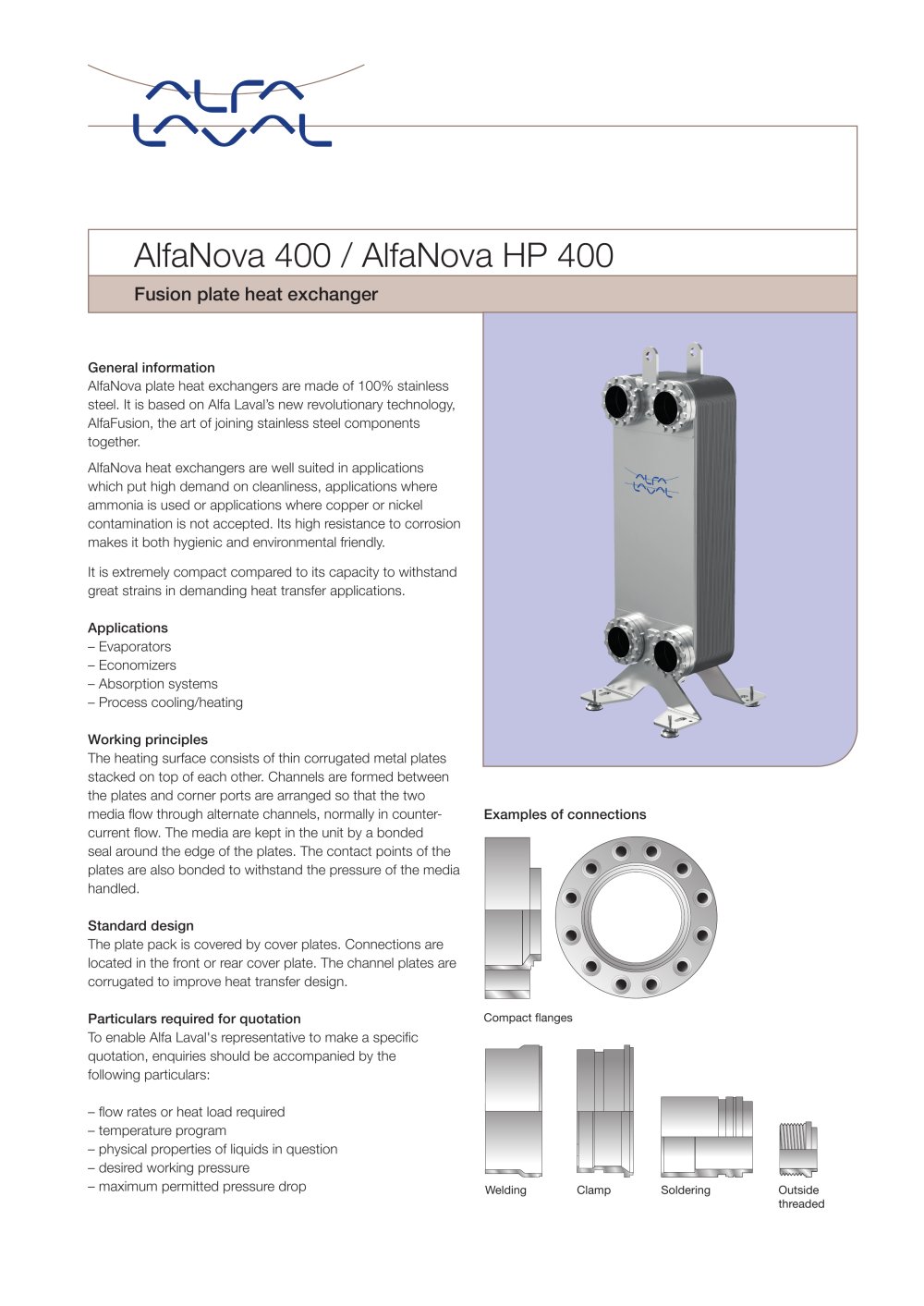

Examples of connections Welding Compact flanges Clamp Soldering Outside threaded Fusion plate heat exchanger AlfaNova 400 / AlfaNova HP 400 General information AlfaNova plate heat exchangers are made of 100% stainless steel. It is based on Alfa Laval’s new revolutionary technology, AlfaFusion, the art of joining stainless steel components together. AlfaNova heat exchangers are well suited in applications which put high demand on cleanliness, applications where ammonia is used or applications where copper or nickel contamination is not accepted. Its high resistance to corrosion makes it both hygienic and environmental friendly. It is extremely compact compared to its capacity to withstand great strains in demanding heat transfer applications. Applications – Evaporators – Economizers – Absorption systems – Process cooling/heating Working principles The heating surface consists of thin corrugated metal plates stacked on top of each other. Channels are formed between the plates and corner ports are arranged so that the two media flow through alternate channels, normally in countercurrent flow. The media are kept in the unit by a bonded seal around the edge of the plates. The contact points of the plates are also bonded to withstand the pressure of the media handled. Standard design The plate pack is covered by cover plates. Connections are located in the front or rear cover plate. The channel plates are corrugated to improve heat transfer design. Particulars required for quotation To enable Alfa Laval's representative to make a specific quotation, enquiries should be accompanied by the following particulars: – flow rates or heat load required – temperature program – physical properties of liquids in question – desired working pressure – maximum permitted pressure drop
Open the catalog to page 1PCT00037EN 0909 How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com. Alfa Laval reserves the right to change specifications without prior notification. Standard data Min. working temperature see graph Max. working temperature see graph Min. working pressure Vacuum Max. working pressure see graph Volume per channel, litres (ga) 0.74 (0.20) Max. particle size mm (inch) 1.8 (0,07) Max. flowrate * m3/h (gpm) 170 (748) Min no of plates 10 Max no of plates 270 *) Water at 5 m/s (16.4 ft/s) (connection velocity)...
