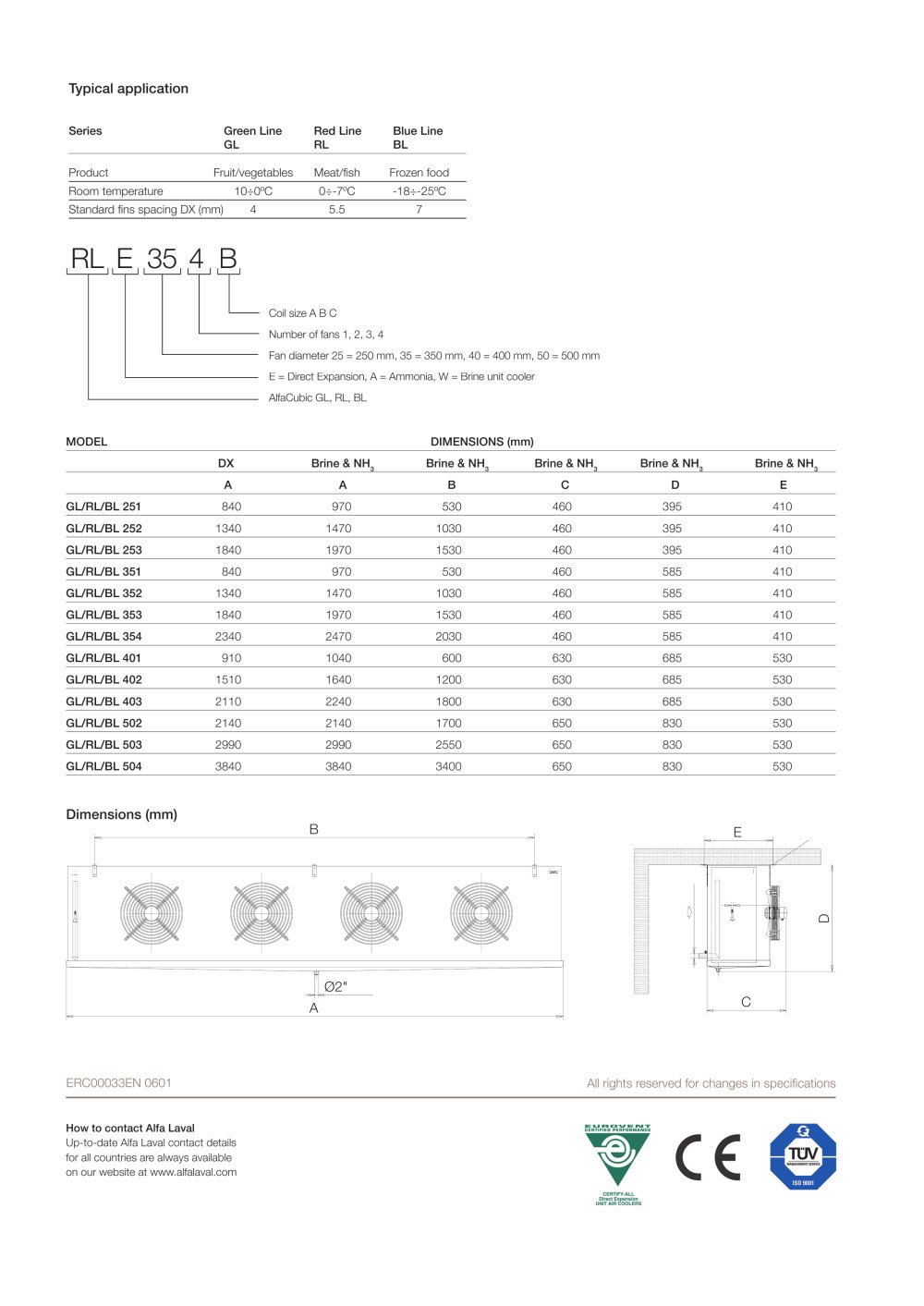

ERC00033EN 0601 All rights reserved for changes in specifi cations How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com MODEL DIMENSIONS (mm) DX Brine & NH3 Brine & NH3 Brine & NH3 Brine & NH3 Brine & NH3 A A B C D E GL/RL/BL 251 840 970 530 460 395 410 GL/RL/BL 252 1340 1470 1030 460 395 410 GL/RL/BL 253 1840 1970 1530 460 395 410 GL/RL/BL 351 840 970 530 460 585 410 GL/RL/BL 352 1340 1470 1030 460 585 410 GL/RL/BL 353 1840 1970 1530 460 585 410 GL/RL/BL 354 2340 2470 2030 460 585 410 GL/RL/BL 401 910 1040 600 630 685 530 GL/RL/BL 402 1510 1640 1200 630 685 530 GL/RL/BL 403 2110 2240 1800 630 685 530 GL/RL/BL 502 2140 2140 1700 650 830 530 GL/RL/BL 503 2990 2990 2550 650 830 530 GL/RL/BL 504 3840 3840 3400 650 830 530 Typical application Series Green Line Red Line Blue Line GL RL BL Product Fruit/vegetables Meat/fi sh Frozen food Room temperature 10÷0ºC 0÷-7ºC -18÷-25ºC Standard fi ns spacing DX (mm) 4 5.5 7 Dimensions (mm) RL E 35 4 B Coil size A B C Number of fans 1, 2, 3, 4 Fan diameter 25 = 250 mm, 35 = 350 mm, 40 = 400 mm, 50 = 500 mm E = Direct Expansion, A = Ammonia, W = Brine unit cooler AlfaCubic GL, RL, BL D Ø2" A B E C
