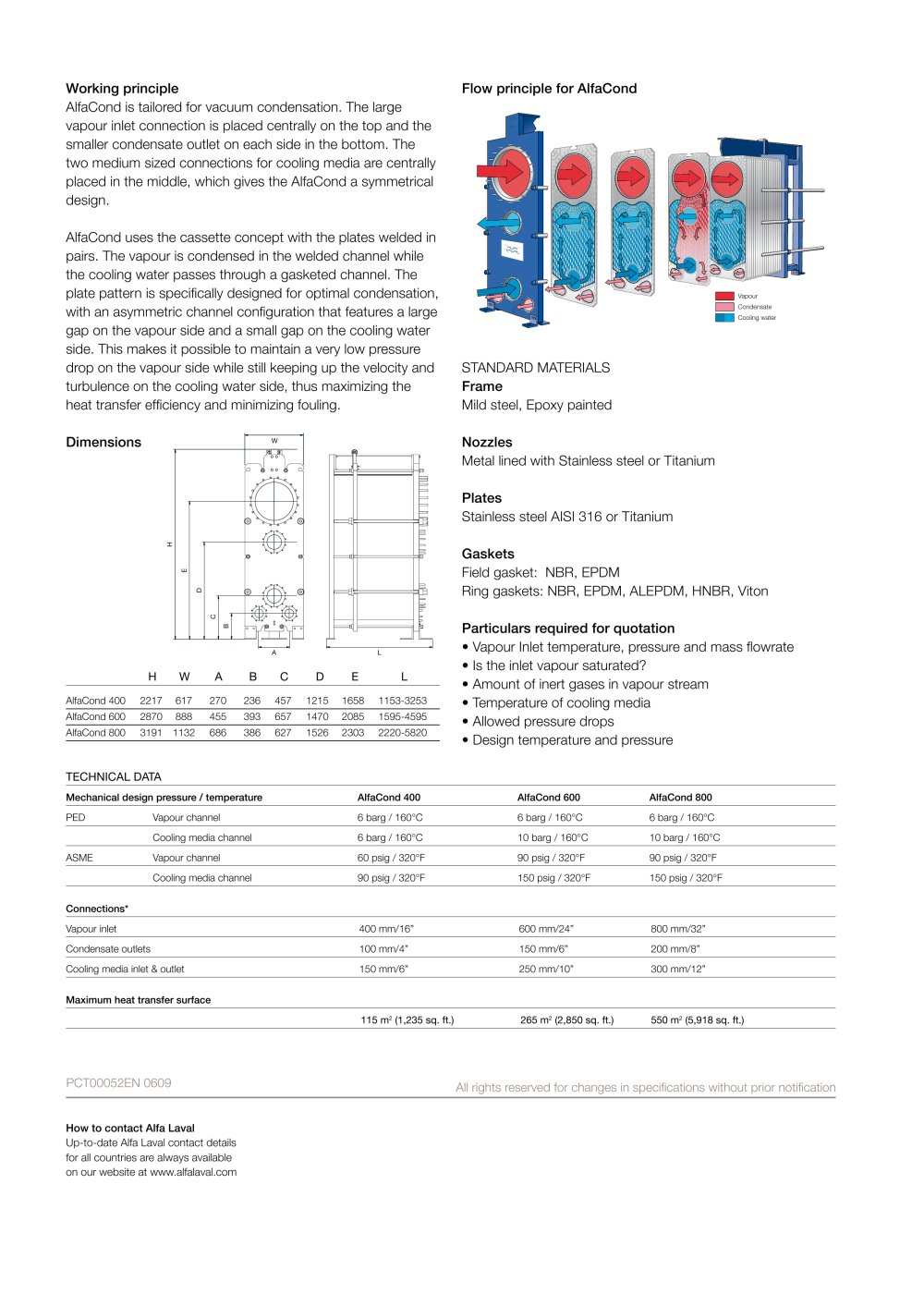

PCT00052EN 0609 All rights reserved for changes in specifications without prior notification How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com Working principle AlfaCond is tailored for vacuum condensation. The large vapour inlet connection is placed centrally on the top and the smaller condensate outlet on each side in the bottom. The two medium sized connections for cooling media are centrally placed in the middle, which gives the AlfaCond a symmetrical design. AlfaCond uses the cassette concept with the plates welded in pairs. The vapour is condensed in the welded channel while the cooling water passes through a gasketed channel. The plate pattern is specifically designed for optimal condensation, with an asymmetric channel configuration that features a large gap on the vapour side and a small gap on the cooling water side. This makes it possible to maintain a very low pressure drop on the vapour side while still keeping up the velocity and turbulence on the cooling water side, thus maximizing the heat transfer efficiency and minimizing fouling. Dimensions Flow principle for AlfaCond STANDARD MATERIALS Frame Mild steel, Epoxy painted Nozzles Metal lined with Stainless steel or Titanium Plates Stainless steel AISI 316 or Titanium Gaskets Field gasket: NBR, EPDM Ring gaskets: NBR, EPDM, ALEPDM, HNBR, Viton Particulars required for quotation • Vapour Inlet temperature, pressure and mass flowrate • Is the inlet vapour saturated? • Amount of inert gases in vapour stream • Temperature of cooling media • Allowed pressure drops • Design temperature and pressure Vapour Condensate Cooling water W H E D C B A L H W A B C D E L AlfaCond 400 2217 617 270 236 457 1215 1658 1153-3253 AlfaCond 600 2870 888 455 393 657 1470 2085 1595-4595 AlfaCond 800 3191 1132 686 386 627 1526 2303 2220-5820 TECHNICAL DATA Mechanical design pressure / temperature AlfaCond 400 AlfaCond 600 AlfaCond 800 PED Vapour channel 6 barg / 160°C 6 barg / 160°C 6 barg / 160°C Cooling media channel 6 barg / 160°C 10 barg / 160°C 10 barg / 160°C ASME Vapour channel 60 psig / 320°F 90 psig / 320°F 90 psig / 320°F Cooling media channel 90 psig / 320°F 150 psig / 320°F 150 psig / 320°F Connections* Vapour inlet 400 mm/16” 600 mm/24” 800 mm/32” Condensate outlets 100 mm/4” 150 mm/6” 200 mm/8” Cooling media inlet & outlet 150 mm/6” 250 mm/10” 300 mm/12” Maximum heat transfer surface 115 m2 (1,235 sq. ft.) 265 m2 (2,850 sq. ft.) 550 m2 (5,918 sq. ft.)
