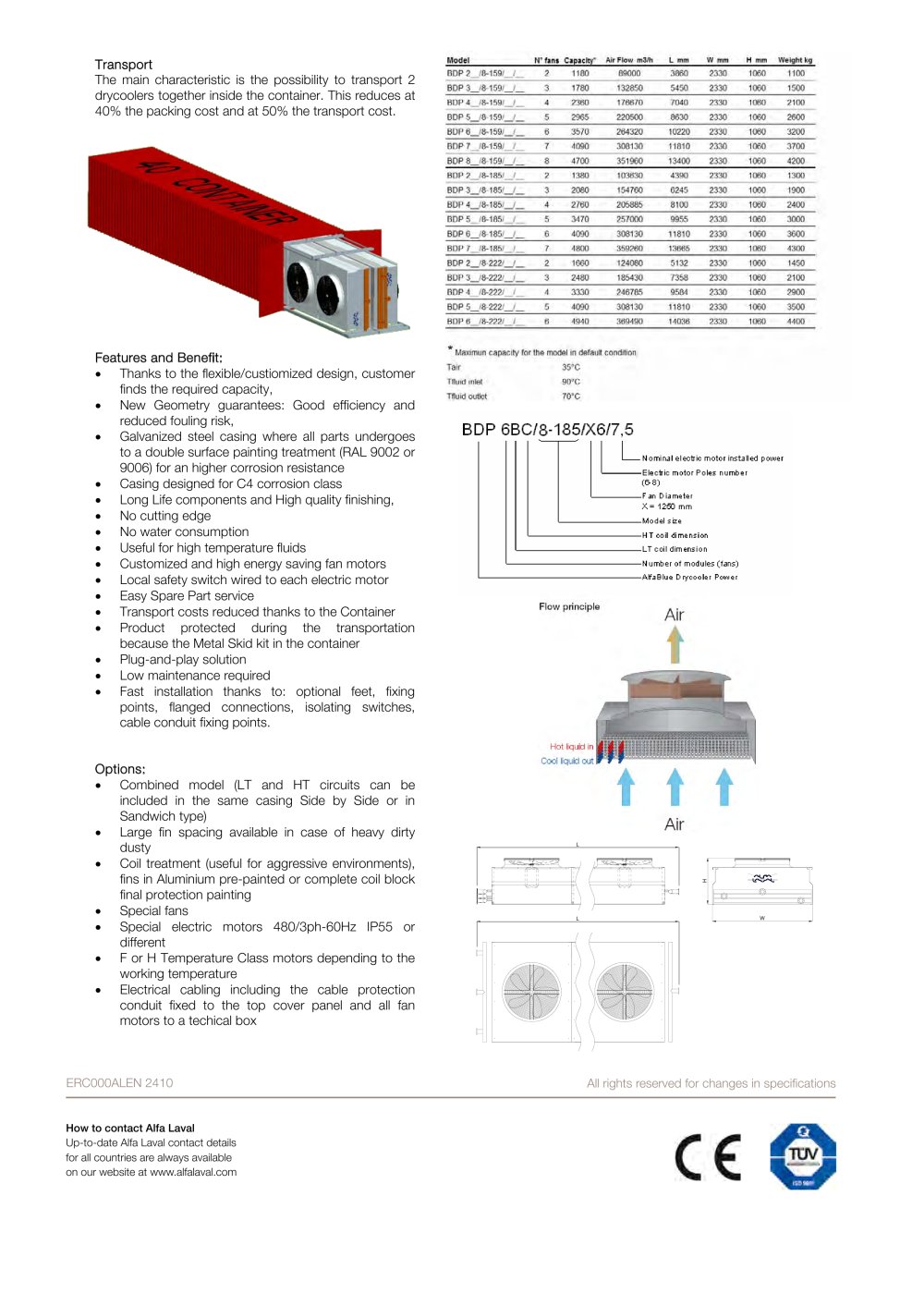

ERC000ALEN 2410 All rights reserved for changes in specifications How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com L W H L Transport The main characteristic is the possibility to transport 2 drycoolers together inside the container. This reduces at 40% the packing cost and at 50% the transport cost. Features and Benefit: • Thanks to the flexible/custiomized design, customer finds the required capacity, • New Geometry guarantees: Good efficiency and reduced fouling risk, • Galvanized steel casing where all parts undergoes to a double surface painting treatment (RAL 9002 or 9006) for an higher corrosion resistance • Casing designed for C4 corrosion class • Long Life components and High quality finishing, • No cutting edge • No water consumption • Useful for high temperature fluids • Customized and high energy saving fan motors • Local safety switch wired to each electric motor • Easy Spare Part service • Transport costs reduced thanks to the Container • Product protected during the transportation because the Metal Skid kit in the container • Plug-and-play solution • Low maintenance required • Fast installation thanks to: optional feet, fixing points, flanged connections, isolating switches, cable conduit fixing points. Options: • Combined model (LT and HT circuits can be included in the same casing Side by Side or in Sandwich type) • Large fin spacing available in case of heavy dirty dusty • Coil treatment (useful for aggressive environments), fins in Aluminium pre-painted or complete coil block final protection painting • Special fans • Special electric motors 480/3ph-60Hz IP55 or different • F or H Temperature Class motors depending to the working temperature • Electrical cabling including the cable protection conduit fixed to the top cover panel and all fan motors to a techical box
