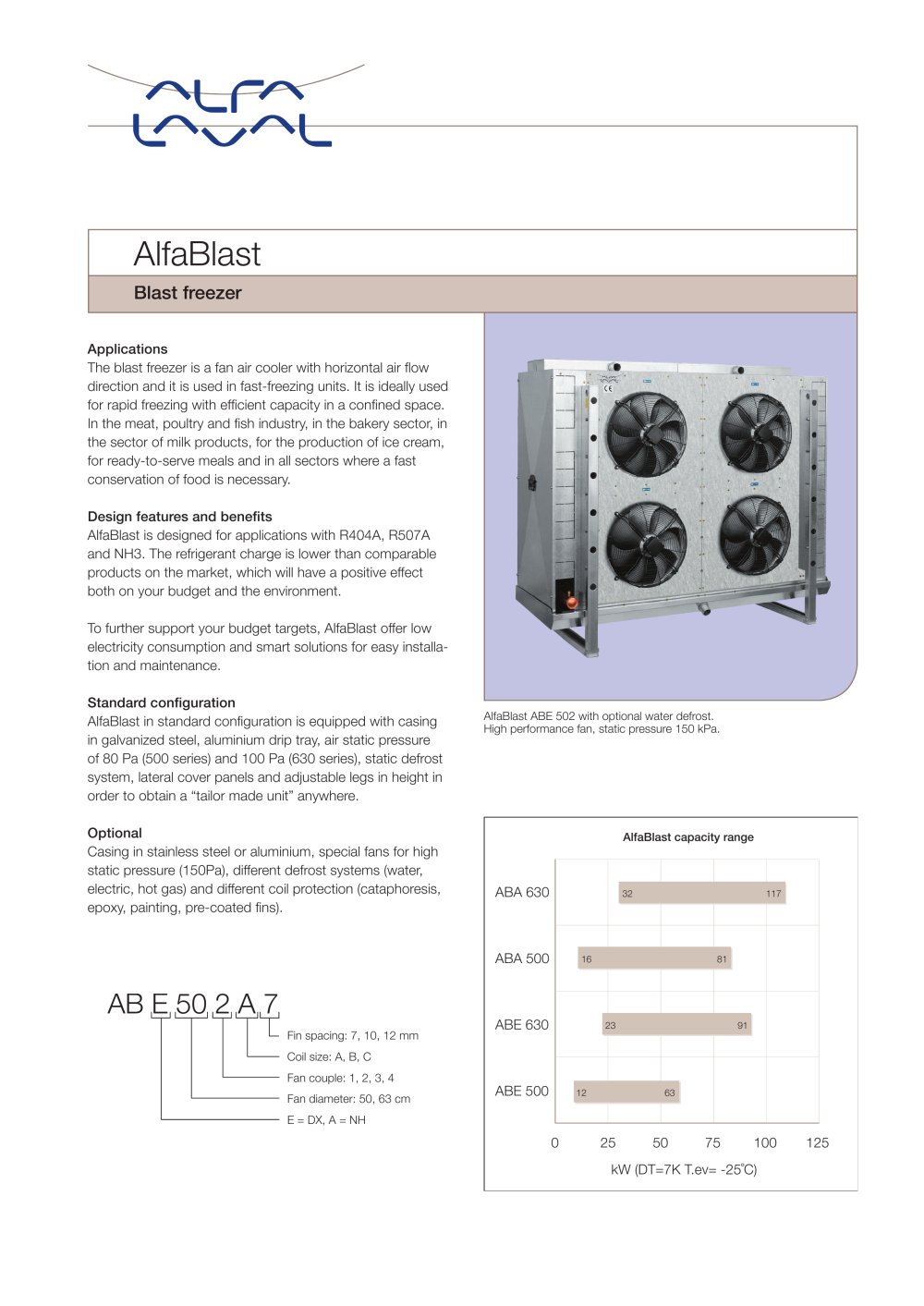

Blast freezer AlfaBlast Applications The blast freezer is a fan air cooler with horizontal air fl ow direction and it is used in fast-freezing units. It is ideally used for rapid freezing with effi cient capacity in a confi ned space. In the meat, poultry and fi sh industry, in the bakery sector, in the sector of milk products, for the production of ice cream, for ready-to-serve meals and in all sectors where a fast conservation of food is necessary. Design features and benefi ts AlfaBlast is designed for applications with R404A, R507A and NH3. The refrigerant charge is lower than comparable products on the market, which will have a positive effect both on your budget and the environment. To further support your budget targets, AlfaBlast offer low electricity consumption and smart solutions for easy installation and maintenance. Standard confi guration AlfaBlast in standard confi guration is equipped with casing in galvanized steel, aluminium drip tray, air static pressure of 80 Pa (500 series) and 100 Pa (630 series), static defrost system, lateral cover panels and adjustable legs in height in order to obtain a “tailor made unit” anywhere. Optional Casing in stainless steel or aluminium, special fans for high static pressure (150Pa), different defrost systems (water, electric, hot gas) and different coil protection (cataphoresis, epoxy, painting, pre-coated fi ns). AlfaBlast ABE 502 with optional water defrost. High performance fan, static pressure 150 kPa. AB E 50 2 A 7 Fin spacing: 7, 10, 12 mm Coil size: A, B, C Fan couple: 1, 2, 3, 4 Fan diameter: 50, 63 cm E = DX, A = NH ABE 500 25 kW (DT=7K T.ev= -25¢ªC) 0 50 75 100 125 ABE 630 ABA 500 ABA 630 12 63 23 91 16 81 32 117 AlfaBlast capacity range
Open the catalog to page 1ERC00034EN 0601 All rights reserved for changes in specifi cations Application range - DX with R404A, from 12 to 91 kW (SC3 condition) - Pump with NH3, from 16 to 117 kW - Test pressure 34 bar, temperature -45° to +130°C for direct expansion – Test pressure 31 bar, temperature -50° to +100°C for direct expansion Casing - Galvanized steel (standard), stainless steel (option), aluminium (option) - Lateral panel removable (standard) - Aluminium drip tray (standard) Coil - Fin spacing: 7, 10 or 12 mm - Fin material: Aluminium - Piping: Copper or stainless steel How to contact Alfa Laval...
