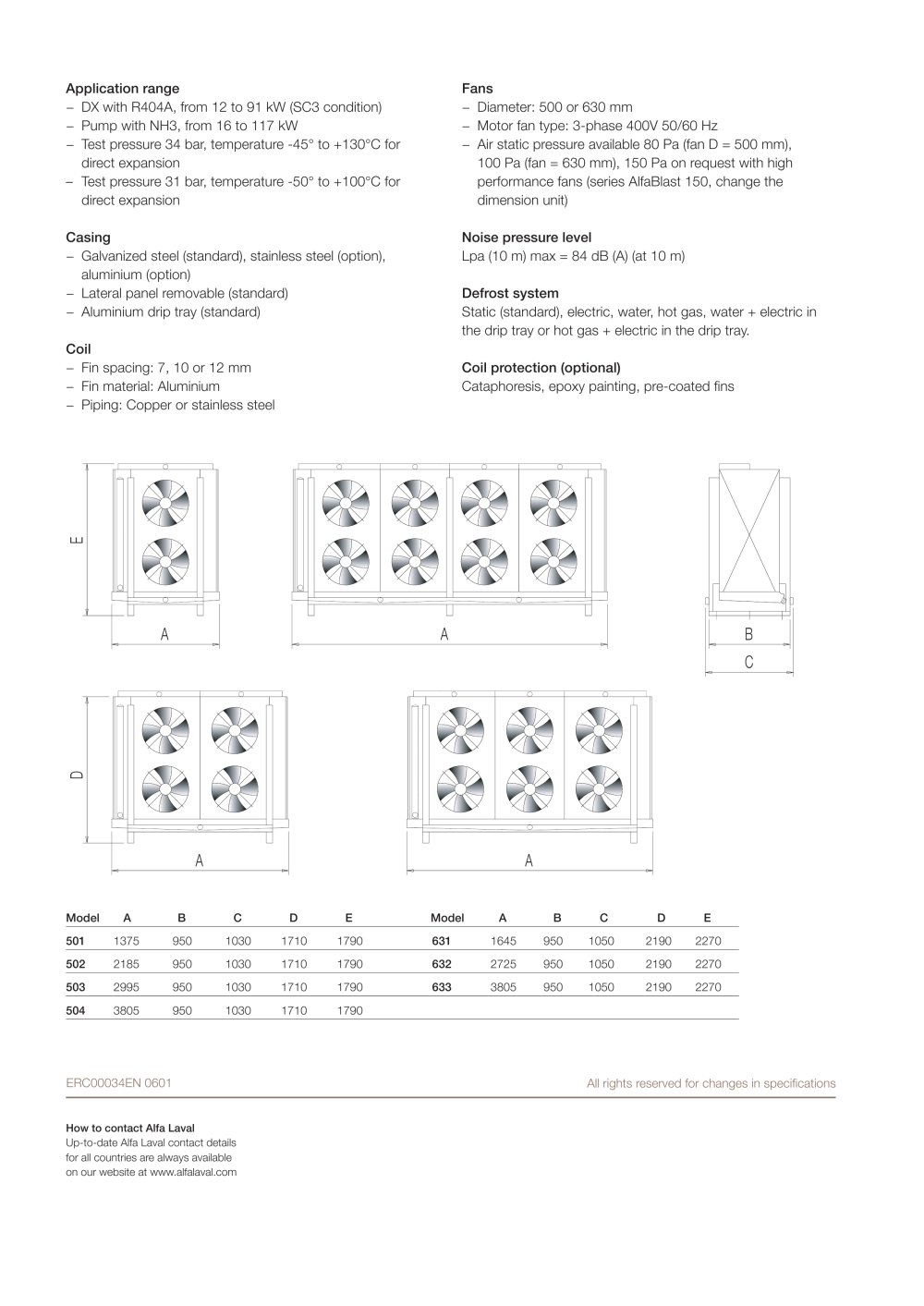

ERC00034EN 0601 All rights reserved for changes in specifi cations Application range - DX with R404A, from 12 to 91 kW (SC3 condition) - Pump with NH3, from 16 to 117 kW - Test pressure 34 bar, temperature -45° to +130°C for direct expansion – Test pressure 31 bar, temperature -50° to +100°C for direct expansion Casing - Galvanized steel (standard), stainless steel (option), aluminium (option) - Lateral panel removable (standard) - Aluminium drip tray (standard) Coil - Fin spacing: 7, 10 or 12 mm - Fin material: Aluminium - Piping: Copper or stainless steel How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com E A B A A C D A Fans - Diameter: 500 or 630 mm - Motor fan type: 3-phase 400V 50/60 Hz - Air static pressure available 80 Pa (fan D = 500 mm), 100 Pa (fan = 630 mm), 150 Pa on request with high performance fans (series AlfaBlast 150, change the dimension unit) Noise pressure level Lpa (10 m) max = 84 dB (A) (at 10 m) Defrost system Static (standard), electric, water, hot gas, water + electric in the drip tray or hot gas + electric in the drip tray. Coil protection (optional) Cataphoresis, epoxy painting, pre-coated fi ns Model A B C D E Model A B C D E 501 1375 950 1030 1710 1790 631 1645 950 1050 2190 2270 502 2185 950 1030 1710 1790 632 2725 950 1050 2190 2270 503 2995 950 1030 1710 1790 633 3805 950 1050 2190 2270 504 3805 950 1030 1710 1790
